Product Details:
|
| Product Name: | Suspended Solids Controller | Display Range: | 0.01mg/L~100g/L |
|---|---|---|---|
| Relay Control: | 2 Settable SPST Relays | Analog Current Output: | 2 Settable 0/4~20mA |
| Communication Method: | Two-wire RS485 Interface | OTA: | Default WIFI |
| Configuration Information: | Power Off Protection | Time/Data Record: | Record 14000 Historical Data |
| Protection Level: | IP66 | Shell Material: | Enhanced ABS |
| High Light: | Electroplating Wastewater Suspended Solids Controller,Digital Signal Suspended Solids Controller,ABS Suspended Solids Transmitter |
||

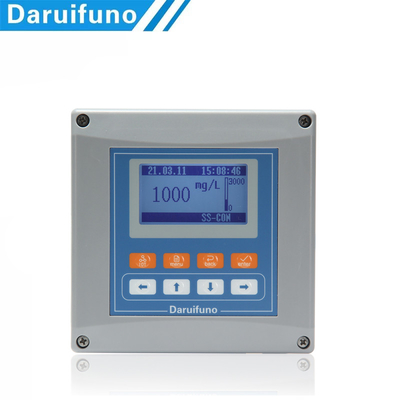

Digital Signal Output Suspended Solids Transmitter For Electroplating Wastewater
Suspended solids in water treatment refer to the solids (SS) after dehydration and drying of filter residues, which can also be interpreted as: usually refers to substances that are insoluble in water but cannot pass through the filter in water. Including clay particles, inorganic precipitates, organic precipitates, organic scale, corrosion products, etc.
Suspended solids represent the content of undissolved solid matter in water. Suspended solids are an important water quality indicator and an important parameter in the design of sewage treatment plants.
Specification:
| Model | DUC2-SS-S-A |
| Software Version | DRFN SS(sludge concentration) Analysis software V1.0 |
| Sensor Input | Compatible with all DRFN's SS(sludge concentration) Digital Sensors |
| Display Range | 0.01mg/L~100g/L |
| Resolution | 0.01mg/L |
| Relay Control | 2 settable SPST relays with a maximum load of 3A/250VAC |
| Analog Current Output | 2 settable 0/4~20mA current outputs with a maximum load of 1000Ω |
| Communication Method | Two-wire RS485 interface MODBUS RTU support JSON text data format |
| OTA |
Default WIF |
| Display Screen | 128*64 black-and-white graphic lattice LCD adjustable backlight mode adjustable display rate |
| Configuration Information | Power off protection, parameters are retained indefinitely |
| Time/Data Record | Year/month/day/hour/min/second, record 14000 historical data record interval can be set between 1~999 minutes |
| Maintenance Records | Last 100 times |
| Protection Level | IP66 |
| Operating Environment | 0～60℃,RH<95% ( no condensation) |
| Storage Environment | -20～70℃,RH<55% RH( no condensation, precision instruments) |
| Shell Material | Enhanced ABS |
| Dimension | 144*144*120 mm |
| Mounting Method | Wall mounting, pipe clamping, panel installation (hole size 138*138 mm) |
| Electrical Interface | The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm |
| Power Supply | 100～240VAC |
| Power Consumption | About 12W |
| Weight | About 800g |
Please click the catalog of RS485 SS sensor here:
Daruifuno Catalog.pdf
Brief introduction:
● Compatible with all DRFN digital suspended solids or sludge concentration sensors;
● Separately have a list of controller and sensor settings for quick and detailed parameter setting;
● The working status of the sensor can be queried, including reading the serial number;
● Support a variety of installation methods；
● Time and historical data recording function;
● 3.2-inch large LCD screen;
● User-friendly Chinese and English language interface;
● Password can be set to prevent misoperation;
● 2 SPST multi-function and settable relays;
● Two 0/4~20mA active current loop outputs;
● RS485 interface, Modbus RTU communication protocol;
● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;
● OTA download technology as a smart configuration option for the instrument;
Aplication:
◇ Wastewater treatment plant
◇ Waterworks
◇ Surface water
◇ Semiconductor
◇ Environmental water treatment
◇ Paper industry
◇ Mining
◇ Metallurgical Electronics
FAQ
Q2.Can customer's logo be added to the controller system and cover?
Of course, The boot interface and the controller shell can be changed to the customer's logo, but there is MOQ requirement.
Q3.How long is the warranty period?
The company guarantees the instrument for one year (12 months) from the date of shippment, and the consumables and wearing parts in the equipment are not covered by the warranty.
Q4. Does the SS controller have an ambient temperature alarm function?
Yes. Our SS controller can detect the temperature of the surrounding environment when the controller is used.
Q5: The SS controller with OTA function?
Yes. Our DUC2-SS-S-A SS controller Default with WIFI.
