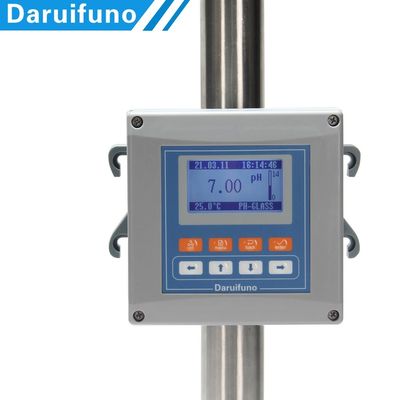

Online 2000mV PH ORP Meter Sensor Diagnosis For Aquarium Aquaculture

Online 2000mV PH ORP Meter Sensor Diagnosis For Aquarium Aquaculture
Online 2000mV PH ORP Meter Sensor Diagnosis For Aquarium Aquaculture
Online 2000mV PH ORP Meter Sensor Diagnosis For Aquarium Aquaculture Online 2000mV PH ORP Meter Sensor Diagnosis For Aquarium Aquaculture Online 2000mV PH ORP Meter Sensor Diagnosis For Aquarium Aquaculture Online 2000mV PH ORP Meter Sensor Diagnosis For Aquarium Aquaculture

Large Image :  Online 2000mV PH ORP Meter Sensor Diagnosis For Aquarium Aquaculture

Product Details:
Place of Origin: China
Brand Name: Daruifuno
Certification: CE
Model Number: APX2-G3A/G3D
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

Online 2000mV PH ORP Meter Sensor Diagnosis For Aquarium Aquaculture

Description
Product Name: PH ORP Meter PH Range: -2 ~ 16pH
ORP Range: ± 2000mV Resolution: 0.01pH 1mV 0.1℃
Temperature Range: -10~150℃ / 14~302℉ Accuracy: ± 0.02 PH/ ± 2 MV
Communication: RS485 MODBUS RTU Dimension: 144*144*120 Mm
Material: Enhanced ABS Protection Grade: IP66
Power Consumption: 7W Weight: 800g
High Light:

2000mV 16pH PH ORP Meter

,

RS485 PH ORP Meter

,

Aquaculture PH ORP Meter



Online ± 2000mV PH ORP Meter Sensor Diagnosis Function For Aquarium And Aquaculture




In the aquarium or aquaculture industry, the oxidation-reduction potential determines whether the biochemical reaction can proceed. Therefore, the oxidation-reduction potential is monitored in advance can truly reduce the production of toxic and harmful substances. Therefore, ORP is a leading indicator of water quality changes to a certain extent, and can play a very good early warning function.





Introduction Of The PH ORP Meter

  • Provide AC or DC power supply selection, both of which are wide-voltage power supply;
  • The pH/ORP instrument can transmit analog and digital signals, or connect and control other equipment through a relay;
  • The protection grade of the shell is IP66, which can isolate external pollution and corrosive gas invasion of the external environment;
  • The display screen is 3.2 inch, 128*64 black and white graphic dot matrix LCD, Chinese and English language selection;
  • The material of the housing is enhanced ABS, which makes the PH ORP controller more strong and wear-resistant;
  • The backlight working mode can be set, always open and energy-saving mode can be selected;
  • 2 settable SPST multifunction relays and 2 configurable 0/4~20mA active current loop outputs;
  • A two-wire RS485 interface, standard MODBUS RTU, supports JavaScript Object Notation text data format and HJ211.



Parameters



Product Name

PH ORP Meter

Product Model APX2-G3A/G3D
Software Version

DRFN PH Analysis software V1.0

pH Range

-2~16pH

ORP Range ± 2000mV
Temperature Range

-10~150℃ /14~302℉

Resolution

0.01pH / 1mV / 0.1℃

Accuracy

PH: ±0.02pH / ORP: ±2mV

Analog Current Output

2 settable 0/4~20mA active current loop output

Relay Control

2 settable SPST relays

Communication Method RS485 MODBUS RTU HJ211
Time History Record 14,000 historical data

Screen Display

128 * 64 LCD

Operating Environment

0~60℃, RH< 95%

Storage Environment

-20~70℃, RH < 55%

Power Supply 100-240V AC / 18~36 V DC
Power Consumption 7 W

Shell Material

Enhanced ABS

Dimension

144×144×120 mm (Hole size 138*138mm)

Weight 800g

Mounting Method

Wall installation, pipe clamp installation, panel installation

Electrical Interface

3 M12*1.5 gland, line diameter 3~6.5 mm





Online 2000mV PH ORP Meter Sensor Diagnosis For Aquarium Aquaculture 0





Advantages Of The PH ORP Meter

  1. The instrument has a temperature compensation function, which can not only compensate the temperature of the test sample through the temperature sensor but also detect the working temperature of the instrument. When the working temperature of the instrument changes, it compensates for the hardware changes due to temperature drift. This patented technology makes the test results more accurate.
  2. The pH ORP meter water quality transmitter has the diagnosis function for the sensor, if the operation is improper or the sensor is not good, the screen will display the image and the buzzer will prompt briefly.



Applications



The pH ORP meter can be used not only in the aquarium or aquaculture, but also in various industries.



Water treatment monitoring: Drinking water, surface water, water quality, groundwater, swimming pool, etc.



Industrial process monitoring and dosing control management: Chemical, petroleum, paper, food and medicine, electroplating, PCB manufacturing, etc.




Ordering Information


Model Power
APX2-G3A AC: 100 - 240V
APX2-G3D DC: 18 - 36V



If you are interested in the product PH ORP meter APX2-G3A/G3D, please contact us.
