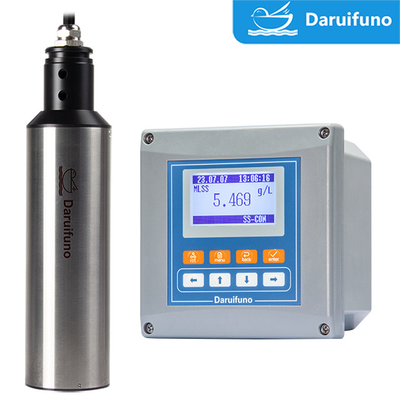

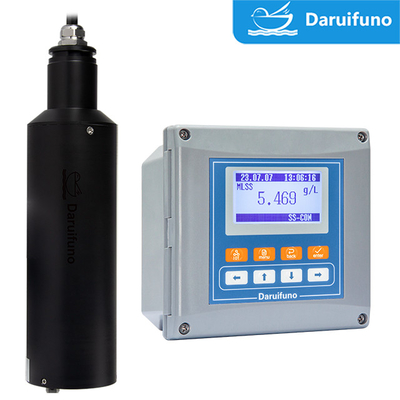

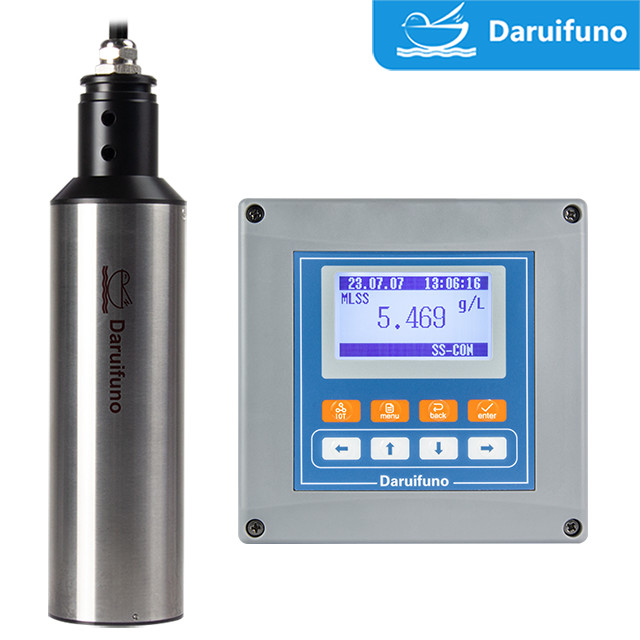

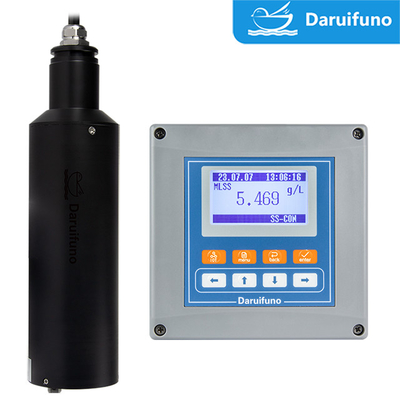

Online 100~240VAC Suspended Solids Controller For Wastewater Treatment Monitoring

Online 100~240VAC Suspended Solids Controller For Wastewater Treatment Monitoring
Online 100~240VAC Suspended Solids Controller For Wastewater Treatment Monitoring Online 100~240VAC Suspended Solids Controller For Wastewater Treatment Monitoring Online 100~240VAC Suspended Solids Controller For Wastewater Treatment Monitoring Online 100~240VAC Suspended Solids Controller For Wastewater Treatment Monitoring

Large Image :  Online 100~240VAC Suspended Solids Controller For Wastewater Treatment Monitoring

Product Details:
Place of Origin: China
Brand Name: Daruifuno
Certification: CE, ISO
Model Number: DUC2-SS-H-A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: 5-25 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 Sets per Month

Online 100~240VAC Suspended Solids Controller For Wastewater Treatment Monitoring

Description
Product Name: Suspended Solids Controller Display Range: 0.01mg/L~100g/L
Relay Control: 2 Settable SPST Relays Analog Current Output: 2 Settable 0/4~20mA
Communication Method: Two-wire RS485 Interface OTA: Without
Configuration Information: Power Off Protection Time/Data Record: Record 14000 Historical Data
Maintenance Records: Last 100 Times Protection Level: IP66
High Light:

Enhanced ABS Suspended Solid Analyzer

,

RS485 Interface Suspended Solids Controller

,

IP66 Suspended Solids Controller



Online 100~240VAC Suspended Solids Controller For Wastewater Treatment Monitoring



Principles of Suspended Solids Detection

The suspended matter in the water has a scattering effect on light, and the intensity of the scattered light has a certain proportional relationship with the concentration of the suspended matter, which can realize the quantitative analysis of the suspended matter.



Specification:

Model DUC2-SS-H-A
Software Version DRFN SS(sludge concentration) Analysis software V1.0
Sensor Input Compatible with all DRFN's SS(sludge concentration) Digital Sensors
Display Range 0.01mg/L~100g/L
Resolution 0.01mg/L
Relay Control 2 settable SPST relays with a maximum load of 3A/250VAC
Analog Current Output 2 settable 0/4~20mA current outputs with a maximum load of 1000Ω
Communication Method

Two-wire RS485 interface
MODBUS RTU
support JSON text data format

OTA ——
Display Screen

128*64 black-and-white graphic lattice LCD
adjustable backlight mode
adjustable display rate

Configuration Information Power off protection, parameters are retained indefinitely
Time/Data Record

Year/month/day/hour/min/second, record 14000 historical data
record interval can be set between 1~999 minutes

Maintenance Records Last 100 times
Protection Level IP66
Operating Environment 0~60℃,RH<95% ( no condensation)
Storage Environment -20~70℃,RH<55% RH( no condensation, precision instruments)
Shell Material Enhanced ABS
Dimension 144*144*120 mm
Mounting Method Wall mounting, pipe clamping, panel installation (hole size 138*138 mm)
Electrical Interface The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm
Power Supply 100~240VAC
Power Consumption About 12W
Weight About 800g

Please click the catalog of RS485 SS sensor here:
Daruifuno Catalog.pdf


Brief introduction:

● Compatible with all DRFN digital suspended solids or sludge concentration sensors;
● Separately have a list of controller and sensor settings for quick and detailed parameter setting;
● The working status of the sensor can be queried, including reading the serial number;
● Support a variety of installation methods;
● Time and historical data recording function;
● 3.2-inch large LCD screen;
● User-friendly Chinese and English language interface;
● Password can be set to prevent misoperation;
● 2 SPST multi-function and settable relays;
● Two 0/4~20mA active current loop outputs;
● RS485 interface, Modbus RTU communication protocol;
● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;

Online 100~240VAC Suspended Solids Controller For Wastewater Treatment Monitoring 0
Aplication:

◇ Wastewater treatment plant
◇ Waterworks
◇ Surface water
◇ Semiconductor
◇ Environmental water treatment
◇ Paper industry
◇ Mining
◇ Metallurgical Electronics


FAQ

1. What are the advantages of a digital SS meter?
A: The digital universal controller is matched with the corresponding digital sensor to realize the measurement. Compared with the traditional instrument and sensor combination, the biggest advantage is that the data transmitted from the sensor to the controller is more stable and accurate, the application is flexible, and the use is more convenient.

2. How does this suspended solids controller collect data?
A: This digital suspended solids meter is a single-parameter universal controller. Each controller will be pre-installed with a set of embedded software to correspond to different sensors. These connected sensors upload the detected data with a special encrypted communication method to ensure that the controller can collect high-precision data more stably. The controller will display the collected data on the display screen in real time, which is convenient for users to read.

3. What are the applications of digital suspended solids analyzers?
A: The digital SS analyzers are widely used in wastewater treatment plant, waterworks, surface water, semiconductor, environmental water treatment, paper industry, mining, metallurgical electronics.
