Product Details:
|
| Product Name: | Digital Chlorophyll Analyzer | Product Model: | DUC2-CHL |
|---|---|---|---|
| Software Version: | DRFN CHL Analysis Software V1.0 | Resolution: | 0.01ug/L |
| Communication Protocol: | MODBUS RTU | Protection Grade: | IP66 |
| Shell Material: | Enhanced ABS | Size: | 144*144*120mm |
| Power Supply: | 100~240V AC | Power Consumption: | 7W |
| High Light: | Digital Chlorophyll Tester,Water Quality Chlorophyll Tester,OTA Chlorophyll Fluorescence Meter |
||

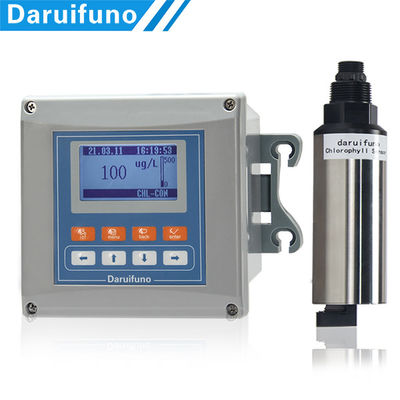

Water Quality Digital Chlorophyll controller Fluorescence method
Brief Introduction
1. Chlorophyll is the main lipid-soluble pigment for photosynthesis in plants and it plays a central role in light absorption for photosynthesis. Chlorophyll is contained in all photosynthetic organs. Also, chlorophyll a is one of the criteria used to measure the water quality and evaluate the eutrophication level of water bodies.
2. The DUC chlorophyll analyzer is a single-parameter controller used for the measurement of chlorophyll in water. Each analyzer will be pre-installed with a set of embedded software to adapt to different chlorophyll digital sensors.
3. The CHL meter is equipped witha two-wire RS485 interface, the communication protocol is MODBUS RTU, and supports JSON text data format. RS485 Modbus RTU provides a stable and reliable communication solution suitable for industrial environments, enabling different types of equipment to communicate and control each other, which is beneficial to the integration and management of industrial automation systems.
4. This CHL analyzer can simultaneously meet the needs of users for detection, control, and remote data transmission, with rich output settings.
Advantages Of The Chlorophyll Analyzer
Through the DUC2-CHL series general-purpose controller, users can query related information such as the working status and serial number of the connected sensor.
Its menu password can be set to facilitate user's data confidentiality.
The shell material of the instrument is reinforced ABS, the shell is strong, corrosion-resistant, and wear-resistant.

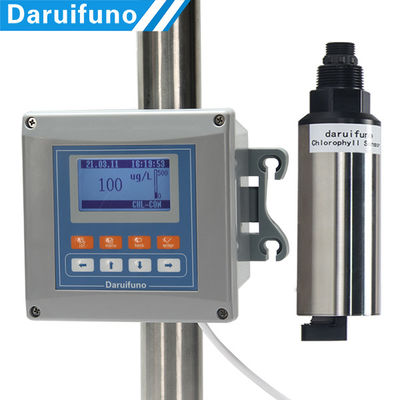

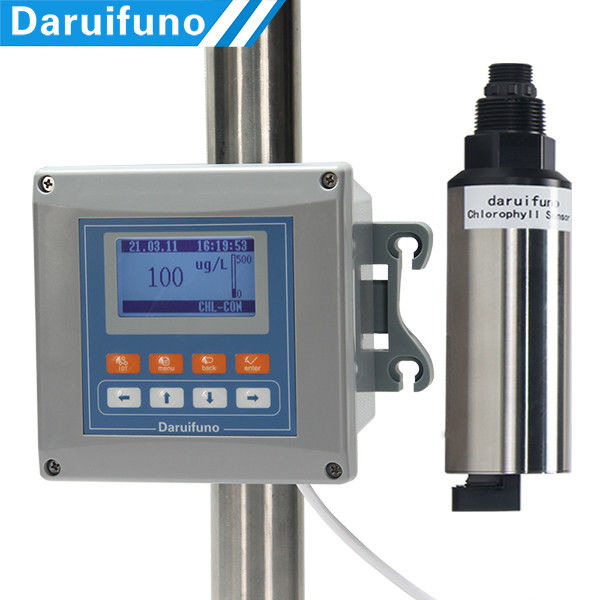

The user can choose a variety of installation methods such as wall-mounted installation, pipe clamping installation, and panel installation.
Technical Parameters
| Product Name |
Chlorophyll Analyzer |
| Product Model |
DUC2-CHL |
| Software Version |
DRFN CHL Analysis software V1.0 |
|
Display Range |
0 - 500ug or 0 - 100RFU |
|
Resolution |
0.01 ug/L |
|
Relay Control |
2 settable SPST relays max. load 3A/250VAC |
|
Analog Current Output |
2 settable 0/4~20mA active current loop output max. load 1000Ω |
|
Communication Method |
Two-wire RS485 interface; MODBUS RTU; support JSON text data format |
|
Display Screen |
128*64 LCD |
|
Time History/Data Record |
Year/month/day/hour/min/second, record 14000 historical data |
|
Protection Level |
IP66 |
|
Operating Environment |
0～60℃, relative humidity less than 95% (no condensation) |
|
Storage Environment |
-20～70℃, relative humidity less than 55% (no condensation) |
|
Shell Material |
Enhanced ABS |
|
Size |
144*144*120mm (hole size 138*138 mm) |
|
Mounting Method |
Wall mounting, pipe clamping, panel mounting |
|
Power Supply |
100-240V AC (DC18~36V) |
|
Weight |
800g |
|
Power Consumption |
7W |
Applications Of The Chlorophyll Analyzer
1. For online chlorophyll monitoring of water plant imports, drinking water sources, aquaculture, etc.
2. Online monitoring of chlorophyll in different water bodies such as surface water, landscape water, and seawater.

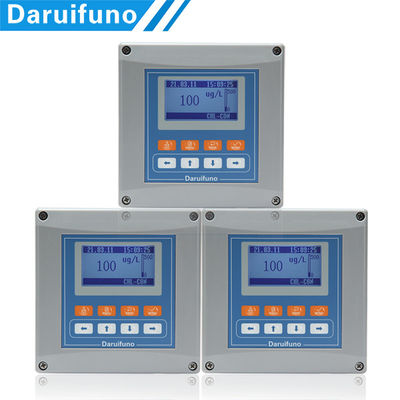

More Pictures About The Chlorophyll Analyzer
