Product Details:
Place of Origin: China
Brand Name: Daruifuno
Certification: CE
Model Number: DUC2-PAA-H
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

Modbus Water Quality Transmitter Digital Peracetic Acid Transmitter

Description
Product Name: Peracetic Acid Transmitter Product Model: DUC2-PAA-H
Software Version: DRFN Peracetic Acid Analysis Software V1.0 Display Range: 0.01mg/L~100g/L
Relay Control: 2 Settable SPST Relays Communication: RS485
Protection Grade: IP66 Current Output: Two 0/4~20mA Outputs
Operating Environment: 0~60℃ Shell Material: Enhanced ABS
Weight: 800g Power Supply: 100~240V AC Or 18~36V DC
High Light:

IP66 Water Quality Transmitter

,

IP66 Peracetic Acid Transmitter

,

Modbus Water Quality Transmitter



Digital Peracetic Acid Transmitter Disinfectant Meter Modbus For Water Treatment

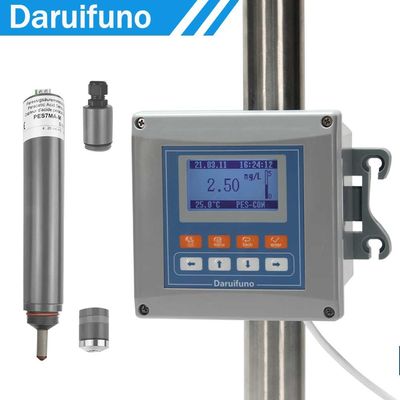

The DUC2-PAA-H digital peracetic acid transmitter is a single parameter controller used for the monitoring and control of peracetic acid in water. DRFN’s peracetic acid meter can be connected to all the digital PAA sensors made by DRFN.



Peracetic acid (PAA) is a strong oxidant, which is widely used in the disinfection of pipelines and processing equipment in the food processing industry. Sometimes it is also used to spray clean food and disinfect cooling water systems.





Features Of Peracetic Acid Transmitter



  • Protection level IP66
  • Rich output configuration, analog or digital signals

  • RS485 communication, support Modbus protocol
  • Provide wide-voltage AC or DC power supply mode
  • Support a variety of installation methods
  • Time and historical data recording functions
  • 128*64 black and white graphic dot matrix screen
  • 2 settable 0/4~20mA active current loop outputs
  • 2 settable SPST alarm relays
  • Menu password can be set



Applications Of Peracetic Acid Transmitter



Water treatment monitoring: domestic water, swimming pool, environmental protection sewage discharge monitoring



Industrial process monitoring: circulating water, cooling water, aquaculture, papermaking, food, medicine manufacturing, etc.





Product Parameters



Product Name Peracetic Acid Transmitter
Product Model

DUC2-PAA-H

Software Version

DRFN peracetic acid Analysis software V1.0

Display Range

0.01mg/L~100g/L

Resolution

0.01mg/L

Relay Control

2 settable SPST relays, the max. load 3A/250VAC

Analog Current Output

2 settable 0/4~20mA active current loop output max. load 1000Ω

Communication Method

Two-wire RS485 interface, MODBUS RTU; support JSON text data format

Display Screen

128*64 LCD, adjustable backlight mode, adjustable display rate

Time History/Data Record

Year/month/day/hour/min/second, record 14000 historical data, record interval can be set between 1~999 minutes

Maintenance Records

Last 100 times

Protection Grade

IP66

Operating Environment

0~60℃, relative humidity less than 95%

Storage Environment

-20~70℃, relative humidity less than 55%

Shell Material

Enhanced ABS

Dimensions

144*144*120mm (hole size 138*138 mm)

Mounting Method

Wall mounting, pipe clamping, panel installation

Power Supply

18~36V DC or 100~240V AC

Weight

800g

Power Consumption

7W

Electrical Interface

The back end of the instrument reserved 3 M12*1.5 gland, line diameter 3~6.5 mm



Modbus Water Quality Transmitter Digital Peracetic Acid Transmitter 0





Matching Peracetic Acid Sensors Recommendation



  • Model: PES7
  • pH range: 1~6
  • Pressure range: 0~1 bar, no pressure surges and/or fluctuations
  • Temperature range: 0~45℃
  • Response time: T90 about 3 min
  • Flow rate: about 30 l/h, low flow-dependence
  • Material: PVC-U, stainless steel 1.4571
  • Connection: M12 male
  • Integrated automatic temperature compensation



Type

Measuring range:

ppm

Resolution:

ppm

Output signal Power supply Item number
PES7H-M0c 0~200 0.1



Modbus RTU

9~30 VDC

20~56 mA

3226220
PES7N-M0c 0~2000 1 3226221
PES7L-M0c 0~2% (20000) 0.001%(10) 3226222




  • Model: P9.2
  • pH range: 1~6
  • Pressure range: 0~1 bar, no pressure surges and/or fluctuations
  • Temperature range: 0~60℃
  • Response time: T90 about 3.5 min at 10 °C, about 45s at 50 °C
  • Flow rate: about 30 l/h, low flow-dependence
  • Material: PVC-U, stainless steel 1.4571
  • Connection: M12 male
  • Integrated automatic temperature compensation



Type

Measuring range:

ppm

Resolution:

ppm

Output signal Power supply Item number
P9.2H-M0c 0~200 0.1



Modbus RTU



9~30 VDC

20~56 mA

3426130
P9.2N-M0c 0~2000 1 3426131
P9.2L-M0c

0~2 %

(20000 )

0.001 % (10) 3426132




  • Model: P10
  • pH range: 1~6
  • Pressure range: 0~1 bar, no pressure surges and/or fluctuations
  • Temperature range: 0~45℃
  • Response time: T90 about 1.5~5 min, depending on type and temperature
  • Flow rate: about 45 l/h, low flow-dependence
  • Material: PVC-U, stainless steel 1.4571
  • Connection: M12 male
  • Integrated automatic temperature compensation



Type

Measuring range:

ppm

Resolution:

ppm

Output signal Power supply Item number
P10H-M0c 0~200 0.1

Modbus RTU

9~30 VDC

20~56 mA

3426030
P10N-M0c 0~2000 1 3426031
P10L-M0c

0~2 %

(20000)

0.001 %(10) 3426032
