Product Details:
|
| Product Name: | Fluoride Analyzer | Product Model: | APF2-H3A |
|---|---|---|---|
| Measuring Principle: | Ion Selective Electrode | Fluoride Ion Range: | 0.02~20mg/L |
| Protection Grade: | IP66 | Size: | 144*144*120mm |
| Power Supply: | 100~240V AC | Weight: | 800g |
| Power Consumption: | 7W | Mounting Method: | Wall Mount, Pipe Clamping, Panel |
| High Light: | RS485 Water Quality Transmitter,240V AC Fluoride Analyzer,CE Water Quality Transmitter |
||

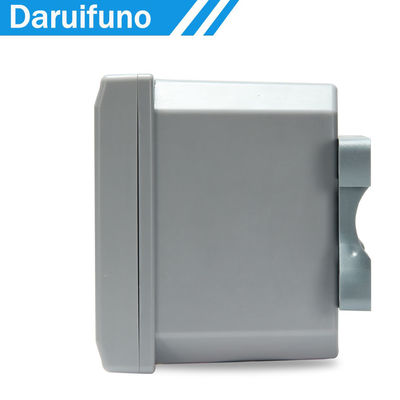

RS485 Fluoride Ion Analyzer Ion Selective Electrode For Sewage Treatment Plants
Online fluoride ion analyzer is widely used in continuous monitoring of ion concentration in water discharged from sewage treatment plants, surface water, water plants and enterprises under various working conditions, in order to control the water quality to meet the prescribed water quality standards. The instrument uses ion selective electrode method to measure the corresponding potential difference corresponding to the fluoride ion concentration in the water. There is no need to add any reagents during the detection process and no secondary pollution.This meets the needs of environmental protection.
Advantages Of The Fluoride Analyzer
Support a variety of installation methods
Enclosure protection level IP66
Clock and historical data recording functions
A two-wire RS485 interface
128*64 large screen graphic dot matrix LCD screen
Set menu password to facilitate hierarchical management
Meet monitoring, dosing control and remote transmission of data signals at the same time
Parameters Of The Fluoride Analyzer
| Product Name | Fluoride analyzer |
| Product Model |
APF2-H3A |
| Software Version |
DRFN ion electrode Analysis software V1.0 |
| Measure Range(F-) |
0.02~20mg/L |
| Measure Range(ORP) |
±2000mV |
| Measure Range(TEMP) |
-10～150℃ |
|
Resolution(F-) |
0.01 mg/L |
| Resolution(ORP) |
1mV |
| Resolution(TEMP) |
0.1℃/ 0.1℉ |
|
Accuracy |
3% of the measuring range |
|
Stability |
1% of the measuring range every 24 hours, no accumulation |
|
Repeatability |
Better than 1% of the measuring range |
|
Relay Control |
2 settable SPST relays, the max. load 3A/250VAC |
|
Analog Current Output |
2 settable 0/4~20mA active current loop output max. load 1000Ω |
|
Communication Method |
RS485, MODBUS RTU; support JSON text data format |
|
Display Screen |
128*64 LCD screen |
|
Time History/Data Record |
Year/month/day/hour/min/second, record 14000 historical data |
|
Protection Grade |
IP66 |
|
Operating Environment |
0～60℃, relative humidity less than 95% |
|
Storage Environment |
-20～70℃, relative humidity less than 55% |
|
Shell Material |
Enhanced ABS |
|
Dimensions |
144*144*120mm (hole size 138*138 mm) |
|
Mounting Method |
Wall mounting, pipe clamping, panel installation |
|
Power Supply |
100~240V AC |
|
Weight |
800g |
| Power Consumption | 7W |
