Product Details:
|
| Product Name: | Ozone Analyzer | Product Model: | ADS2-U3-OZ1.2 |
|---|---|---|---|
| Software Version: | DRFN Ozone Analysis Software V1.0 | Relay Control: | 2 Settable SPST Relays |
| Communication: | RS485 | Protection Grade: | IP66 |
| Operating Environment: | 0～60℃ | Maintenance Records: | Last 100 Times |
| Size: | 144*144*120mm | Power Supply: | 100~240V AC Or 18~36V DC |
| Weight: | 800g | Power Consumption: | 12W |
| High Light: | 11pH Water Quality Transmitter,2pH Ozone Analyzer,800g Water Quality Transmitter |
||

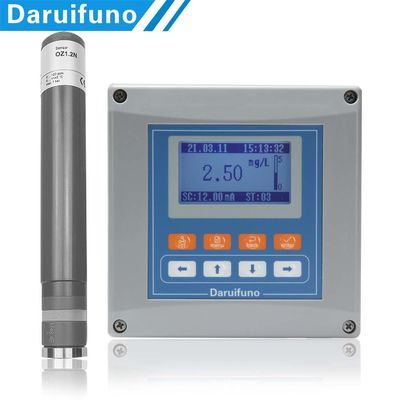

Disinfectant Ozone Analyzer 2 ~ 11pH Measuring Of Dissolved Ozone In Water 800g
As a disinfectant, ozone has certain applications in various industries. The correct monitoring of dissolved ozone in the water is very important. Daruifuno’s ozone analyzer is used for the measurement of the dissolved Ozone in water. The O3 sensor uses membrane-covered, amperometric, 2-electrode measuring system and determinates by DPD-method at the controller. The Ozone analyzer is a stable and fast response instrument.
Advantages Of The Ozone Analyzer
Applications Of The Ozone Analyzer
Water plant disinfection process and chlorination control, pipe network and secondary water supply water quality safety monitoring;
Disinfection process control for water production in food, beverage, dairy and pharmaceutical production processes;
Other occasions for ozone disinfection of water.
Parameters Of The Ozone Analyzer
| Product Name | Ozone analyzer |
| Product Model |
ADS2-U3-OZ1.2 |
| Software Version |
DRFN Ozone Analysis software V1.0 |
| Display Range |
0.00~200.00 |
|
Resolution |
0.001 |
|
Accuracy |
Better than 0.15% of the measuring range |
|
Stability |
0.05% of the measuring range every 24 hours, no accumulation |
|
Repeatability |
Better than 0.1% of the measuring range |
|
Relay Control |
2 settable SPST relays, the max. load 3A/250VAC |
|
Sensor Self-diagnosis |
screen image and buzzer prompt |
|
Analog Current Output |
2 settable 0/4~20mA active current loop output max. load 1000Ω |
|
Communication Method |
MODBUS RTU; support JSON text data format |
|
Display Screen |
128*64 LCD |
|
Time History/Data Record |
Year/month/day/hour/min/second, record 14000 historical data |
|
Protection Grade |
IP66 |
|
Operating Environment |
0～60℃, relative humidity less than 95% |
|
Storage Environment |
-20～70℃, relative humidity less than 55% |
|
Shell Material |
Enhanced ABS |
|
Dimensions |
144*144*120mm (hole size 138*138 mm) |
|
Mounting Method |
Wall mounting, pipe clamping, panel installation |
|
Power Supply |
18~36V DC or 100~240V AC |
|
Weight |
800g |
| Power Consumption | 12W |
Matching O3 Sensor Parameters
| Type |
Measuring range (ppm) |
Resolution (ppm) |
Output signal | Power supply | Item number |
| OZ1.2MA0.5 | 0.001~0.500 | 0.001 | 4~20 mA |
12~30 VDC RL 50Ω~900Ω |
3426550 |
| OZ1.2MA2 | 0.01~2.00 | 0.01 | 3426551 | ||
| OZ1.2MA5 | 0.01~5.00 | 0.01 | 3426552 | ||
| OZ1.2MA10 | 0.01~10.00 | 0.01 | 3426553 | ||
| OZ1.2MA20 | 0.01~20.00 | 0.01 | 3426554 | ||
| OZ1.2MA0.5-M12 | 0.001~0.500 | 0.001 | 4~20 mA |
12~30 VDC RL 50Ω~900Ω |
3426520 |
| OZ1.2MA2-M12 | 0.01~2.00 | 0.01 | 3426521 | ||
| OZ1.2MA5-M12 | 0.01~5.00 | 0.01 | 3426522 | ||
| OZ1.2MA10-M12 | 0.01~10.00 | 0.01 | 3426523 | ||
| OZ1.2MA20-M12 | 0.01~20.00 | 0.01 | 3426524 |
