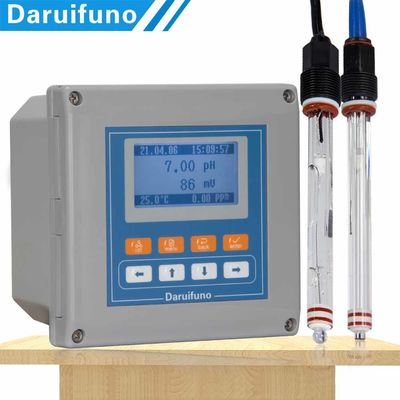

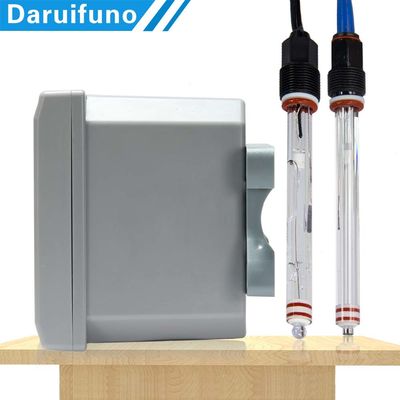

Swimming Pools RS485 PH ORP Analyzer Multi Parameters With 2 Sensors

Swimming Pools RS485 PH ORP Analyzer Multi Parameters With 2 Sensors
Swimming Pools RS485 PH ORP Analyzer Multi Parameters With 2 Sensors Swimming Pools RS485 PH ORP Analyzer Multi Parameters With 2 Sensors Swimming Pools RS485 PH ORP Analyzer Multi Parameters With 2 Sensors

Large Image :  Swimming Pools RS485 PH ORP Analyzer Multi Parameters With 2 Sensors

Product Details:
Place of Origin: China
Brand Name: Daruifuno
Certification: CE
Model Number: PD1000-A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

Swimming Pools RS485 PH ORP Analyzer Multi Parameters With 2 Sensors

Description
Product Name: Analyzer Multi Parameters Product Model: PD1000-A
PH Range: -2~16pH ORP Range: ±2000mV
Protection Grade: IP66 Dimensions: 144*144*120mm
Material: Enhanced ABS Power Supply: 100~240V AC
Power Consumption: 7W Weight: 800g
High Light:

RS485 ph orp analyzer

,

16pH ph orp meter

,

2 Sensors ph orp analyzer



RS485 PH ORP Chlorine Analyzer Multi Parameters With 2 Sensors For Swimming Pools





Product Introduction



Free residual chlorine is chlorinated and disinfected in swimming pool water. After a period of contact, there will still be an appropriate amount of chlorine remaining in the water to ensure continuous sterilization. The free residual chlorine in swimming pool water should not be too high or too low. If it is low, it will lose its ability to sterilize. If the chlorine content is too high, it means that too much chlorine will cause certain toxicity to the human body.



DRFN’s PD1000 is a multi-parameter dual-channel controller, which can be connected to a PH/T and an ORP electrode at the same time. Then the instrument will combine the detected redox potential with different PH environments to evaluate the disinfection ability in the water body.



Swimming Pools RS485 PH ORP Analyzer Multi Parameters With 2 Sensors 0

Product Advantages



  • PD1000 dual-channel multi-parameter analyzer has a variety of curve models, which can be selected to evaluate the calculation according to the actual situation to meet a variety of different needs.



  • The instrument directly tests PH, ORP and temperature, while calculating the corresponding residual chlorine value and displaying the four data on the screen.



  • The controller supports a variety of installation methods, which can be applied to more different installation environments, and the housing protection grade IP66.



  • There are clock and historical data logging functions to meet higher data management requirements.



  • 128*64 Large graphic dot matrix LCD screen with rich content in English and Chinese.



  • Menu password can be set to facilitate hierarchical management





Applications



The PD1000 dual-channel controller is widely used in swimming pools, water parks, ultrafiltration, circulating water and other occasions that need to quickly evaluate the residual chlorine environment in the water.





Technical Parameters



Product Name Dual-channel multi-parameter analyzer
Product Model PD1000-A
Software Version DRFN Multi-parameter analysis softwareV1.0
pH Sensor Glass pH sensor
ORP Sensor Redox potential sensors (platinum/gold sensors)
TEMP PT1000 or NTC10K(B)
PH Measure Range -2~16pH
ORP Measure Range ±2000mV
TEMP Measure Range -10~150℃ /14~302℉
pH Resolution 0.01pH
ORP Resolution 1mV
TEMP Resolution 0.1℃/ 0.1℉
Accuracy 0.1% of measurement range(or PH:±0.02pH /ORP:±2mV)take the larger one
Stability 0.05% of the measurement range every 24 hours, no accumulation
Repeatability Better than 0.1% of the measurement range
Sensor Self-diagnosis image displays with a short buzzer alert
Relay Control 2 configurable SPST relays with a maximum relay load of 3A/250VAC
Analog Current Output 2 settable 0/4~20mA active current loop outputs with a maximum load of 1000 Ω
Communication Method Two-wire RS485 interface, communication protocol: MODBUS RTU; support JSON text data format
Display Screen 128*64 black and white graphic dot matrix LCD display with adjustable backlight mode and adjustable display rate
Configuration Information Power failure protection with indefinite parameter retention
Time History / Data Year/month/day/hour/minute/second, 14000 historical data can be recorded, and the recording interval can be set between 1~999 minutes.
Maintenance Record Last 100 times
Protection Level IP66
Operating Environment 0~60℃, less than 95% RH(no condensation)
Storage Environment -20~70℃, less than 55% RH(no condensation)
Dimensions 144*144*120mm
Material enhanced ABS
Installation Method Wall mounting, pipe clamping, panel(hole size 138*138mm)
Electrical Interface The back end of the instrument is reserved for 3 M12*1.5 gland, wire diameter 3~6.5mm
Power Supply 100~240V AC
Power Consumption About 7W
Instrument Weight About 800g



If you are interested in our product dual-channel multi-parameter analyzer, please contact us.
