Product Details:
|
| Product Name: | Multi-parameter Water Quality Analyzer | Product Model: | MCA200 |
|---|---|---|---|
| Communication Interface: | RS485 | Communication Protocol: | MODBUS RTU |
| Working Environment: | -10～60℃ | Power Consumption: | <25W |
| Protection Grade: | IP65 | Dimensions: | 284.2 * 240 *95mm |
| Power Supply: | 100~240VAC, 50/60Hz | Net Weight: | 3kg |
| Highlight: | 240V water quality analyzer,25W water analyzer instrument,RS485 water quality analyzer |
||

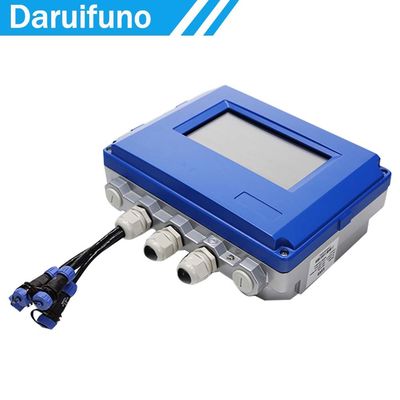

IP65 Multi-Parameter Water Quality Analyzer RS485 For Rivers And Lakes
Product Introduction
DRFN’s Multi-parameter analyzer is based on digital sensor technology. The instrument can provide up to 8 digital measurement channels to meet the requirements of 9 parameters detection. The Detection objects are PH, ORP, conductivity, salinity, TDS, DO, TU, MLSS, COD, TOC, NH4-N and so on.
The sensors that are accessed upload the detected data in a special encrypted communication method to ensure that the controller can collect high-precision data more consistently.
Whether for highly reliable in-line measurement or process control, the MCA200 water quality analyzer offers a complete solution.
Product Advantages
1. IP65 protection grade
2. Use a 7-inch IPS touch screen
3. Simple and intuitive operation
4. Use all aluminum alloy shell, strong and durable
5. Automatically queries the working status of the sensor
6. Pluggable Micro SD memory card to support data maintenance and backup
7. Integrate a built-in expansion interface to meet various requirements of output signal
8. Clock and historical data logging functions to meet higher data management requirements
9. OTA download technology to remotely upgrade software, diagnose faults, and assist in various tasks
Product Application
The multi-parameter water quality analyzer is widely used in rivers and lakes, water stations and surface water testing.
Technical Parameters
| Product Name | Multi-parameter water quality analyzer |
| Product Model | MCA200 |
| Software Version | Deruifuno Parametric Analysis Software V1.0 |
| Detection Objects |
Including but not limited to PH, ORP, conductivity, salinity, TDS, dissolved oxygen, turbidity, MLSS, transparency, COD, TOC, residual chlorine, NH4-N, Doppler, etc. |
| Sensor Type | Specify type when ordering |
| Installation Method | Wall Hanging |
| Display Screen | 7-inch color LCD, capacitive touch screen |
| Language | Chinese |
| Communication Interface | RS485 |
| Communication Protocol | MODBUS RTU |
| Time Display | Year/month/day/hour/minute/second |
| Historical Data | 50000points |
| Maintenance Records | Have |
| Configuration List | Have |
| Operation Feedback | Buzzer |
| Ambient temperature compensation/warning | Have |
| Working Environment | -10～60℃ |
| Storage Environment | -20～70℃ |
| Protection Level | IP65 |
| Dimensions | 284.2 * 240 *95mm |
| Power Supply | 100~240VAC,50/60Hz |
| Power Consumption | <25W |
| Electrical Interface | 5个M20*1.5 |
| Net weight of the instrument | About 3kg |
If you are interested in our product multi-parameter water quality analyzer, please contact us.
