Product Details:
|
Product Name: | Chlorophyll Controller | Product Model: | DUC2-CHL-H-D |
---|---|---|---|
Software Version: | DRFN CHL Analysis Software V1.0 | Resolution: | 0.01ug/L |
Communication Protocol: | MODBUS RTU | Protection Grade: | IP66 |
Operating Environment: | 0~60℃ | Storage Environment: | -20~70℃ |
Size: | 144*144*120mm | Power Supply: | 18~36V DC |
Power Consumption: | 7W | Weight: | 800g |
Highlight: | RS485 Chlorophyll Tester,7W chlorophyll meter,24V Chlorophyll Tester |

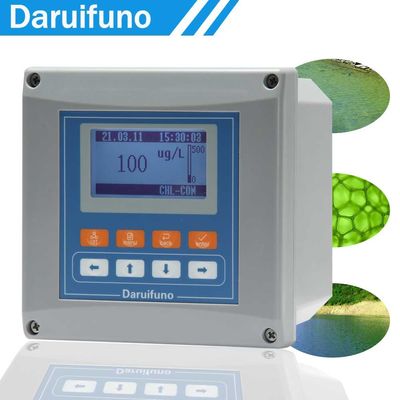

RS485 24V Digital Chlorophyll Controller For Monitoring Water Quality
Brief Introduction
1. Under natural conditions, lakes can transition from a lean to a eutrophic state, although this natural process is very slow. In contrast, eutrophication of water bodies caused by anthropogenic discharge of nutrient-laden industrial wastewater and domestic sewage can occur in a short period of time. When eutrophication occurs in water bodies, planktonic algae proliferate and form water blooms. chlorophyll a is one of the criteria used to measure the water quality and evaluate the eutrophication level of water bodies.
2. The chlorophyll controller is single-parameter. Each meter will be pre-installed with a set of embedded software to adapt to different chlorophyll digital sensors. By connecting various different types of chlorophyll digital sensors, the measurement needs of different scenarios can be realized.
3. The DUC2-CHL-H-D chlorophyll tester has a 128*64 large-screen LCD display, Chinese and English language display, rich content, to meet the different needs of users.
4. This instrument can query the working status of the sensor, including the serial number of the sensor.
5. It is equipped with a two-wire RS485 interface, the communication protocol is MODBUS RTU, and supports JSON text data format.
6. Its operating environment is 0~60℃, relative humidity is less than 95% (non-condensing); its storage environment is -20~70℃, relative humidity is less than 55% (non-condensing).
Advantages Of The Chlorophyll Controller
This DUC chlorophyll meter can stably collect the data uploaded by the sensor in a special encrypted communication method, and display the data in real-time on the display screen, which is convenient for users to read.
This digital universal controller is equipped with a list of settings for the controller and sensor, and the user can quickly and in detail master the list of configuration parameters.
Its menu password can be set to facilitate user's data confidentiality.
The shell material of the instrument is reinforced ABS, the shell is strong, corrosion-resistant, and wear-resistant. The overall size of the DUC CHL analyzer is 144*144*120mm, and the user can choose a variety of installation methods such as wall-mounted installation, pipe clamping installation, and panel installation.
Applications Of The Chlorophyll Controller
Suitable for monitoring the water quality of rivers, lakes, surface water, aquaculture waters, urban landscape rivers, and other watersheds.
Technical Parameters
Product Name |
Chlorophyll Controller |
Product Model |
DUC2-CHL-H-D |
Software Version |
DRFN CHL Analysis software V1.0 |
Display Range |
0 - 500ug or 0 - 100RFU |
Resolution |
0.01 ug/L |
Relay Control |
2 settable SPST relays max. load 3A/250VAC |
Analog Current Output |
2 settable 0/4~20mA active current loop output max. load 1000Ω |
Communication Method |
Two-wire RS485 interface; MODBUS RTU; support JSON text data format |
Display Screen |
128*64 LCD |
Time History/Data Record |
Year/month/day/hour/min/second, record 14000 historical data |
Protection Level |
IP66 |
Operating Environment |
0~60℃, relative humidity less than 95% (no condensation) |
Storage Environment |
-20~70℃, relative humidity less than 55% (no condensation) |
Shell Material |
Enhanced ABS |
Size |
144*144*120mm (hole size 138*138 mm) |
Mounting Method |
Wall mounting, pipe clamping, panel mounting |
Power Supply |
18-36V DC |
Weight |
800g |
Power Consumption |
7W |
