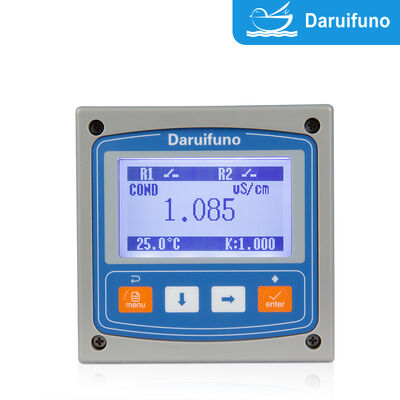

4-in-1 Multi-Parameter Conductivity Analyzer IP66 Panel Mount Conductivity Meter for Water Quality Monitoring

The AEC1-T1 T2 online conductivity analyzer is a continuous-analysis instrument built on a reliable 2-electrode measurement method for conductivity monitoring and control. One compact controller reads four water-quality parameters — conductivity, resistivity, TDS and salinity — plus temperature, switching between them at the touch of a button so operators can monitor an entire process from a single panel device.

With a wide conductivity range of 0~20 mS/cm and ultra-fine resolution down to 0.001 µS/cm, the analyzer suits everything from ultrapure water to concentrated brine. It also measures resistivity (0~18 MΩ·cm), TDS (0~10000 ppm) and salinity (0~15 ppt), each with its own fine resolution. Accuracy of ±1% FS for conductivity and ±0.5 °C for temperature keeps readings dependable, while NTC10K/PT1000 automatic or manual temperature compensation ensures the displayed value always refers to the correct 25 °C baseline.

Two SPST relays, two active 4~20mA outputs and an RS485 Modbus RTU interface make the AEC1-T1 T2 a complete measuring and control node for water treatment, desalination, food & beverage, and industrial process water applications.

1. 4-in-1 multi-parameter measurement: conductivity, resistivity, TDS and salinity in one instrument, switchable with the arrow key.
2. Wide dynamic range: 0~20 mS/cm conductivity, 0~18 MΩ·cm resistivity, 0~10000 ppm TDS and 0~15 ppt salinity cover ultrapure water to brine.
3. Ultra-fine resolution: down to 0.001 µS/cm (conductivity), 0.001 MΩ·cm, 0.001 ppm and 0.001 ppt.
4. Reliable accuracy: ±1% FS for conductivity and ±0.5 °C for temperature.
5. Automatic temperature compensation: NTC10K / PT1000, automatic or manual, with built-in compensation coefficient.
6. Complete control and output set: two SPST relays and two active 4~20mA outputs, assignable to main value, temperature, resistivity, TDS or salinity.
7. Rugged IP66 panel-mount housing: compact 100×100×120 mm design with power-failure protection that retains parameters indefinitely.

• Pure water, ultrapure water and RO/DI water monitoring
• Desalination and brine concentration control
• Boiler and cooling tower water quality management
• Food & beverage and pharmaceutical process water
• Municipal and industrial wastewater treatment
• Aquaculture, fish farming and agriculture irrigation
