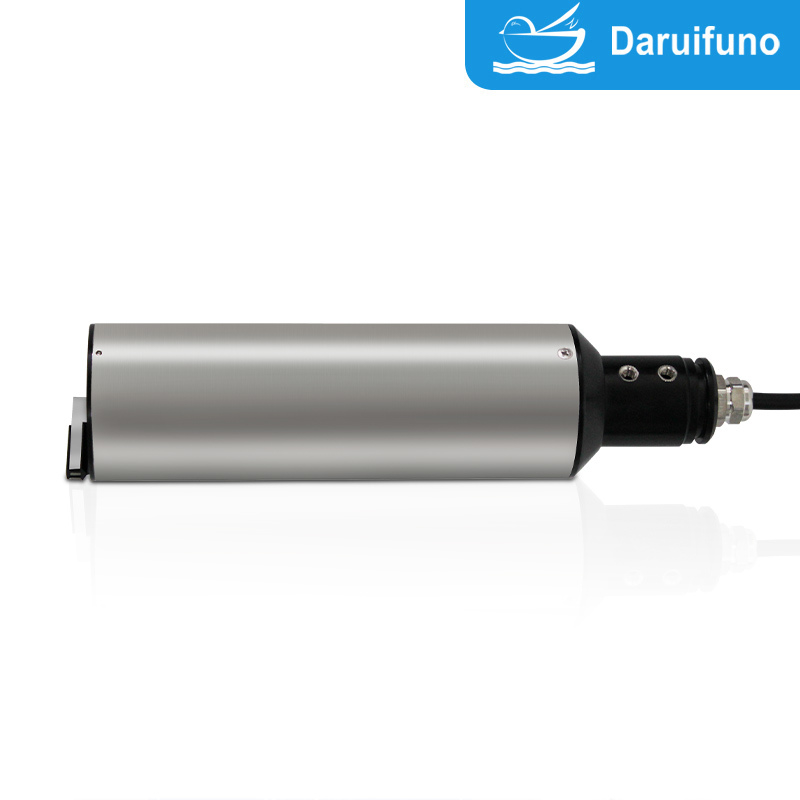

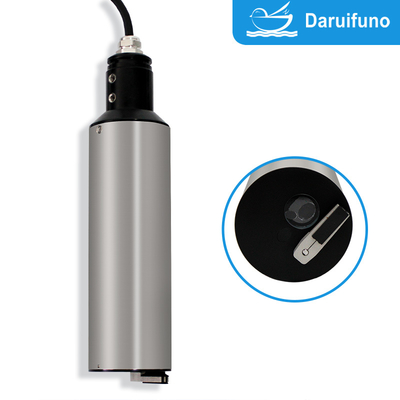

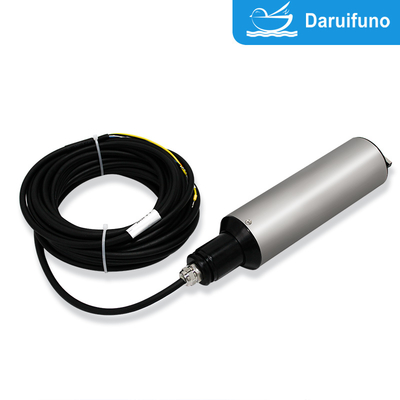

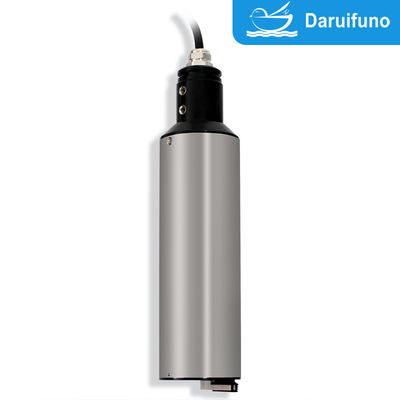

High Accuracy Digital Tubidity Electorde With Brush For Surface Water

High Accuracy Digital Tubidity Electorde With Brush For Surface Water
High Accuracy Digital Tubidity Electorde With Brush For Surface Water High Accuracy Digital Tubidity Electorde With Brush For Surface Water High Accuracy Digital Tubidity Electorde With Brush For Surface Water High Accuracy Digital Tubidity Electorde With Brush For Surface Water

Large Image :  High Accuracy Digital Tubidity Electorde With Brush For Surface Water

Product Details:
Place of Origin: China
Brand Name: Daruifuno
Certification: CE,ISO
Model Number: OPTU31
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: 450~1300USD
Packaging Details: carton
Delivery Time: 1-15 work days
Payment Terms: T/T
Supply Ability: 500pcs/month
Contact Now

High Accuracy Digital Tubidity Electorde With Brush For Surface Water

Description
Product Name: Turbidity Sensor Measuring Technology: Infrared Double Beam Scattered Light
Measuring Range: 0.01~4000NTU Resolution: ±2%
Accuracy: Better Than 5.0% Of The Measured Value Or 0.3NTU, Whichever Is Greater Communication: RS485 MODBUS-RTU
Response Time: T90＜60s Work Pressure: ≤4Bar
Operating Temp: 0~45℃ Shell Material: Standard SS 316L
Protection Grade: IP68 Cable: 10 Meters

High Accuracy Digital Tubidity Electorde With Brush For Surface Water
The Daruifuno turbidity sensor OPTU311 with self-cleaning, multi-range infrared technology provides fast, accurate, and reliable online monitoring of water quality. Designed for seamless integration into industrial control systems, it's an ideal solution for water treatment and monitoring applications.
High Accuracy Digital Tubidity Electorde With Brush For Surface Water 0
Technical Specifications
Sensor Information Infrared Turbidity Sensor
Model OPTU311 (with brush)
Measuring Technology Infrared scattering principle
Measuring Range 0.01~4000NTU
Resolution 0.01NTU
Accuracy ±2% of measured value or ±0.1NTU (whichever is greater)
Communication RS485 MODBUS-RTU
Response Time T90 < 60s
Calibration Method Multi-point calibration; factor correction
Working Pressure ≤4Bar
Sample Flow Rate No dependency
Cleaning Method Equipped with cleaning brush, automatic cleaning under water
Working Temperature 0~45°C (no freezing)
Storage Temperature 0~60°C (no freezing)
Main Material SUS 316L stainless steel (Titanium customized option)
Dimension Φ60mm*L265mm
Mounting Horizontal installation (special accessories required)
Protection Grade IP68
Power Supply 9~24 V DC
Power Consumption 1.5W
Weight 800g
Cable Standard 10 meters

High Accuracy Digital Tubidity Electorde With Brush For Surface Water 1

High Accuracy Digital Tubidity Electorde With Brush For Surface Water 2

Key Features
  • Built to Last: Robust SUS316L stainless steel construction with IP68 rating withstands harsh industrial environments.
  • Low Maintenance: Integrated self-cleaning brush prevents optical surface fouling for continuous reliable readings.
  • Stable Data Transmission: Electrically isolated interfaces resist electromagnetic interference for uninterrupted operation.
  • Easy Integration: RS485 Modbus RTU protocol enables direct connection to PLCs, DTUs, and industrial systems.
  • Versatile Applications: Ideal for wastewater treatment, waterworks, surface water monitoring, and industrial processes.

Precision Turbidity Sensor: Accurate & Reliable Water Monitoring
