High Precision And Stability RS485 Lazer Water Tubidity Electrode For Treated Water

High Precision And Stability RS485 Lazer Water Tubidity Electrode For Treated Water
High Precision And Stability RS485 Lazer Water Tubidity Electrode For Treated Water High Precision And Stability RS485 Lazer Water Tubidity Electrode For Treated Water High Precision And Stability RS485 Lazer Water Tubidity Electrode For Treated Water High Precision And Stability RS485 Lazer Water Tubidity Electrode For Treated Water High Precision And Stability RS485 Lazer Water Tubidity Electrode For Treated Water

Large Image :  High Precision And Stability RS485 Lazer Water Tubidity Electrode For Treated Water

Product Details:
Place of Origin: China
Brand Name: Daruifuno
Certification: CE, ISO
Model Number: OLTU601
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: carton
Delivery Time: 1-45 work days
Payment Terms: T/T
Supply Ability: 500pcs/month

High Precision And Stability RS485 Lazer Water Tubidity Electrode For Treated Water

Description
Product Name: Digital Laser Turbidity Sensor Measuring Technology: 660nm Laser Scattering Principle
Measuring Range: Turbidity: 0.001~100NTU Temp: 0~45℃ Resolution: Turbidity: 0.001NTU Temp: 0.5℃
Communication: RS485 MODBUS-RTU Display: OLED Screen
Operation Panel: 3 Operation Buttons Response Time: <60 Seconds
Related Measurement: Temp Measurement Calibration Method: Multi-point Calibration; Contrast Offset; Factor Offset
Work Pressure: 1~2bar Before The Injection Port Operating Temp: 0~45℃ (does Not Freeze)
Shell Material: POM+nylon+ABS+stainless Steel Protection Grade: IP65
Cable: Standard 5 Meters/10meters
High Light:

High Stability Water Tubidity Electrode

,

High Precision Water Tubidity Electrode

,

RS485 Treated Water Tubidity Electrode

High Precision and Stability RS485 lazer Water Tubidity electrode for treated water​

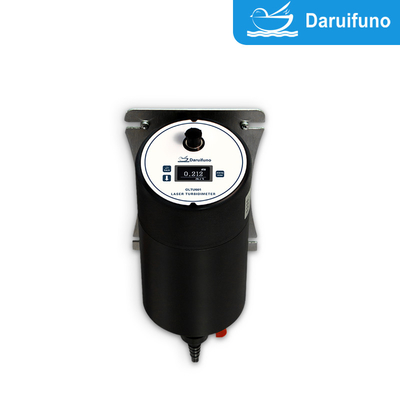

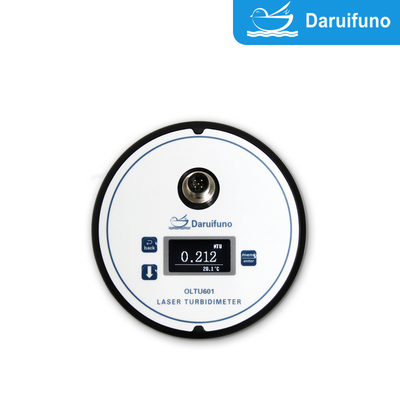

Daruifuno's laser flow-through low turbidity sensor OLTU601 with display screen is a sensor with an integrated display screen. It uses laser flow-through technology to measure turbidity or the concentration of suspended particles in liquids, and can directly display the measurement results. OLTU601 sensors typically include a built-in display that displays measurement values, units, and other relevant information, allowing users to obtain measurement results directly without the need for additional equipment or steps.



The working principle of the laser flow-through low turbidity sensor OLTU601 is based on the principle of laser light source and light scattering. The sensor illuminates a liquid sample with a laser light source, and when suspended particles or particles are present, they scatter the laser beam. A light receiver built into the sensor receives and detects scattered light, the intensity of which is proportional to the concentration of suspended particles in the liquid.



The laser flow-through low turbidity sensor OLTU601 has higher sensitivity and accuracy than traditional turbidity sensors. Due to the characteristics of the laser beam, this sensor can make accurate measurements at much lower turbidity levels. At the same time, the built-in display screen makes the measurement results intuitive and convenient for operation and data collection.

High Precision And Stability RS485 Lazer Water Tubidity Electrode For Treated Water 0

Technical Parameters

Model OLTU600 OLTU601
Measuring Technology 660nm Laser Scattering Principle
Measuring Range

Turbidity: 0.001~100NTU

Temp: 0~45℃

Resolution

Turbidity: 0.001NTU

Temp: 0.5℃

Accuracy 0.001~40NTU is ± 2% of reading or ±0.015NTU, take the larger one; 40~100NTU is ± 5% of reading
Communication RS485 MODBUS-RTU
Display LED light OLED screen
Operation Panel Via PC or controller 3 operation buttons
Response Time Step response, the initial response time<60 seconds
Related Measurement Temp measurement
Calibration Method Multi-point calibration; Contrast Offset; Factor offset
Sample Pressure Ensure that the sample pressure is 1~2bar before the injection port
Sample Flow Rate 100~700mL/min, ideal flow: 200~300mL/min
Operating Temp 0~45℃ (does not freeze)
Storage Temp -10~60℃
Shell Material POM+nylon+ABS+stainless steel
Dimension 140*140*330mm
Installation Main body wall mount
Lead interface M12
Protection Grade IP65
Power Supply 9~18V DC
Power Consumption 2.5W
Weight 2100g



User manual of OLTU60:



OLTU600 Low turbidity sensor user manual.pdf



Features

  • The flow turbidity sensor shoots the 660nm laser vertically downwards into the water. The light is scattered by suspended particles in the water sample, and the scattered light at 90°with the incident angle is received by the silicon photocell receiver immersed in the water sample, and 90° is calculated.

  • Compact miniaturized design, small installation space
  • 660nm laser light source with high resolution and fast response
  • Optional viewing window and automatic emptying system reduce maintenance effort
  • Low injection flow requirements, reducing the amount of waste generated in the measurement
  • Internal storage of calibration data, support offline calibration, on-site plug and play

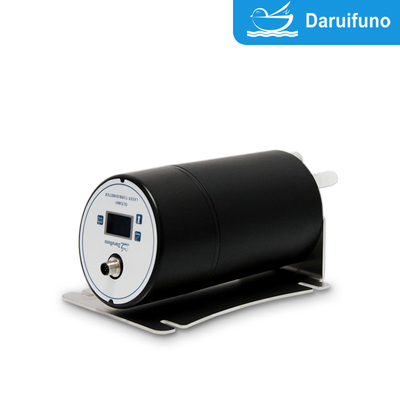

  • Flow cell type turbidity probe

High Precision And Stability RS485 Lazer Water Tubidity Electrode For Treated Water 1

Advantage

  • Digital low turbidity sensors offer numerous advantages, including:

    High Precision and Stability: Digital low turbidity sensors utilize digital technology for measurement and data processing, ensuring higher precision and stability, thus providing accurate measurement results.

  • Real-time Monitoring and Data Logging: Digital sensors can monitor turbidity levels in real-time and log data for subsequent analysis and processing. This capability is crucial for timely detection of changes and real-time control.

  • Flexibility and Programmability: Digital sensors typically offer programmability, allowing customization according to specific application needs for different measurement ranges, sensitivity levels, and sampling frequencies.

  • Strong Interference Resistance: Digital sensors often exhibit strong resistance to interference, maintaining stable performance in complex environmental conditions and reducing the impact of external interference on measurement results.

  • Ease of Integration and Use: Digital sensors usually feature standardized interfaces and communication protocols, facilitating integration with other devices and systems. Moreover, they often come with user-friendly interfaces for easy installation and operation.

  • Cost and Resource Savings: Digital sensors typically have lower maintenance costs and longer lifespans. Additionally, they can reduce downtime through remote monitoring and fault diagnosis, thus saving costs and resources.

  • In summary, digital low turbidity sensors offer significant advantages in precision, stability, real-time capabilities, flexibility, and cost-effectiveness, making them suitable for various applications requiring measurement and monitoring of turbidity levels.



High Precision And Stability RS485 Lazer Water Tubidity Electrode For Treated Water 2

Low turbidity sensors are often used in environments where high sensitivity and accuracy are required. Some of these applications include:

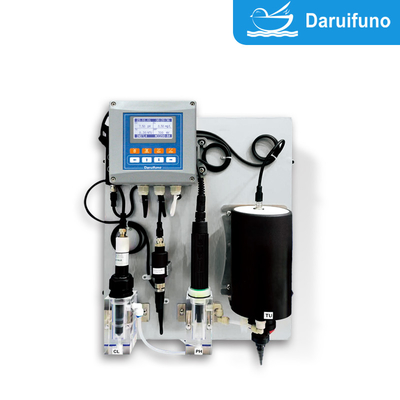

  • Drinking Water and Wastewater Treatment: In drinking water and wastewater treatment plants, low turbidity sensors are used to monitor the concentration of suspended particles and contaminants in water to ensure that water quality meets relevant standards.
  • Pharmaceutical industry: In the pharmaceutical process, low turbidity sensors are used to monitor tiny particles and impurities in pharmaceutical solutions or injections to ensure product quality and purity.
  • Winemaking industry: In the winemaking process, low turbidity sensors are used to monitor the concentration of microorganisms and suspended particles in the fermentation broth to ensure the quality and stability of wine products.
  • Food Processing: During food processing, low turbidity sensors are used to monitor the concentration of suspended particles and impurities in food to ensure food safety and quality.
  • Semiconductor Manufacturing: In the semiconductor manufacturing process, low turbidity sensors are used to monitor tiny particles and impurities in ultrapure water and chemical solutions to ensure the accuracy and stability of the chip manufacturing process.
  • Biomedical Research: In biomedical research, low turbidity sensors are used to monitor the concentration and purity of cells, proteins, and other biomolecules in biological samples to support scientific experiments and diagnostic applications.

High Precision And Stability RS485 Lazer Water Tubidity Electrode For Treated Water 3
