Flow Cell Type Lower Range Lazer Tubidity Sensor For Drinking Water

Flow Cell Type Lower Range Lazer Tubidity Sensor For Drinking Water

The Daruifuno OLTU601 is a cutting-edge laser flow-through low turbidity sensor featuring an integrated display screen for immediate data visualization. This innovative sensor precisely measures turbidity or suspended particle concentration in liquids using advanced laser technology, providing real-time results directly on its built-in display. Users benefit from the convenience of accessing measurement values, units, and other pertinent information without the need for additional external equipment.

How it Works: Precision Laser Scattering.
The OLTU601 operates on the fundamental principle of laser light scattering. A focused laser beam illuminates the liquid sample. Any suspended particles within the liquid cause the laser light to scatter. An integrated light receiver within the sensor detects the intensity of this scattered light. Crucially, the intensity of the scattered light is directly proportional to the concentration of suspended particles in the liquid, enabling highly accurate measurements.

Unmatched Sensitivity and User Convenience
Distinguishing itself from conventional turbidity sensors, the Daruifuno OLTU601 offers superior sensitivity and accuracy. Leveraging the unique properties of laser beams, this sensor achieves precise measurements even at exceptionally low turbidity levels. Furthermore, the integrated display screen enhances user experience by presenting measurement results intuitively, streamlining both operation and data collection processes.

Technical Parameters

Features

• The Daruifuno OLTU601 flow turbidity sensor employs a sophisticated laser light scattering principle for highly accurate measurements. A 660nm laser is directed vertically downwards into the water sample. As the laser interacts with suspended particles, light is scattered. The sensor's embedded silicon photocell receiver, submerged within the water, precisely captures this scattered light at a 90° angle relative to the incident laser, enabling the calculation of turbidity.

• Key Features and Benefits:
  Compact Miniaturized Design: The OLTU601 boasts a small footprint, making it ideal for installations where space is limited.

• High-Resolution Laser Technology: Utilizing a 660nm laser light source, the sensor delivers exceptional resolution and a fast response time for dynamic measurement.

• Reduced Maintenance: An optional viewing window and automatic emptying system significantly decrease maintenance requirements, optimizing operational efficiency.

• Minimized Waste: With low injection flow requirements, the sensor helps reduce the amount of waste generated during the measurement process.

• Intelligent Calibration & Portability: The OLTU601 features internal storage of calibration data, supporting offline calibration for true "plug and play" functionality on-site.

• Flow Cell Integration: This turbidity probe is designed as a flow cell type, ensuring consistent and reliable sample interaction.

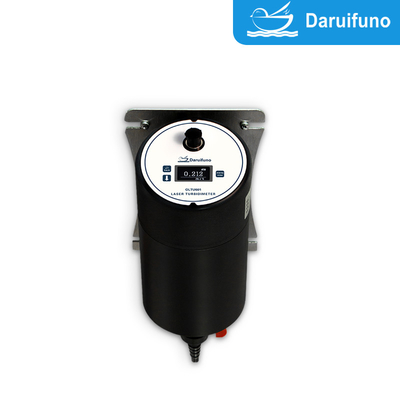

• Integrated Display & Controls (OLTU601): The OLTU601 model includes a direct display interface for showing measurement parameters, along with three intuitive buttons for straightforward calibration.

• Digital Communication (OLTU601/OLTU600): Both the OLTU601 and OLTU600 models are equipped with RS485 Modbus RTUcommunication, enabling seamless integration into various control systems.

Advantage

• Enhanced Accuracy & Reliability
  These sensors leverage digital technology for both measurement and data processing, guaranteeing superior precision and unwavering stability. This translates directly into highly accurate and dependable turbidity readings, critical for informed decision-making.

• Real-time Insights & Data Management
  Digital sensors excel at real-time monitoring, providing instantaneous updates on turbidity levels. Crucially, they also offer robust data logging capabilities, enabling comprehensive historical analysis. This continuous data stream is vital for identifying trends, detecting sudden changes, and implementing proactive control measures.

• Customizable & Adaptable Performance
  A core strength of digital sensors is their flexibility and programmability. Users can easily customize parameters like measurement ranges, sensitivity levels, and sampling frequencies to precisely match the unique requirements of their specific applications. This adaptability ensures optimal performance across diverse operational environments.

• Robustness in Challenging Environments
  Digital sensors are engineered with strong interference resistance. This means they maintain stable performance even in complex or electrically noisy environments, minimizing the impact of external disturbances on measurement accuracy and ensuring reliable operation.

• Seamless Integration & User-Friendly Operation
  Designed for modern systems, digital sensors typically feature standardized interfaces and communication protocols. This simplifies their integration with existing equipment and control systems. Furthermore, their user-friendly interfaces streamline both installation and daily operation, making them accessible even for less experienced users.

• Optimized Resource & Cost Efficiency
  Investing in digital low turbidity sensors leads to long-term savings. They generally require lower maintenance costs and boast extended lifespans. The ability to conduct remote monitoring and fault diagnosis also significantly reduces downtime, contributing to substantial overall cost and resource savings.

• In essence, digital low turbidity sensors offer a compelling package of precision, stability, real-time capabilities, adaptability, and cost-effectiveness. These attributes make them an ideal solution for a broad spectrum of applications demanding accurate turbidity measurement and continuous monitoring.

Low turbidity sensors are often used in environments where high sensitivity and accuracy are required. Some of these applications include:

• Drinking Water and Wastewater Treatment: In drinking water and wastewater treatment plants, low turbidity sensors are used to monitor the concentration of suspended particles and contaminants in water to ensure that water quality meets relevant standards.
• Pharmaceutical industry: In the pharmaceutical process, low turbidity sensors are used to monitor tiny particles and impurities in pharmaceutical solutions or injections to ensure product quality and purity.
• Winemaking industry: In the winemaking process, low turbidity sensors are used to monitor the concentration of microorganisms and suspended particles in the fermentation broth to ensure the quality and stability of wine products.
• Food Processing: During food processing, low turbidity sensors are used to monitor the concentration of suspended particles and impurities in food to ensure food safety and quality.
• Semiconductor Manufacturing: In the semiconductor manufacturing process, low turbidity sensors are used to monitor tiny particles and impurities in ultrapure water and chemical solutions to ensure the accuracy and stability of the chip manufacturing process.
• Biomedical Research: In biomedical research, low turbidity sensors are used to monitor the concentration and purity of cells, proteins, and other biomolecules in biological samples to support scientific experiments and diagnostic applications.
