Product Details:
|
Product Name: | Turbidity Controller | Display Range: | 0.001NTU~4000NTU |
---|---|---|---|
Relay Control: | 2 Settable SPST Relays | Analog Current Output: | 2 Settable 0/4~20mA |
Communication Method: | Two-wire RS485 Interface | OTA: | Default WIFI |
Configuration Information: | Power Off Protection | Time/Data Record: | Record 14000 Historical Data |
Protection Level: | IP66 | Shell Material: | Enhanced ABS |
Highlight: | Relay Control Turbidity Transmitter,Relay Control Turbidity Controller,Surface Water Turbidity Transmitter |

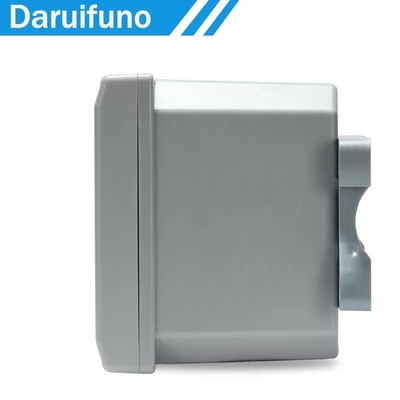

Relay Control Communication Data Collection Turbidity Transmitter For Surface Water
The turbidity online analyzer is a patented product with independent intellectual property rights specially developed for the online monitoring of drinking water quality. It has ultra-low turbidity detection limit, high-precision measurement, long-term maintenance-free equipment, water-saving work and digital output.
It supports RS485-modbus communication, and can be widely used in on-line monitoring of turbidity in tap water, secondary water supply, pipe network tip water, direct drinking water, membrane filtered water, swimming pools, and surface water.
Specification:
Model | DUC2-TU-S-A |
Software Version | DRFN TU Analysis software V1.0 |
Sensor Input | Compatible with all DRFN's TU Digital Sensors |
Display Range | 0.001NTU~4000NTU |
Resolution | 0.001 NTU |
Relay Control | 2 settable SPST relays with a maximum load of 3A/250VAC |
Analog Current Output | 2 settable 0/4~20mA current outputs with a maximum load 1000Ω |
Communication Method | Two-wire RS485 interface; MODBUS RTU; support JSON text data format |
OTA |
Default WIFI |
Display Screen |
128*64 black-and-white graphic lattice LCD |
Configuration Information | Power off protection, parameters are retained indefinitely |
Time/Data Record |
Year/month/day/hour/min/second, record 14000 historical data |
Maintenance Records | Last 100 times |
Protection Level | IP66 |
Operating Environment | 0~60℃,RH<95% ( no condensation) |
Storage Environment | -20~70℃,RH<55% ( no condensation, precision instruments) |
Shell Material | Enhanced ABS |
Dimension | 144*144*120 mm |
Mounting Method | Wall mounting, pipe clamping, panel installation (hole size 138*138 mm) |
Electrical Interface | The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm |
Power Supply | 100~240VAC |
Power Consumption | About 12W |
Weight | About 800g |
Please click the user manual of RS485 turbidity controller here:
DUC2 -HTU Turbidity controller user manual.pdf
Brief introduction:
● Compatible with all DRFN digital infrared turbidity sensors;
● Separately have a list of controller and sensor settings for quick and detailed parameter setting;
● The working status of the sensor can be queried, including reading the serial number;
● Support a variety of installation methods;
● Time and historical data recording function;
● 3.2-inch large LCD screen;
● User-friendly Chinese and English language interface;
● Password can be set to prevent misoperation;
● 2 SPST multi-function and settable relays;
● Two 0/4~20mA active current loop outputs;
● RS485 interface, Modbus RTU communication protocol;
● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;
● OTA download technology as a smart configuration option for the instrument;
Aplication:
◇ Tap water
◇ Water station
◇ Surface water
◇ Sewage
◇ Industrial water
◇ Swimming pool
FAQ
Q1. What are the advantages of a digital turbidity meter?
A: The digital universal controller is matched with the corresponding digital sensor to realize the measurement. Compared with the traditional instrument and sensor combination, the biggest advantage is that the data transmitted from the sensor to the controller is more stable and accurate, the application is flexible, and the use is more convenient.
Q2. How does this turbidity controller collect data?
A: This digital turbidity meter is a single-parameter universal controller. Each controller will be pre-installed with a set of embedded software to correspond to different sensors. These connected sensors upload the detected data with a special encrypted communication method to ensure that the controller can collect high-precision data more stably. The controller will display the collected data on the display screen in real time, which is convenient for users to read.
Q4. How long is the warranty period?
The company guarantees the instrument for one year (12 months) from the date of shippment, and the consumables and wearing parts in the equipment are not covered by the warranty.
