Product Details:
|
| Product Name: | Conductivity Controller | Conductivity Display: | 0.000µS /cm ~500mS/cm |
|---|---|---|---|
| Resistivity Display: | 0.01Ω.cm~18MΩ.cm | TDS Display: | 0.000mg/L~500g/L |
| Salinity Display: | (0.00~10.0)% | Temp Display: | -10～500℃ /14~932℉ |
| Relay Control: | 2 Settable SPST Relays | Analog Output: | 2 Settable 0/4~20mA |
| Communication: | Two-wire RS485 Interface; | Time/Data Record: | 14000 Historical Data |
| High Light: | 2 Settable SPST Relays Conductivity Controller,2 Settable SPST Relays TDS Transmitter,RS485 Conductivity Controller |
||

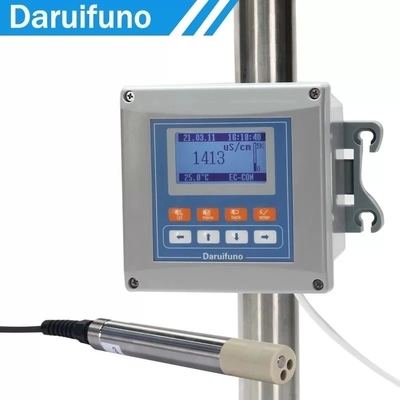

2 settable SPST relays RS485 Conductivity /TDS Transmitter For Sewage water
DRFN conductivity instrument, strong environmental adaptability, clear display, simple operation and excellent test performance make it have a high cost performance.
It can be widely used in thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food and tap water and other solutions for continuous monitoring of conductivity values.
The conductivity meter is equipped with an electrode with a constant of 1.0 or 10 to measure the conductivity of general liquids; with an electrode of 0.1 or 0.01, it can accurately measure the conductivity of pure water or ultrapure water, especially suitable for power plant boiler feed water and steam On-line continuous detection of conductivity of high-purity water such as condensed water,
Specification:
| Model | DUC2-EC-H-D | |
| Software Version | DRFN EC Analysis software V1.0 | |
| Sensor Input | Compatible with all DRFN's EC Digital Sensors | |
| Display Range | Conductivity | 0.000µS /cm ~500mS/cm |
| Resistivity | 0.01Ω.cm~18MΩ.cm | |
| TDS | 0.000mg/L~500g/L | |
| Salinity | (0.00~10.0)% | |
| Temp | -10～500℃ /14~932℉ | |
| Resolution | Conductivity | 0.001µS /cm |
| Resistivity | 0.01Ω.cm | |
| TDS | 0.001mg/L | |
| Salinity | 0.01% | |
| Temp | 0.1℃/ 0.1℉ | |
| Relay Control | 2 settable SPST relays with a maximum load of 3A/250VAC | |
| Analog Current Output | 2 settable 0/4~20mA current outputs, max. load 1000Ω | |
| Communication Method |
Two-wire RS485 interface MODBUS RTU support JSON text data format |
|
| OTA | —— | |
| Display Screen | 128*64 LCD, adjustable backlight mode, adjustable display rate | |
| Configuration Information | Power off protection, parameters are retained indefinitely | |
| Time /Data Record |
Year/month/day/hour/min/second, record 14000 historical data record interval can be set between 1~999 minutes |
|
| Maintenance Records | Last 100 times | |
| Operating Environment | 0～60℃,RH<95% ( no condensation) | |
| Storage Environment | -20～70℃,RH<55% ( no condensation, precision instruments) | |
| Shell Material | Enhanced ABS | |
| Protection Grade | IP66 | |
| Dimension | 144*144*120 mm | |
| Mounting Method | Wall mounting, pipe clamping, panel installation (hole size 138*138 mm) | |
| Electrical Interface | The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm | |
| Power Supply |
18~36VDC |
|
| Power Consumption | About 7W | |
| Weight | About 800g | |
Please click the catalog of RS485 EC controller here:
Brief introduction:
● Compatible with all DRFN conductivity sensors;
● Separately have a list of controller and sensor settings for quick and detailed parameter setting;
● The working status of the sensor can be queried, including reading the serial number;
● Support a variety of installation methods；
● Time and historical data recording function;
● 3.2-inch large LCD screen;
● User-friendly Chinese and English language interface;
● Password can be set to prevent misoperation;
● 2 SPST multi-function and settable relays;
● Two 0/4~20mA active current loop outputs;
● RS485 interface, Modbus RTU communication protocol;
● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;
Aplication:
◇ Drinking water
◇ Pure water
◇ Cooling water
◇ Sewage
◇ Industrial process water
FAQ
Q1. What are the special advantages of the pH instruments?
A: The instrument can not only compensate the temperature of the test sample by connecting the temperature sensor, but also self-check the working temperature of the instrument in real time. When the working temperature of the instrument changes, the instrument compensates the hardware change caused by the temperature drift. Make the test results more accurate, this is a patented technology.
Q2. Does the operation interface support customization?
Yes, our operation interface can be tailored to customers' needs.
Q3.Can our company's logo be added to your company's products?
Of course, we support OEM services for customers.
Q4.How long is the warranty period?
The company guarantees the instrument for one year (12 months) from the date of leaving the factory, and the consumables and wearing parts in the equipment are not covered by the warranty.
Q5. Does the conductivity controller have an ambient temperature alarm function?
Our EC controller has ambient temperature alarm function
Q6: What is your shipping method?
A: Small orders are delivered with DHL, FedEx, TNT, UPS , EMS. Large orders are recommended to ship by sea.
Q7: How long will you give me the reply?
A: We can support you 24Hours online service via email, skype, what’sapp, facebook etc within 1 hour.
