Product Details:
|
| Product Name: | Conductivity Controller | Conductivity Display: | 0.000µS /cm ~500mS/cm |
|---|---|---|---|
| Resistivity Display: | 0.01Ω.cm~18MΩ.cm | TDS Display: | 0.000mg/L~500g/L |
| Salinity Display: | (0.00~10.0)% | Temp Display: | -10～500℃ /14~932℉ |
| Relay Control: | 2 Settable SPST Relays | Analog Output: | 2 Settable 0/4~20mA |
| Communication: | Two-wire RS485 Interface; | Data Record: | 14000 Historical Data |
| High Light: | RS485 Interface Conductivity Controller,IP66 Conductivity Controller,RS485 Interface Conductivity Analyzers |
||

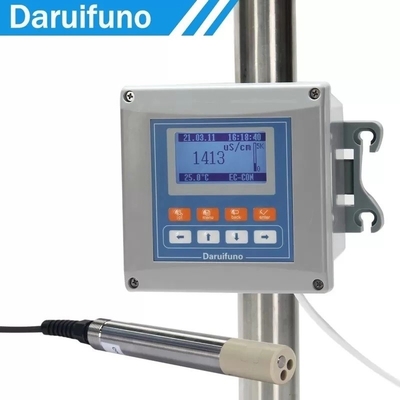

RS485 interface Conductivity Controller For water quality Monitoring
Conductivity or specific conductivity refers to how electricity is conducted in a medium. We know water is electrified, which is why we don't swim in a thunderstorm or use a hairdryer in the bathtub. However, water itself is not a good conductor of electricity. For water to be electrified, ions must exist. The conductivity of water is often measured in industrial and environmental applications as a simple way to determine the number of ions present.
The DRFN conductivity transmitter is an analytical transmitter that can monitor the conductivity level of a given solution in industrial processes, pharmaceutical production and water quality monitoring.
In contrast, resistivity transmitters monitor how strongly the solution blocks the current. Conductivity transmitters provide a reliable interface for process and moisture measurement, including a user-friendly touchscreen interface for simplified operation.
Specification:
| Model | DUC2-EC-H-A | |
| Software Version | DRFN EC Analysis software V1.0 | |
| Sensor Input | Compatible with all DRFN's EC Digital Sensors | |
| Display Range | Conductivity | 0.000µS /cm ~500mS/cm |
| Resistivity | 0.01Ω.cm~18MΩ.cm | |
| TDS | 0.000mg/L~500g/L | |
| Salinity | (0.00~10.0)% | |
| Temp | -10～500℃ /14~932℉ | |
| Resolution | Conductivity | 0.001µS /cm |
| Resistivity | 0.01Ω.cm | |
| TDS | 0.001mg/L | |
| Salinity | 0.01% | |
| Temp | 0.1℃/ 0.1℉ | |
| Relay Control | 2 settable SPST relays with a maximum load of 3A/250VAC | |
| Analog Current Output | 2 settable 0/4~20mA current outputs, max. load 1000Ω | |
| Communication Method |
Two-wire RS485 interface MODBUS RTU support JSON text data format |
|
| OTA | —— | |
| Display Screen | 128*64 LCD, adjustable backlight mode, adjustable display rate | |
| Configuration Information | Power off protection, parameters are retained indefinitely | |
| Time /Data Record |
Year/month/day/hour/min/second, record 14000 historical data record interval can be set between 1~999 minutes |
|
| Maintenance Records | Last 100 times | |
| Operating Environment | 0～60℃,RH<95% ( no condensation) | |
| Storage Environment | -20～70℃,RH<55% ( no condensation, precision instruments) | |
| Shell Material | Enhanced ABS | |
| Protection Grade | IP66 | |
| Dimension | 144*144*120 mm | |
| Mounting Method | Wall mounting, pipe clamping, panel installation (hole size 138*138 mm) | |
| Electrical Interface | The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm | |
| Power Supply | 100～240VAC | |
| Power Consumption | About 7W | |
| Weight | About 800g | |
Please click the catalog of RS485 EC controller here:
Brief introduction:
● Compatible with all DRFN conductivity sensors;
● Separately have a list of controller and sensor settings for quick and detailed parameter setting;
● The working status of the sensor can be queried, including reading the serial number;
● Support a variety of installation methods；
● Time and historical data recording function;
● 3.2-inch large LCD screen;
● User-friendly Chinese and English language interface;
● Password can be set to prevent misoperation;
● 2 SPST multi-function and settable relays;
● Two 0/4~20mA active current loop outputs;
● RS485 interface, Modbus RTU communication protocol;
● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;
● OTA download technology as a smart configuration option for the instrument.
Aplication:
◇ Drinking water
◇ Pure water
◇ Cooling water
◇ Sewage
◇ Industrial process water
FAQ
Q1. Does the operation interface support customization?
Yes, our operation interface can be tailored to customers' needs.
Q2.Can our company's logo be added to your company's products?
Of course, we support OEM services for customers.
Q3.How long is the warranty period?
The company guarantees the instrument for one year (12 months) from the date of leaving the factory, and the consumables and wearing parts in the equipment are not covered by the warranty.
