Product Details:
|
| Product Name: | Conductivity Sensor | Measuring Principle: | 4-pole Conductivity Electrode |
|---|---|---|---|
| K Constant: | K=0.5±15% | Measuring Range: | 0~200mS/cm |
| TEMP Compensation: | PT1000/NTC10K | Working Temperature: | 0~80℃ |
| Working Pressure: | 6Bar | Packaging Materials: | ABS, PPS(customized) |
| Dimensions: | Diameter 35mm Length 260mm | Installation Method: | 1"NPT Pipe Thread |
| High Light: | 4 Pole Conductivity Electrode,200mS/Cm Conductivity Electrode,4 Pole Conductivity Transmitter |
||

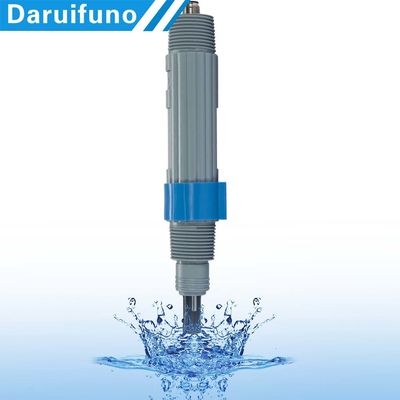

0~200mS/Cm 4-Pole Conductivity Electrode With Cleaning Interface For Pure Water
Conductivity transmitter is an analytical transmitter that can monitor the conductivity level of a given solution in industrial processes, pharmaceutical production, and water quality monitoring.
The conductivity probe is combined with the controller to form a conductivity analyzer, which can accurately measure the conductivity, resistivity and total dissolved solids of the water sample.
Specification:
| Model | ASC400 |
| Measuring Principle | 4-pole conductivity electrode |
| K Constant | K=0.5±15% |
| Measuring Range | 0~200mS/cm |
| TEMP Compensation | PT1000/NTC10K |
| Working Temperature | 0~80℃ |
| Working Pressure | 6Bar |
| Packaging Materials | ABS, PPS(customized) |
| Dimensions | Diameter 35mm length 260mm |
| Installation Method | 1"NPT pipe thread |
Please click the catalog of conductivity sensor here:
Brief introduction:
● Graphite 2-pole conductivity electrode for ASC100/200, 4-pole conductivity electrode, Ti metal detection head for ASC400, good electrical and thermal conductivity, and good chemical stability at room temperature;
● Plastic case electrode, solid structure, both ends have mounting threads, easy to install;
● Temperature compensation is optional: PT1000 or NTC10K;
● The electrode is equipped with a protective cover with its own cleaning interface, it can be quickly connected to the automatic cleaning system.
Aplication:
◇ Pure water ultra pure water
◇ Drinking water
◇ Waste water
◇ Food and beverage industry
◇ chemical process
◇ Industrial water supply
FAQ
1. What is the measuring principle of the conductivity sensor?
A: Graphite 2-pole
2. What is the advantage of conductivity sensor?
A: The conductivity sensor is the basic type, it has no temperature unit. If you want temperature unit, you can view other type of our company.
3.Can your conductivity controller measure the resistivity, TDS and salinity of water?
A:Our controller can measure the conductivity, resistivity, TDS and salinity of water. Because there is a relationship between these quantities.
4. The conductivity sensor Can be cleaned automatically?
Our conductivity controller has a self-cleaning control function, and the ASC200 and ASC400 sensor has a cleaning interface. the sensor Can be cleaned automatically. But end users need to buy a solenoid valve by themselves.
