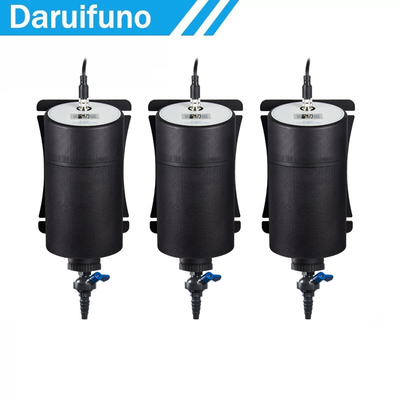

Sample Liquid Level Judge And Prompt Laser Turbidity Sensor For Water Monitoring

Sample Liquid Level Judge And Prompt Laser Turbidity Sensor For Water Monitoring
Sample Liquid Level Judge And Prompt Laser Turbidity Sensor For Water Monitoring Sample Liquid Level Judge And Prompt Laser Turbidity Sensor For Water Monitoring Sample Liquid Level Judge And Prompt Laser Turbidity Sensor For Water Monitoring Sample Liquid Level Judge And Prompt Laser Turbidity Sensor For Water Monitoring

Large Image :  Sample Liquid Level Judge And Prompt Laser Turbidity Sensor For Water Monitoring

Product Details:
Place of Origin: China
Brand Name: Daruifuno
Certification: CE, ISO
Model Number: OLTU603-0MDO1A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: 5-25 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 Sets per Month

Sample Liquid Level Judge And Prompt Laser Turbidity Sensor For Water Monitoring

Description
Product Name: Lazer Turbidity Sensor Measuring Range: 0.01~100NTU 0.1~50℃
Light Source: 660nm Laser Light Source Operating Environment: 0~45℃
Flow Rate: 100ml/min≤x≤500ml/min Calibration: Standard Solution/water Sample/zero Point Calibration
Working Instructions: OLED Window Sample Liquid Level: Judge And Prompt
Sample Emptying/Blowdown: Equipped Waterproof Level: IP66
High Light:

50NTU Lazer Turbidity sensor

,

RS485 Lazer Turbidity sensor

,

100NTU Lazer Turbidity sensor



Sample Liquid Level Judge And Prompt Laser Turbidity Sensor For Water Monitoring



The water turbidity sensor is a continuous monitoring instrument probe that is widely used in environmental protection, pharmaceutical, biochemical, food and tap water solutions for turbidity and temperature.



Specification:

Product Name
Lazer Turbidity sensor
Product Model
OLTU603-0MDO1A
Brand Name
Daruifuno
Measuring Range
0.01~100NTU 0.1~50℃
Light Source
660nm laser light source
Accuracy
0.001~40NTU is ±2% of reading or ±0.015NTU take the larger one;
40~100NTU is ±5% of reading
Operating Environment
0~45℃
Flow Rate
100ml/min≤x≤500ml/min
Calibration
Standard solution/water sample/zero point calibration

  Working Instructions



  OLED window
Sample liquid Level
Judge and prompt
Sample Emptying/Blowdown
Equipped
Sample Interface
Injection port: 1/4NPT, discharge port: 1/2NPT
Main Material
Body: ABS+Nylon
  Dimensions

  Length*Wide*Height: 140*117*214mm



Please click the user manual of RS485 turbidity sensor here:

OLTU6 Turbidity sensor.pdf



Features& Advantages

● Adopt 660nm laser light source, high resolution and fast response;
● Can be used in online transmitter, DTU, integrated system;
● Low sampling flow requirements, reducing the amount of waste liquid generated in the measurement;
● The turbidity flow cell can eliminate the interference of air bubbles to the measurement to the greatest extent;
● Optional window and automatic emptying system to reduce maintenance workload;
● Liquid level detection function can automatically determine whether the sample liquid level in the flow cell meets the measurement requirements;
● Stream-style sample track to prevent the sedimentation of suspended solids caused by low flow rates;
● RS485 digital interface, standard Modbus communication protocol, support access to standard industrial control system;
● Internal storage of calibration data, support offline calibration, plug and play on site.



Sample Liquid Level Judge And Prompt Laser Turbidity Sensor For Water Monitoring 0

Aplication:

Water treatment monitoring

Drinking water,surface water,water quality analyze,ground water,ect.



Industrial process monitoring and dosing control

Chemical,petroleum,paper,food and medicine,PCB manufacturing,etc.



FAQ

Q1. What is the measuring principle of the turbidity sensor?
A: The turbidity sensor is based on the infrared absorption scattered light method, use ISO7027 method to determine the turbidity continuously and accurately;



Q2. What is the advantage of digital turbidity sensor?
A: The digital turbidity sensor is conducive to long-distance signal transmission without serious signal attenuation. The sensor has RS485 interface, standard Modbus RTU communication protocol.





Q4.Can the measuring range of the laser turbidity sensor be customized?
The standard measuring range of DRFN lazer turbidity sensor is 0-100 range, The measuring ranges can be customized according to needs.



Q5. The sample liquid level can be judge and prompt? the sample emptying/ Blowdown equiped?

Yes. the sample liquid can be judged and prompt and the sample emptying /blowdown equipped.
