|Product Name:||Conductivity Electrode||Product Model:||ASCK001|
|Measure Principle:||2 Electrodes Conductivity Cell||Measure Range:||0.01μS/cm~20μS/cm|
|Working Temperature:||0~100℃||Working Pressure:||6 Bar|
|Packaging Materials:||Stainless Steel And Titanium||Protection Grade:||IP68|
|Temperature Compensation:||PT Or NTC||Installation Size:||1/2"NPT, 3/4"NPT Or Pipe Thread|
0.01uS / Cm Conductivity Analyzers,
6 Bar conductivity tester,
IP68 Conductivity Analyzers

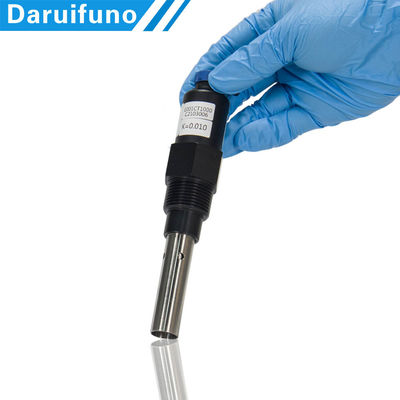

0.01μS / Cm Conductivity Electrode High Precision With Temperature Compensation IP68
Conductivity is the reciprocal of resistivity, reflecting the amount of salt in the water, and is a very important indicator of water quality.It can reflect the degree of electrolytes present in the water.
Conductivity sensors can be divided into electrode type and electromagnetic induction type according to their structure. The ASCK001 conductivity electrode is a 2-electrode probe with the measurement range of 0.01μS/cm~20μS/cm.
The conductivity electrode has two electrodes mounted on opposite sides. An alternating voltage is connected to the electrodes to generate a current in the medium. The current intensity depends on the number of anions and cations freely moving between the two electrodes in the medium. The more cations and anions in the liquid, the greater the conductivity and current.
Advantages Of The Conductivity Electrode
Application Of The Conductivity Electrode
It is widely used in human production and life and has become the power, chemical, environmental protection, food, semiconductor industry, marine research and development industries, etc. The conductivity sensor mainly monitors industrial production water, human domestic water, seawater characteristics, and electrolyte properties in batteries.
|Product Name||conductivity electrode|
|Measuring Principle||2 electrode conductivity cell|
|Temperature compensation||PT or NTC|
|Working Pressure||6 Bar|
|Materials||Stainless steel and titanium|
|Installation Size||1/2"NPT, 3/4"NPT or pipe thread|
|Connection Method||Low noise cable leads directly|
Suggestions about the electrode type
The electrode of the electrode type conductivity meter is in direct contact with the solution, so it is prone to corrosion, pollution, polarization and other problems, and the measurement range is limited to a certain extent. It is suitable for the measurement of clean media with low conductivity (usually us/cm level, the upper limit is 10ms/cm), and is often used in water quality analysis of industrial water treatment equipment and other occasions.
If you are interested in the 2-electrode conductivity electrode, please contact us, or you can continue to view other conductivity sensors with different functions.
