Product Details:
|
| Product Name: | Conductivity Analyzer | Product Model: | AEC1-C2A |
|---|---|---|---|
| Conductivity Resolution: | 0.001µS /cm | Conductivity Range: | 0.00~10.00 MS/cm |
| Relay Control: | 2 SPST Relays | Communication Method: | RS485 |
| Display Screen: | 128*64 LCD Screen | Protection Grade: | IP66 |
| Dimension: | 100*100*120 Mm | Power Supply: | 100~240V AC |
| High Light: | 100mm online conductivity meter,2 SPST digital conductivity meter,120mm online conductivity meter |
||

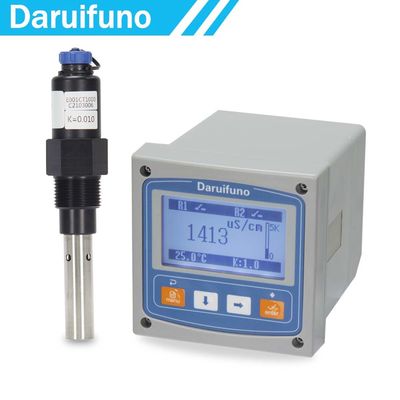

Online Conductivity Analyzer 2 SPST For Waste Water Treatment 100 * 100 * 120mm
Introduction
The online conductivity analyzer uses electrode measurement method to realize the continuously monitoring of the conductivity value in the solution. The AEC1-C2A conductivity controller can be connected with DRFN’s conductivity sensors with different cell constants to achieve different measurement ranges. This model has a conductivity measurement range of 0.00~10.00mS/cm.
Advantages Of The Online Conductivity Analyzer
2-electrode measurement method
IP66 protection grade
2 SPST multi-function relays
2 high-precision 0/4~20mA current output
A two-wire RS485 interface
128*64 large graphic dot matrix LCD screen
shortcut keys to carry out daily necessary maintenance
Applications Of The Online Conductivity Analyzer
● Power plant-water treatment;
● Water plants and sewage plants-wastewater treatment;
● Papermaking-production process/wastewater treatment;
● Chemical oil refining-production process/wastewater treatment;
● Metallurgy and mining-production process/wastewater treatment;
● Food and beverage-production process/wastewater treatment;
● Pharmaceutical industry-biological reaction and fermentation/wastewater treatment;
● Semiconductor-production process/waste water treatment/high-purity water production.
Technical Parameters
| Product Name |
Conductivity analyzer |
| Product Model |
AEC1-C2A |
| Software Version |
DRFN conductivity Analysis software V1.0 |
|
Conductivity Measuring Range |
0.00~10.00 mS/cm, full range automatic switching (The measurement range is related to the connected electrode constant) |
|
Temperature Measuring Range |
-10～150℃ /14~302℉ |
|
Resistivity Display Range |
0.01Ω.cm~18MΩ.cm |
| TDS Display Range |
0.000mg/L~500g/L |
|
Salinity Display Range |
(0.00~10.0)% |
| Conductivity Resolution |
0.001μS/cm |
|
Resistivity Resolution |
0.01Ω.cm |
|
TDS Resolution |
0.001mg/L |
|
Salinity Resolution |
0.01% |
| Temperature Resolution |
0.1℃/ 0.1℉ |
|
Accuracy |
0.1% of measuring range |
|
Stability |
0.05% of the measuring range every 24 hours, no accumulation |
|
Repeatability |
Better than 0.1% of the measuring range |
|
Sensor Diagnosis |
Screen image display |
|
Relay Control |
2 settable SPST relays max. load 3A/250VAC |
|
Analog Current Output |
2 settable 0/4~20mA active current loop output max. load 1000Ω |
|
Communication Method |
Two-wire RS485 interface, MODBUS RTU |
|

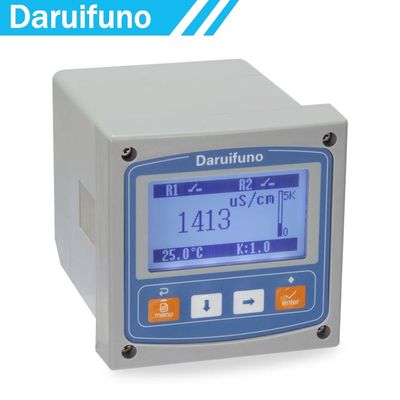

Display Screen |
128*64 LCD, adjustable backlight mode |
|
Configuration Information |
Power failure protection, indefinite retention of parameters |
|
Protection Level |
IP66 |
|
Operating Environment |
0～60℃, relative humidity less than 95% |
|
Storage Environment |
-20～70℃, relative humidity less than 55% |
|
Shell Material |
Enhanced ABS |
|

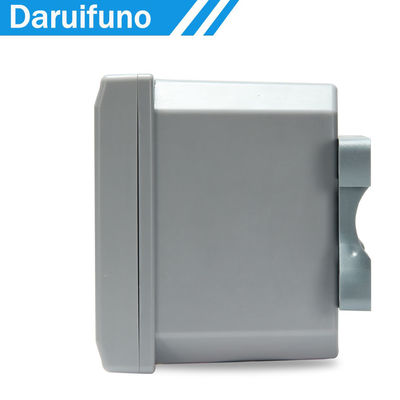

Dimensions |
100*100*120mm (hole size 92*92 mm) |
|

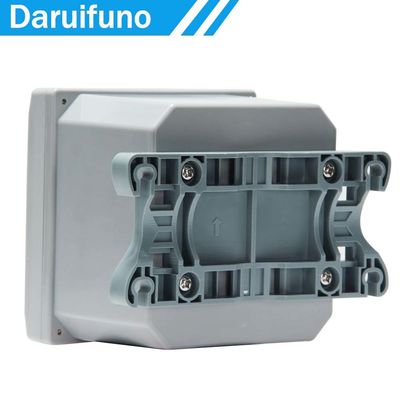

Mounting Method |
panel mounting |
|
Electrical Interface |
Three M12*1.5 Gellen heads are reserved at the back of the instrument, with a wire diameter of 3~6.5mm. |
|
Power Supply |
100~240V AC |
|
Weight |
500g |
|
Power Consumption |
3W |
Recommended Conductivity Sensors
| Model | Measuring Method | K-value | Measuring Range | Temperature Compensation |
| ASC100 | Graphite 2-pole electrode | 1 | 0~20000μS/cm | No |
| ASC200 | Graphite 2-pole electrode | 1 | 0~20000μS/cm | PT or NTC |
| ASC400 | Planar 4-pole electrode | 0.5 | 0~200000μS/cm | No |
| ASCK1 | 2-pole conductivity cell electrode | 1 | 1~2000μS/cm | PT or NTC |
| ASCK01 | 2-pole conductivity cell electrode | 0.1 | 0.1~200μS/cm | PT or NTC |
| ASCK001 | 2-pole conductivity cell electrode | 0.01 | 0.01~20μS/cm | PT or NTC |
