Product Details:
|
Product Name: | Ammonium Analyzer | Product Model: | DUC2-NH4-S-D |
---|---|---|---|
Software Version: | DRFN NH4-N Analysis Software V1.0 | Resolution NH4-N: | 0.01 Mg/L |
Communication: | MODBUS RTU | Housing Material: | Enhanced ABS |
Display Screen: | 128*64 LCD | Power Supply: | 18~36V DC |
Power Consumption: | 7W | Size: | 144*144*120mm |
Weight: | 800g | ||
Highlight: | 800g Ammonium Analyzer,OTA ammonium meter,RS485 Ammonium Analyzer |

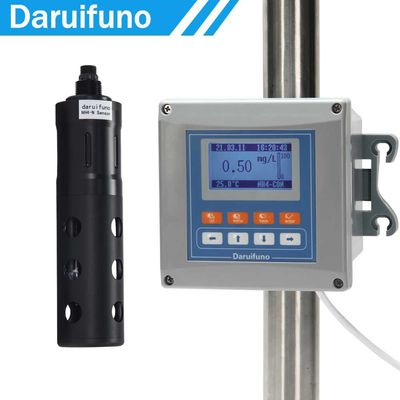

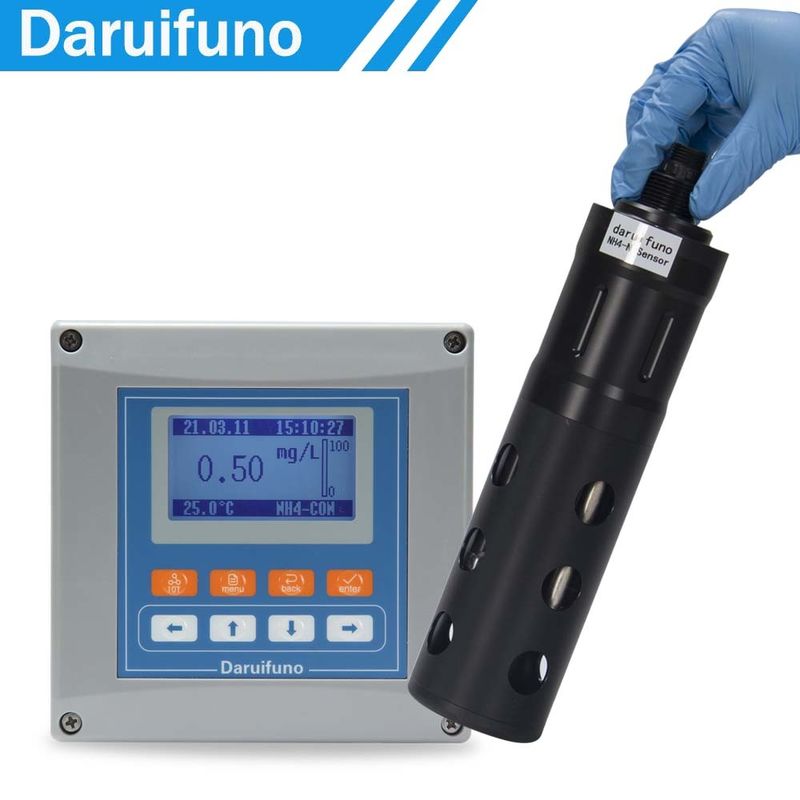

RS485 Digital Universal Ammonium Analyzer NH4-N Controller 800g
Brief Description Of The NH4-N Analyzer
The amount of nitrogen compounds in the water can be used as an indicator of the degree of pollution of the water body by nitrogen-containing organic matter. Ammonia nitrogen in water refers to nitrogen in the form of free ammonia and ionic ammonia. When the content of ammonia nitrogen is high, it is toxic to fish and harms the human body to varying degrees. The source of ammonia nitrogen in water is mainly the product of the decomposition of nitrogenous organic matter in domestic sewage by the action of microorganisms, certain industrial wastewater, and farmland drainage. Therefore, the amount of ammonia nitrogen in water has an important impact on humans. The determination of various forms of nitrogen compounds in water helps to evaluate the degree of pollution and the degree of "self-purification" in water bodies. Therefore, the determination of ammonia nitrogen in water is of great significance;
The DUC2-NH4-S-D can stably collect the data uploaded by the sensor in a special encrypted communication method, and display the data in real-time on the display screen, which is convenient for users to read;
2 high-precision 0/4~20mA current outputs with a maximum load of 1000 ohms;
The water quality transmitter has a two-wire RS485 interface, the communication protocol is MODBUS RTU, and supports JSON text data format;
Its operating environment of the ammonium analyzer is 0~60℃, relative humidity is less than 95% (non-condensing); its storage environment is -20~70℃, relative humidity is less than 55% (non-condensing).
Product Feature Of The NH4-N Analyzer
This ammonium analyzer is equipped with RS485 Modbus RTU, RS485 Modbus RTU provides a stable and reliable communication solution suitable for industrial environments, enabling different types of equipment to communicate and control each other, which is beneficial to the integration and management of industrial automation systems.
RS485 allows multiple devices to be connected to the same bus and perform data transmission and control through serial communication protocols, making the integration between devices simpler and more flexible.
RS485 uses differential signal transmission, which can resist electromagnetic interference in industrial environments and ensure stable data transmission.
RS485 can support relatively long communication distances, allowing devices to be distributed in distant locations while maintaining reliable communication.
Modbus RTU is a widely used communication protocol. Its standardization allows devices from different manufacturers to communicate with each other, increasing the interoperability and compatibility of the devices.
The housing protection grade of the ammonium analyzer is IP66, which can effectively isolate the pollution and corrosive gas from the external environment;
Menu password can be set to facilitate user's data confidentiality;
Clock and historical data recording function, which can record 14,000 historical data, and the recording interval can be set between 1 and 999 minutes;
128*64 large-screen LCD display, Chinese and English language display, rich content, to meet the different needs of users;
DUC series ammonium analyzers can meet a variety of installation methods, such as wall-mounted installation, pipe clamp installation, panel installation, and provide accessories required for installation.
Applications Of The NH4-N Analyzer
Groundwater, surface water, domestic sewage, industrial wastewater.
Technical Parameters
Product Name |
Ammonium analyzer |
Product Model |
DUC2-NH4-S-D |
Software Version |
DRFN NH4-N analysis software V1.0 |
Display Range(NH4-N) |
0-100 mg/L |
Display Range(pH) | 0-14 |
Resolution(NH4-N) |
0.01 mg/L |
Resolution(pH) | 0.01pH |
Relay Control |
2 settable SPST relays max. load 3A/250VAC |
Analog cCurrent Output |
2 settable 0/4~20mA active current loop output max. load 1000Ω |
Communication mMethod |
2 wire RS485 interface; MODBUS RTU; support JSON text data format |
Display Screen |
128*64 LCD |
Time History/Data Record |
Year/month/day/hour/min/second, record 14000 historical data |
Protection Level |
IP66 |
Operating Environment |
0~60℃, relative humidity less than 95% (no condensation) |
Storage Environment |
-20~70℃, relative humidity less than 55% (no condensation) |

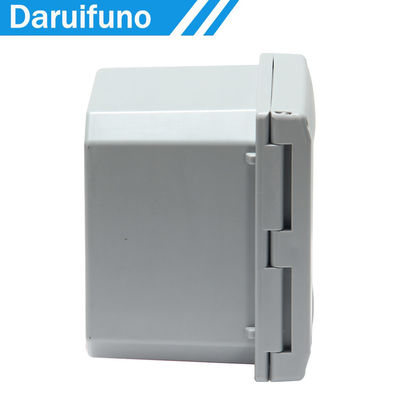

Shell Material |
Enhanced ABS |
Size |
144*144*120mm |

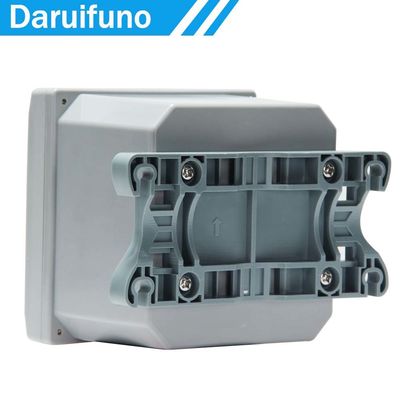

Mounting Method |
Wall mounting, pipe clamping, panel mounting |
Power Supply |
18-36V DC |
Weight |
800g |
Power Consumption |
7W |
