Product Details:
|
Product Name: | Ammonium Analyzer | Product Model: | DUC2-NH4-H-A |
---|---|---|---|
Software Version: | DRFN NH4-N Analysis Software V1.0 | Resolution NH4-N: | 0.01 Mg/L |
Resolution PH: | 0.01pH | Communication Protocol: | MODBUS RTU |
Operating Temperature: | 0~60℃ | Protection Grade: | IP66 |
Size: | 144*144*120mm | Power Supply: | 100~240V AC |
Power Consumption: | 7W | Weight: | 800g |
Highlight: | 240V AC Ammonium Analyzer,RS485 ammonia test meter,7W Ammonium Analyzer |
RS485 Ammonium Analyzer NH4 - N Digital Universal Water Quality Transmitter
Brief Description Of The NH4-N Analyzer
1. Water pollution will seriously restrict the rapid development of the economy and society. As one of the main pollution factors of water pollution, ammonia nitrogen mainly comes from domestic sewage, coking wastewater, farmland drainage, synthetic ammonia fertilizer plant wastewater, and aquaculture water. Because the ammonia-containing organic matter is affected by microorganisms, a large amount of waste will be generated. In addition to the excess feed and a large amount of excrement for fish, shrimp, etc., when people irrigate the farmland, excessive fertilization will seriously affect the ammonia nitrogen content in the water quality. The analysis of the ammonia nitrogen content in the water body can determine the degree of water pollution and control the water quality in the best state, which is of great significance to environmental governance.
2. The DUC2-NH4-H-A is a single parameter controller, each controller, will be pre-installed with a set of embedded software to adapt to different NH4-N digital sensors.
3. Two high-precision 0/4~20mA current outputs with a maximum load of 1000 ohms;
4. Two settable SPST multifunctional relays with a maximum load of 3A/250V AC;
5. The enclosure protection grade of the ammonium analyzer is IP66, which can effectively isolate the pollution and corrosive gas from the external environment;
6. The water quality transmitter has a two-wire RS485 interface, the communication protocol is MODBUS RTU, and supports JSON text data format;

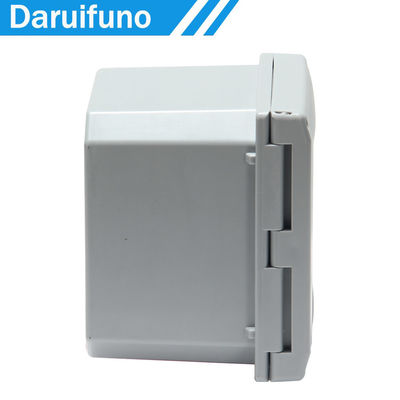

7. The shell material of the NH4-N analyzer is enhanced ABS, its overall size is 144*144*120mm;
8. Its operating environment of the ammonium nitrogen analyzer is 0~60℃, relative humidity is less than 95% (non-condensing); its storage environment is -20~70℃, relative humidity is less than 55% (non-condensing).
Product Feature Of The NH4-N Analyzer
Menu password can be set to facilitate user's data confidentiality;
Clock and historical data recording function, which can record 14,000 historical data, and the recording interval can be set between 1 and 999 minutes;
3.2-inch display screen and a 128*64 black and white graphic dot matrix LCD liquid crystal display, with reasonable interface settings and simple operation;
The connected sensors upload the detected data in a special encrypted communication method to ensure that the DUC analyzer can collect high-precision data in a more stable manner.
DUC series ammonium analyzers can meet a variety of installation methods, such as wall-mounted installation, pipe clamp installation, panel installation, and provide accessories required for installation.
Applications Of The NH4-N Analyzer
Groundwater, surface water, domestic sewage, industrial wastewater.
Technical Parameters
Product name |
Ammonium analyzer |
Product model |
DUC2-NH4-H-A |
Software version |
DRFN NH4-N analysis software V1.0 |
Display range(NH4-N) |
0-100 mg/L |
Display range(pH) | 0-14 |
Resolution(NH4-N) |
0.01 mg/L |
Resolution(pH) | 0.01pH |
Relay control |
2 settable SPST relays max. load 3A/250VAC |
Analog current output |
2 settable 0/4~20mA active current loop output max. load 1000Ω |
Communication method |
Two-wire RS485 interface; MODBUS RTU; support JSON text data format |
Display screen |
128*64 LCD |
Time history/data record |
Year/month/day/hour/min/second, record 14000 historical data |
Protection level |
IP66 |
Operating environment |
0~60℃, relative humidity less than 95% (no condensation) |
Storage environment |
-20~70℃, relative humidity less than 55% (no condensation) |
Shell material |
Enhanced ABS |
Size |
144*144*120mm |
Mounting method |
Wall mounting, pipe clamping, panel mounting |
Power supply |
100-240V AC |
Weight |
800g |
Power consumption |
7W |
