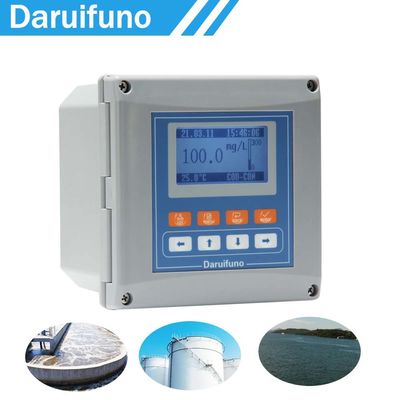

WiFi Online Chemical Oxygen Demand Meter For Wastewater Sewage Treatment

WiFi Online COD Controller For Wastewater And Sewage Treatment

Brief Introduction

• COD (chemical oxygen demand) is often used as an index to measure the amount of organic matter in the water. The greater the COD, the more serious the pollution of the water body by organic matter. Generally, the COD value of clean drinking water is a few to ten mg/L;

• The DUC2-COD-S-A is a universal controller specially designed for the DRFN digital series of COD sensors and is compatible with all digital COD sensors of DRFN;

• The COD controller can query the working status of the sensor, including the serial number of the sensor;

• 2 high-precision 0/4~20mA current outputs with a maximum load of 1000 ohms;

• 2 settable SPST multifunctional relays with a maximum load of 3A/250V AC;

• The enclosure protection grade is IP66, can effectively isolate the pollution and corrosive gas from the external environment;

• The COD instrument has a two-wire RS485 interface, the communication protocol is MODBUS RTU, and supports JSON text data format;

• The shell material of the cod analyzer is enhanced ABS, its overall size is 144*144*120mm.

Advantages Of The COD Controller

• This controller is equipped with OTA download technology, using wifi; GSM; CDMA, and other wireless technologies to realize remote software upgrades, fault diagnosis, and assistance in instrument parameter configuration for customers. It not only reduces the workload of on-site service of the instrument but also minimizes the time that users wait for service.

• Menu password can be set to facilitate user's data confidentiality;

• Clock and historical data recording function, which can record 14,000 historical data, and the recording interval can be set between 1 and 999 minutes.

• 3.2-inch display screen and a 128*64 black and white graphic dot matrix LCD liquid crystal display, with reasonable interface settings and simple operation;

• The COD controller has a power-off protection configuration, and the parameters can be kept indefinitely;

• The display backlight of this instrument provides a choice of always-on and energy-saving modes, which users can set according to their needs;

• The connected sensors upload the detected data in a special encrypted communication method to ensure that the DUC controller can collect high-precision data in a more stable manner.

• DUC series COD analyzer can meet a variety of installation methods, such as wall-mounted installation, pipe clamp installation, panel installation, and provide accessories required for installation.

Applications Of The COD Controller

River water, surface water, process water, sewage treatment plant, industrial wastewater, drinking water.
