Product Details:
|
Product Name: | Turbidity Meter | Product Model: | DUC2-HTU-S-D |
---|---|---|---|
Software Version: | DRFN TU Analysis Software V1.0 | Turbidity Display Range: | 0.001NTU~4000NTU |
Turbidity Resolution: | 0.001 NTU | Operating Environment: | 0~60℃ |
Protection Grade: | IP66 | Size: | 144*144*120mm |
Power Supply: | 18~36V DC | ||
Highlight: | OTA Turbidity Analyzers,36V DC Turbidity Meter,IP66 Turbidity Analyzers |

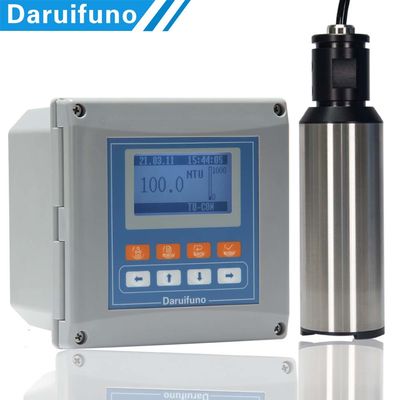

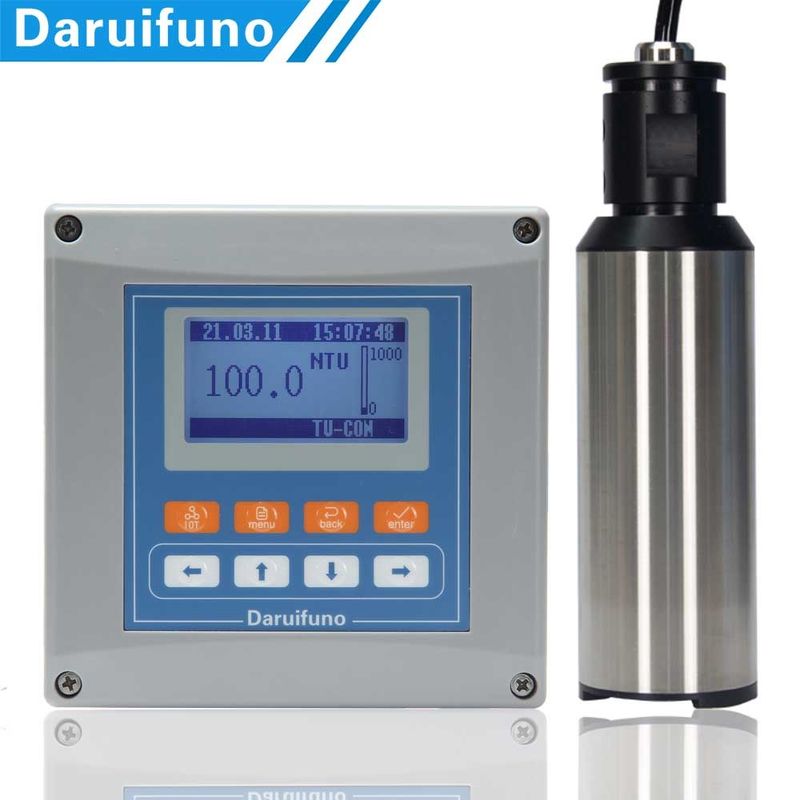

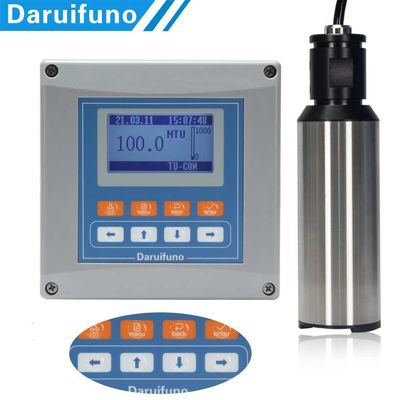

Digital Probe Type Turbidity Meter For Water Turbidity Measurement
Brief Introduction
Turbidity is one of the indicators of the performance of drinking water clarity, it is also a reflection of the amount of microorganisms and organic matter content in drinking water-related indicators.
The universal digital turbidity meter is designed specifically for the DRFN digital series of turbidity sensors, compatible with all of DRFN's turbidity sensors.
The connected sensors upload the detected data in a special encrypted communication method to ensure that the DUC controller can collect high-precision data in a more stable manner.
The turbidity meter has 2 settable multi-function SPST relays and 2 high-precision 0/4~20mA current outputs. The operating temperature of the controller is 0~60℃.
Configured with with RS485 Modbus RTU, RS485 Modbus RTU provides a stable and reliable communication solution suitable for industrial environments, enabling different types of equipment to communicate and control each other, which is beneficial to the integration and management of industrial automation systems.
RS485 allows multiple devices to be connected to the same bus and perform data transmission and control through serial communication protocols, making the integration between devices simpler and more flexible.
RS485 uses differential signal transmission, which can resist electromagnetic interference in industrial environments and ensure stable data transmission.
RS485 can support relatively long communication distances, allowing devices to be distributed in distant locations while maintaining reliable communication.
Modbus RTU is a widely used communication protocol. Its standardization allows devices from different manufacturers to communicate with each other, increasing the interoperability and compatibility of the devices.
The protective grade of the DUC water turbidity meter is IP66, which can effectively isolate the pollution of the external environment and the invasion of the corrosive gas. Rich output configurations are available to meet the different detection needs of many applications.
Advantages Of The Turbidity Meter
There are clock and historical data recording functions to meet higher data management requirements. The DUC turbidity analyzer can record 14000 historical data, record interval can be set between 1~999 minutes. The meter has power-off protection, parameters are retained indefinitely.
The meter has a 3.2-inch display screen, using a 128*64 LCD screen, the backlight provides light and energy-saving mode to select. The language of it is Chinese or English.
Rich output to meet monitoring, control, and data remote transmission at the same time.
The DUC universal turbidity meter can accommodate a wide range of mounting options and can also be supplied with the necessary mounting accessories for installation.
Applications Of The Turbidity Meter
Surface water, drinking water quality, municipal network water quality monitoring, industrial process water quality monitoring, wastewater treatment plant turbidity measurement, etc.
Technical Parameters
Product Name |
Turbidity Meter |
Product Model |
DUC2-HTU-S-D |
Software Version |
DRFN TU Analysis software V1.0 |
Turbidity Display Range |
0.001NTU~4000NTU |
Turbidity Resolution |
0.001NTU |
Relay Control |
2 settable SPST relays max. load 3A/250VAC |
Analog Current Output |
2 settable 0/4~20mA active current loop output max. load 1000Ω |
Communication Method |
MODBUS RTU; support JSON text data format |
Display Screen |
128*64 LCD, adjustable backlight mode |
Time History/Data Record |
Year/month/day/hour/min/second, record 14000 historical data |
Protection Level |
IP66 |
Operating Environment |
0~60℃, relative humidity less than 95% |
Storage Environment |
-20~70℃, relative humidity less than 55% |
Shell Material |
Enhanced ABS |
Size |
144*144*120mm (hole size 138*138 mm) |
Mounting Method |
Wall mounting, pipe clamping, panel mounting |
Power Supply |
18~36V DC |
Weight |
800g |
Power Consumption |
12W |
Cleaning System | max. 24W(laser circulation sensor optional item) |
