Product Details:
|
| Product Name: | Turbidity Tester | Product Model: | DUC2-LTU-S-D |
|---|---|---|---|
| OTA: | Default WIFI | Software Version: | DRFN TU Analysis Software V1.0 |
| Turbidity Display Range: | 0.001NTU~4000NTU | Turbidity Resolution: | 0.001 NTU |
| Operating Environment: | 0~60℃ | Protection Grade: | IP66 |
| Size: | 144*144*120mm | Power Supply: | 18~36V DC |
| High Light: | WiFi Turbidity Tester,144mm turbidity meter,120mm Turbidity Tester |
||

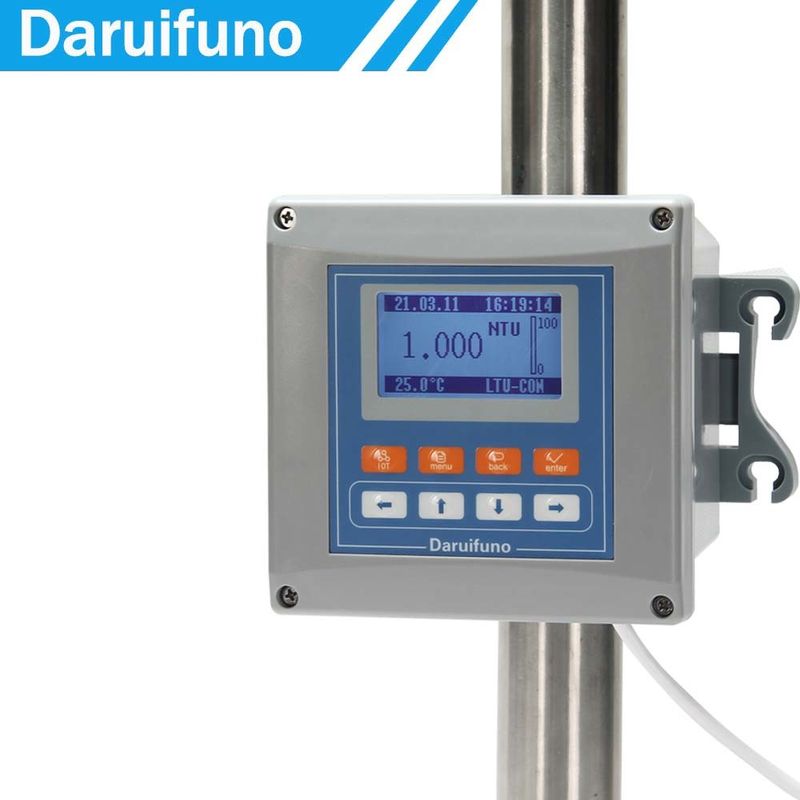

Digital Circulation Turbidity Tester For Drinking Water 144 * 144 * 120mm
Brief Introduction
Turbidity is caused by suspended particles in the water, which will diffusely reflect the incident light, and the scattered light in that direction of 90 degrees is usually used as the test signal so that the unit tested becomes NTU.
A universal digital turbidity tester designed specifically for the DRFN digital series of turbidity sensors, compatible with all of DRFN's turbidity sensors.
The water turbidity analyzer has 2 settable multi-function SPST relays and 2 high-precision 0/4~20mA current outputs. The operating temperature of the controller is 0~60℃.
The protective grade of the DUC turbidity tester is IP66, which can effectively isolate the pollution of the external environment and the invasion of the corrosive gas. Rich output configurations are available to meet the different detection needs of many applications.
Advantages Of The Turbidity Tester
The TU instrument has clock and historical data recording functions to meet higher data management requirements.
The turbidity tester can record 14000 historical data, record interval can be set between 1~999 minutes.
The turbidity meter has power-off protection, parameters are retained indefinitely.
Rich output to meet monitoring, control, and data remote transmission at the same time.
The meter can display in Chinese or English,128 * 64 large LCD screen, rich content.
Support a variety of installation methods, it can be applied to more different installation environments.
Applications Of The Turbidity Tester
Surface water, drinking water quality, municipal network water quality monitoring, industrial process water quality monitoring, wastewater treatment plant turbidity measurement, etc.
Technical Parameters
| Product Name |
Turbidity Tester |
| Product Model |
DUC2-LTU-S-D |
| Software Version |
DRFN TU Analysis software V1.0 |
| OTA | Default WiFi |
|
Turbidity Display Range |
0.001NTU~4000NTU |
|
Turbidity Resolution |
0.001NTU |
|
Relay Control |
2 settable SPST relays max. load 3A/250VAC |
|
Analog Current Output |
2 settable 0/4~20mA active current loop output max. load 1000Ω |
|
Communication Method |
MODBUS RTU; support JSON text data format |
|
Display Screen |
128*64 LCD, adjustable backlight mode |
|
Time History/Data Record |
Year/month/day/hour/min/second, record 14000 historical data |
|
Protection Level |
IP66 |
|
Operating Environment |
0～60℃, relative humidity less than 95% |
|
Storage Environment |
-20～70℃, relative humidity less than 55% |
|
Shell Material |
Enhanced ABS |
|
Size |
144*144*120mm (hole size 138*138 mm) |
|

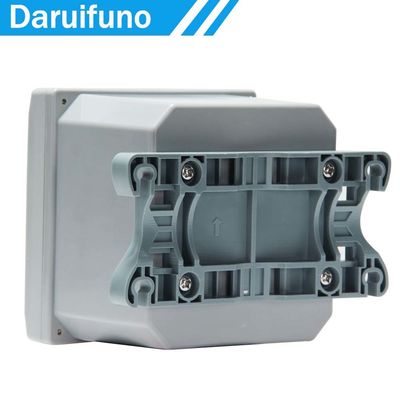

Mounting Method |
Wall mounting, pipe clamping, panel mounting |
|
Power Supply |
18-36V DC |
|
Weight |
800g |
|
Power Consumption |
12W |
| Cleaning System | Max. 24W(laser circulation sensor optional item) |
