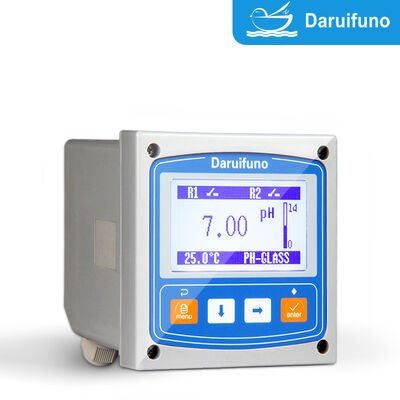

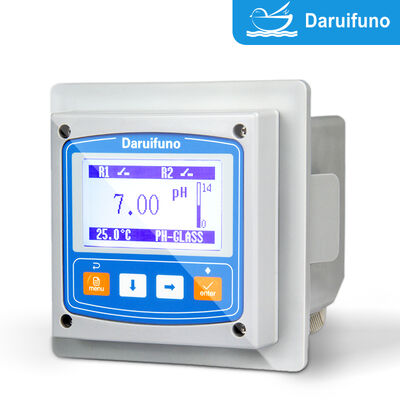

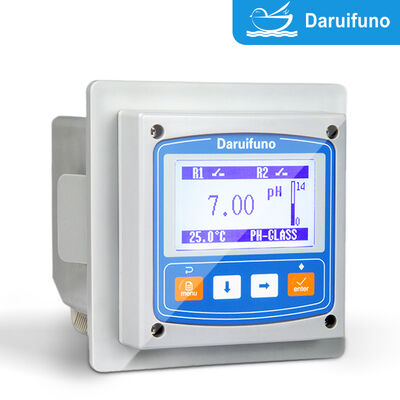

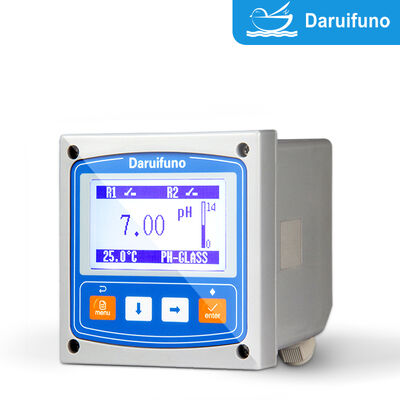

pH ORP Controller with Two SPST Relays 3A 250V AC High Low Alarm Dosing Control IP66 Panel Mount pH ORP Analyzer

Large Image : pH ORP Controller with Two SPST Relays 3A 250V AC High Low Alarm Dosing Control IP66 Panel Mount pH ORP Analyzer

Product Details:

Place of Origin:	Suzhou, China
Brand Name:	Daruifuno
Certification:	CE, ISO 9001
Model Number:	APX1-C2

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	USD 40-150 / Piece
Packaging Details:	Daruifuno branded color box
Delivery Time:	3 working days for stock, 10-20 days for bulk production
Payment Terms:	T/T,L/C,PayPal,Western Union
Supply Ability:	3000 Pieces per Month

Contact Now

pH ORP Controller with Two SPST Relays 3A 250V AC High Low Alarm Dosing Control IP66 Panel Mount pH ORP Analyzer

Description

Product Name:	PH ORP Controller	Product Model:	APX1-C2
Relay Control:	Two SPST Relays, 3A 250V AC	Control Type:	Main Value, Temp, Wash, INT Temp Alarm
Alarm Logic:	High Alarm / Low Alarm Selectable	Wash Function:	Periodic Wash Relay, Hold Or Constant State
Over-Temp Alarm:	Internal >50 C Relay Close	Analog Output:	Two Active 4-20mA Or 0-20mA, Max 1000 Ohm
Communication:	RS485, Modbus RTU And JSON	Display Range:	PH 0-14pH; ORP -2000mV To 2000mV
Accuracy:	PH +/-0.02pH; ORP +/-2mV	Display Screen:	3.2 Inch Graphic LCD
Protection Grade:	IP66	Power Supply:	100-240VAC Or 18-36VDC, 3W Max
Mounting Method:	Panel Mounting	Dimension:	100x100x120 Mm
Application:	Dosing, Neutralization, Wastewater PH Control
Highlight:	Dual SPST Relay Control , High and Low Alarm Control , Automatic Dosing Relay Output

APX1-C2 pH/ORP Controller with Dual SPST Relays for Dosing & Alarm Control

The APX1-C2 pH/ORP controller is a panel-mount online analyzer that converts live pH and ORP measurements into direct action. Equipped with two SPST relays rated 3A 250V AC, it can drive dosing pumps, solenoid valves, alarm beacons, and cleaning systems without any additional control hardware — making it an ideal single-box solution for automated water treatment.

Each relay can be assigned a specific duty through the function menu: main value control, temperature control, periodic wash control. Alarm behaviour is set simply by the On and Off values — when On is greater than Off, the relay acts as a high alarm; when On is lower than Off, it acts as a low alarm. A dedicated wash relay cycles on a configurable schedule, optionally holding the displayed value steady during cleaning.

Beyond relay control, the controller offers two active 4~20mA outputs and an RS485 interface supporting Modbus RTU and JSON, so dosing events and measured values can be logged centrally. With pH accuracy of ±0.02 pH, ORP accuracy of ±2 mV, and NTC10K/PT1000 temperature compensation, it delivers the measurement integrity that reliable automation depends on.

Technical Parameters

Parameter	Specification
Product Model	APX1-C2
Relay Control	Two SPST relays, contact capacity 3A 250V AC
Control Type	Main value, Temp., Wash, INT Temp. Alarm
Alarm Logic	High alarm / Low alarm selectable by On/Off value
Wash Function	Periodic wash relay, Hold or Constant wash state
Over-Temp Alarm	Internal >50 ℃ closes relay
Analog Output	Two active 4~20mA or 0~20mA, max. load 1000 Ω
Communication	RS485, Modbus RTU and JSON
Display Range	pH 0~14 pH; ORP -2000~2000 mV
Accuracy	pH ±0.02 pH; ORP ±2 mV
Temp Compensation	NTC10K / PT1000 automatic or manual
Display Screen	3.2 inch graphic LCD
Power Supply	100~240VAC or 18~36VDC, 3W Max
Protection Grade	IP66
Mounting / Dimension	Panel mounting, 100×100×120 mm, ~500 g

Key Advantages

Two SPST relays built in: 3A 250V AC contact rating allows direct control of pumps, valves, and alarms — no external controller needed.
Flexible control assignments: each relay can serve main value, temperature, wash.
Selectable high/low alarm logic: simply set On above or below Off to define the control direction.
Automatic wash control: periodic cleaning cycles with Hold or Constant display behaviour.
Complete output set: dual 4~20mA analog outputs plus RS485 Modbus RTU / JSON for central logging.
High accuracy: pH ±0.02 pH and ORP ±2 mV with NTC10K/PT1000 compensation.

Applications

Chemical dosing and pH neutralization in wastewater plants
Acid/caustic metering control for industrial process water
Cooling tower and boiler water treatment
Swimming pool and aquaculture pH/ORP control
Food & beverage CIP cleaning control
Plant-wide alarm and shutdown logic

Frequently Asked Questions

Q1: Can the relays directly switch a dosing pump?

Yes. Each SPST relay has a 3A 250V AC contact capacity, sufficient for most metering pumps, solenoid valves, and alarm devices.

Q2: How do I set a high or low alarm?

Set the On value greater than the Off value for a high alarm, or On lower than Off for a low alarm.

Q3: What does the wash relay do?

It switches on and off in a configurable cycle to drive a sensor cleaning device; the display can either hold the last value or show the real-time value during washing.

Q4: Can relay events be recorded centrally?

Yes, via the RS485 Modbus RTU or JSON interface, values can be logged in a SCADA, PLC DTU ect .

Contact Daruifuno for relay wiring diagrams, pricing, and OEM options.
