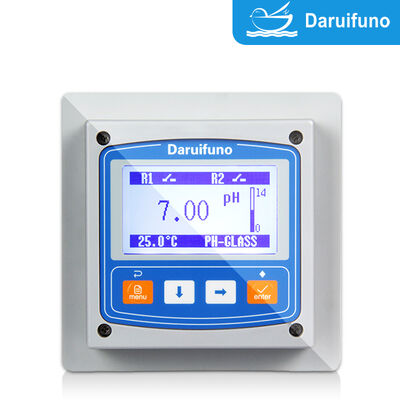

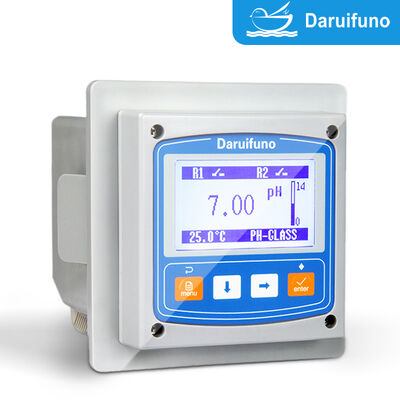

APX1-C1Z RS485 MODBUS-RTU Online pH ORP Controller 4-20mA Output IP66 Panel Mount

Large Image : APX1-C1Z RS485 MODBUS-RTU Online pH ORP Controller 4-20mA Output IP66 Panel Mount

Product Details:

Place of Origin:	China
Brand Name:	Daruifuno
Certification:	CE
Model Number:	APX1-C1Z

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	USD 40-120 / Piece
Packaging Details:	Daruifuno branded export carton
Delivery Time:	7-15 working days after payment
Payment Terms:	T/T
Supply Ability:	3000 Pieces per Month

Contact Now

APX1-C1Z RS485 MODBUS-RTU Online pH ORP Controller 4-20mA Output IP66 Panel Mount

Description

Product Name:	Online PH/ORP Controller	Model:	APX1-C1Z
Display Range:	PH 0~14pH; ORP -2000mV~2000mV; Temp. -10~+150 C	Resolution:	PH 0.01pH; ORP 1mV; Temp. 0.1 C
Accuracy:	+/-0.02pH / +/-2mV	Temp. Compensation:	NTC10K / PT1000 Automatic Or Manual
Relay Control:	2 Channels SPST, 3A 250V AC	Current Output:	1 Channel Active 4~20mA Or 0~20mA, Max Load 1000 Ohm
Comm. Interface:	RS485 MODBUS-RTU (APX1-C1Z)	Display Screen:	3.2 Inch Graphic LCD
Power Supply:	100~240VAC Or 18~36VDC, 3W Max	Protection Grade:	IP66
Installation Method:	Panel Mounting	Instrument Dimension:	100100120 Mm
Instrument Weight:	About 500g
Highlight:	RS485 MODBUS-RTU pH ORP Controller , 4-20mA Output pH ORP Controller , IP66 Panel Mount pH ORP Controller

Online pH/ORP Controller APX1-C1 / APX1-C1Z

The APX1-C1Z online pH/ORP controller is suitable for continuous monitoring of pH or ORP values of aqueous solutions in various industries. Built on the same IP66 panel mount platform, the APX1-C1Z adds an RS485 MODBUS-RTU digital interface and active 4~20mA current output, making it easy to integrate with PLC, SCADA and automatic dosing systems.

Technical Parameters

Product Name	Online pH/ORP Controller
Model	APX1-C1 / APX1-C1Z
Display Range	pH: 0~14pH \| ORP: -2000mV~2000mV \| Temp.: -10~+150°C
Resolution	pH: 0.01pH \| ORP: 1mV \| Temp.: 0.1°C
Accuracy	±0.02pH / ±2mV
Temp. Compensation	NTC10K / PT1000 automatic or manual
Relay Control	2 channels, main value / temp. / wash control, SPST, 3A 250V AC
Current Output	1 channel, active 4~20mA or 0~20mA, max load 1000Ω
Comm. Interface	RS485 MODBUS-RTU (APX1-C1Z)
Display Screen	3.2 inch graphic LCD
Configuration	Power failure protection, parameters retained indefinitely
Operating Environment	0~+60°C, relative humidity 0~95%, no condensation
Storage Environment	-20~+70°C, relative humidity 0~55%, no condensation
Power Supply	100~240VAC or 18~36VDC, 3W Max
Installation Method	Panel mounting
Instrument Dimension	100100120 mm
Protection Grade	IP66
Instrument Weight	About 500g

Advantages

RS485 interface with standard MODBUS-RTU protocol for digital data acquisition (APX1-C1Z).
1 channel active 4~20mA or 0~20mA current output, max load 1000 Ohm, supports remote transmission.
Two SPST relay outputs for main value control, temperature control or wash control.
NTC10K / PT1000 automatic or manual temperature compensation for accurate readings.
IP66 panel mount housing with power failure protection and parameter retention.

Applications

Wastewater treatment and sewage plants, automatic dosing and control systems, industrial process water, pure water treatment, cooling water, aquaculture, chemical, petroleum, paper, food and medicine, electroplating and PCB manufacturing.

Why Choose Us

The online pH/ORP controller is developed and produced by a professional water analysis instrument manufacturer with more than 10 years of experience in water quality testing. Every unit is factory calibrated, aging tested and supports long-term continuous monitoring with stable measurement.

If you are interested in the APX1-C1 / APX1-C1Z online pH/ORP controller, please contact us. We offer many other models of online, portable and laboratory water quality analyzers to choose from.
