APX1-C1 Online pH ORP Controller IP66 Panel Mount Dual Relay 3.2 inch LCD 100-240VAC

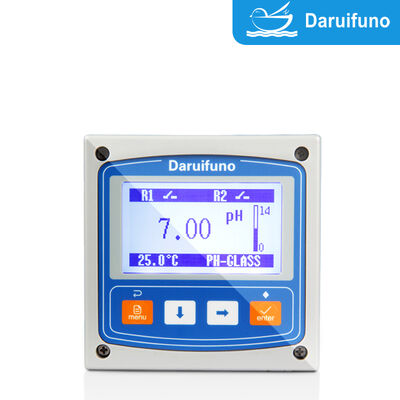

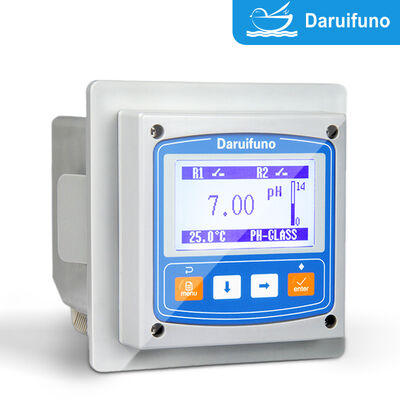

Large Image : APX1-C1 Online pH ORP Controller IP66 Panel Mount Dual Relay 3.2 inch LCD 100-240VAC

Product Details:

Place of Origin:	China
Brand Name:	Daruifuno
Certification:	CE
Model Number:	APX1-C1

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	USD 40-120 / Piece
Packaging Details:	Daruifuno branded export carton
Delivery Time:	5-15 working days after payment
Payment Terms:	T/T
Supply Ability:	3000 Pieces per Month

Contact Now

APX1-C1 Online pH ORP Controller IP66 Panel Mount Dual Relay 3.2 inch LCD 100-240VAC

Description

Product Name:	Online PH/ORP Controller	Model:	APX1-C1
Display Range:	PH 0~14pH; ORP -2000mV~2000mV; Temp. -10~+150 C	Resolution:	PH 0.01pH; ORP 1mV; Temp. 0.1 C
Accuracy:	+/-0.02pH / +/-2mV	Temp. Compensation:	NTC10K / PT1000 Automatic Or Manual
Relay Control:	2 Channels SPST, 3A 250V AC	Current Output:	1 Channel Active 4~20mA Or 0~20mA, Max Load 1000 Ohm
Comm. Interface:	Not Available On APX1-C1	Display Screen:	3.2 Inch Graphic LCD
Power Supply:	100~240VAC Or 18~36VDC, 3W Max	Protection Grade:	IP66
Installation Method:	Panel Mounting	Instrument Dimension:	100100120 Mm
Instrument Weight:	About 500g
Highlight:	IP66 panel mount pH ORP controller , dual relay pH ORP controller , 3.2 inch LCD pH ORP controller

Online pH/ORP Controller APX1-C1 / APX1-C1Z

The APX1-C1 online pH/ORP controller is suitable for continuous monitoring of pH or ORP values of aqueous solutions in various industries. It combines an IP66 waterproof panel mount housing, a 3.2 inch graphic LCD and dual relay control, delivering stable and accurate readings for on-site water quality monitoring.

Technical Parameters

Product Name	Online pH/ORP Controller
Model	APX1-C1 / APX1-C1Z
Display Range	pH: 0~14pH \| ORP: -2000mV~2000mV \| Temp.: -10~+150°C
Resolution	pH: 0.01pH \| ORP: 1mV \| Temp.: 0.1°C
Accuracy	±0.02pH / ±2mV
Temp. Compensation	NTC10K / PT1000 automatic or manual
Relay Control	2 channels, main value / temp. / wash control, SPST, 3A 250V AC
Current Output	1 channel, active 4~20mA or 0~20mA, max load 1000Ω
Comm. Interface	Not available on APX1-C1
Display Screen	3.2 inch graphic LCD
Configuration	Power failure protection, parameters retained indefinitely
Operating Environment	0~+60°C, relative humidity 0~95%, no condensation
Storage Environment	-20~+70°C, relative humidity 0~55%, no condensation
Power Supply	100~240VAC or 18~36VDC, 3W Max
Installation Method	Panel mounting
Instrument Dimension	100100120 mm
Protection Grade	IP66
Instrument Weight	About 500g

Advantages

IP66 protection grade panel mount housing, resistant to dust and water splash.
3.2 inch graphic LCD with clear and intuitive display.
Two SPST relay outputs for main value control, temperature control or wash control, contact capacity 3A 250V AC.
Power failure protection: parameters are retained indefinitely.
Compact dimension 100*100*120 mm, about 500g, easy for panel installation.

Applications

Environment protection water treatment, pure water treatment, industrial process control, aquaculture, drinking water, surface water, groundwater, swimming pool, chemical, petroleum, paper, food and medicine, electroplating and PCB manufacturing.

Why Choose Us

The online pH/ORP controller is developed and produced by a professional water analysis instrument manufacturer with more than 10 years of experience in water quality testing. Every unit is factory calibrated, aging tested and supports long-term continuous monitoring with stable measurement.

If you are interested in the APX1-C1 / APX1-C1Z online pH/ORP controller, please contact us. We offer many other models of online, portable and laboratory water quality analyzers to choose from.
