Analog PH Electrode Suitable For Water Purification >5μS/Cm

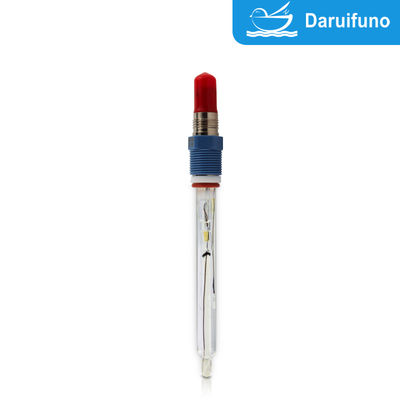

Daruifuno ASP121E analog pH Sensor:
Precision and Longevity
The ASP121E pH sensor is a versatile and durable choice, engineered for a wide measuring range of 0 to 14 pH. It utilizes a low-impedance cylindrical glass membrane to deliver fast and stable readings.
A key feature is its sophisticated Ag/AgCl reference system. This design incorporates a double salt bridge and a KCl gel electrolyte, significantly extending the sensor's lifespan and ensuring reliable performance in challenging environments where conventional single-junction electrodes often fail.
Built for Reliability and High Performance Constructed with durability in mind, the electrode features a resilient glass body and a distinctive dot-shaped ceramic junction (frit), offering excellent resistance to chemical corrosion.
Operating Parameters:
Standard Operation: The sensor operates continuously from 0∘C to 80∘C with pressures reaching 6 bar.
High-Temperature Capability: For brief periods (less than 60 minutes), it can endure temperatures up to 100∘C at pressures up to 3 bar.
Customizable High-Temperature Model: An optional version is available for continuous use up to 100∘C or short-term spikes (under 60 minutes) up to 135∘C. This enhanced model has demonstrated excellent endurance, successfully completing over 40 high-temperature cycles in clean water testing.
Key Technical Specifications
The ASP121E is built for exceptional accuracy, with technical specifications to back it up:
Sensitivity (Slope): Greater than 95%.Zero Point (E0): ±0.25 pH.
Temperature Compensation: Offers flexible integration with PT100, PT1000, or NTC10K sensors for precise readings across varying temperatures.
Optimal Flow Rate: Designed for sample flow rates between 0.001 m/s and 0.5 m/s.
Physical Specifications: Standard dimensions are 12 mm in diameter and 120 mm in length, with customization available.
Installation: Features a standard PG13.5 mounting thread for straightforward integration.

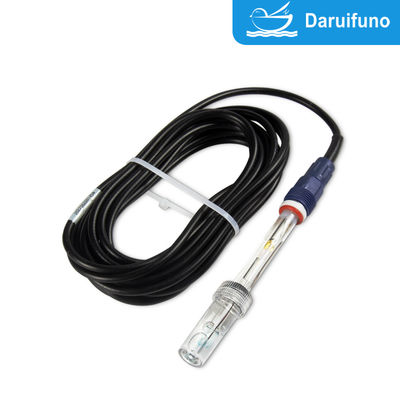

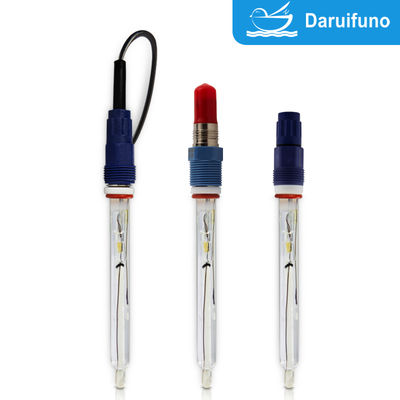

Wiring: Available with integral or split leads for flexible setup.
This electrode is highly recommended for pure water applications with conductivity greater than 5μS/cm, establishing it as a definitive choice for reliable and precise pH monitoring.
Specifications
|
Model
|
ASP120E
|
ASP121E
|
ASP122E
|
ASP123E
|
ASP124E
|
|
Measuring Object
|
PH
|
|
Measuring Range
|
0~14pH
|
|
Indicator Electrode
|
low impedance cylindrical glass membrane
|
|
Reference System
|
Ag/AgCl reference electrode, double salt bridge, KCl gel
|
|
Electrode Material
|
Glass+Dot-shaped ceramic hole
|
Glass+Porous tetrafluoro ring
|
Glass+ceramic sand core
|
|
Working Pressure
|
Medium and low temp environment: max. 0~6bar
High temp environment: 0~3bar
|
|
Working Temp.
|
Medium and low temp. environment: 0~80℃, continuous work
High temp. environment: 80~100℃, continuous work for less than 60 minutes
Customzied as below :
Medium and low temp. Env.: 0~100℃, continuous work
High temp. Env.: 100~135℃, continuous work < 60 mins
High temp. Env. work more than 40 times (clean water test env.)
|
|
Sample Flow Rate
|
0.5 m/s ≥ flow velocity ≥ 0.001 m/s
|
|
Zero (E0)
|
±0.25pH
|
|
SLOP%
|
＞95%
|
|
Temperature Unit
|
PT100, PT1000, NTC10K customized
|
|
Dimension
|
Standard: diameter 12mm/Length 120mm (customized)
|
|
Installation Thread
|
PG13.5
|
|
Tail Lead
|
Integral or split
|
|
Application
|
Strong acid and alkali
|
Normal temp. pure water >5μS/cm
|
Harsh industrial process*
|
Normal temp. desulfurization or viscous slurry
|
Hydrofluoric acid with concentration ≤4000ppm
|
| Model |
ASP125E |
ASP126E |
ASP127E |
ASR120E |
ASP128E |
| Measuring Object |
PH |
ORP |
PH |
| Measuring Range |
0~14pH |
±2000mV |
0~14pH |
| Indicator Electrode |
low impedance cylindrical glass membrane |
Platinum |
glass membrane |
| Reference System |
Ag/AgCl reference electrode, double salt bridge, KCl gel |
| Electrode Material |
Glass+ceramic sand core |
| Working Pressure |
Medium and low temp environment: max. 0~6bar
High temp environment: 0~3bar
|
max. 0~6bar |
| Working Temp. |
Medium and low temp. environment: 0~80℃, continuous work
High temp. environment: 80~100℃, continuous work for less than 60 minutes
Customzied as below :
Medium and low temp. Env.: 0~100℃, continuous work
High temp. Env.: 100~135℃, continuous work < 60 mins
High temp. Env. work more than 40 times (clean water test env.)
|
-15~80℃, continuous work |
| Sample Flow Rate |
0.5 m/s ≥ flow velocity ≥ 0.001 m/s |
| Zero (E0) |
±0.25pH |
| SLOP% |
＞95% |
| Temperature Unit |
PT100, PT1000, NTC10K customized |
| Dimension |
Standard: diameter 12mm/Length 120mm (customized) |
| Installation Thread |
PG13.5 |
| Tail Lead |
Integral or split |
| Application |
Strong
acid and alkali
|
Harsh conditions &high pollution
|
Fermentation process |
High temp.
Industrial process
|
Low temp. |
Features & Advantages
- Large capacity reference for extended service life
- Optional cleaning connector for underwater maintenance
- Available with PTFE protective cover and self-cleaning interface
- Self-cleaning function enhances stability, accuracy, and reliability while reducing maintenance costs
- Suit for Pure Water >5μS/Cm
The ASP121E glass pH sensor offers ultimate flexibility with custom mounting accessories for pure water environment:
- Sidewall Mounting: Ideal for large tanks and vessels
- Top Flange Mounting: Perfect for sealed reactors
- Pipe/Flow Cell Mounting: For in-line measurements
- Submersible Mounting: For open tanks and channels
- Manual Retractable Holder: Enables maintenance without process shutdown
Enhanced Durability with PTFE Sheath
The optional PTFE (Teflon) sheath. Featuring 3/4" NPT threads for easy attachment to mounting accessories, it ensures seamless integration across various applications.
Application For Pure Water >5μS/Cm
