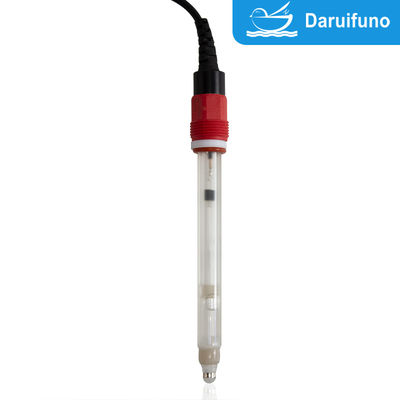

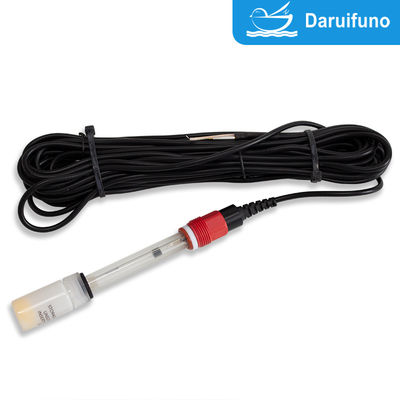

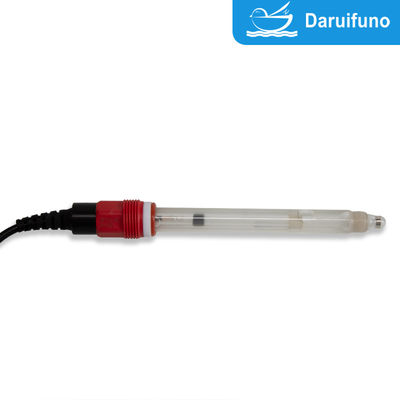

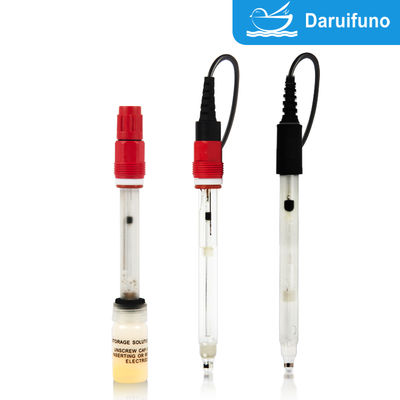

Analog ORP Sensor For Domestic Sewage Or Industrial Waste Water

The Daruifuno pH sensor ASP100E delivers precise ORP measurement across a full range of 0 to ±2000mV. Its advanced design features:

Engineered for versatile performance in diverse conditions:

• Medium-to-low temperature range (0-80°C): Continuous operation at pressures up to 4 bar
• High-temperature range (80-100°C): Continuous measurements for up to 30 minutes at 2 bar pressure

• Optimal sample flow rate: 0.001 m/s to 0.5 m/s
• Zero-point (E0) ORP: ±20mV for excellent calibration stability
• Slope: Over 95% sensitivity
• Temperature compensation options: PT100, PT1000, or customized NTC10K sensor

Standard dimensions: 12mm diameter × 120mm length (custom sizes available)

• Installation options: Twist-proof cap or PG13.5 thread
• Cable configuration: Integrated or detachable

• Large capacity reference for extended service life
• Optional cleaning connector for underwater maintenance
• Available with PTFE protective cover and self-cleaning interface
• Self-cleaning function enhances stability, accuracy, and reliability while reducing maintenance costs

The ASR100E glass pH sensor offers ultimate flexibility with custom mounting accessories for any industrial environment:

• Sidewall Mounting: Ideal for large tanks and vessels
• Top Flange Mounting: Perfect for sealed reactors
• Pipe/Flow Cell Mounting: For in-line measurements
• Submersible Mounting: For open tanks and channels
• Manual Retractable Holder: Enables maintenance without process shutdown

The optional PTFE (Teflon) sheath provides exceptional corrosion resistance in harsh chemical environments. Featuring 3/4" NPT threads for easy attachment to mounting accessories, it ensures seamless integration across various applications.

The ASR100E ORP sensor serves critical monitoring needs across multiple industries:

• Water treatment plants: Ensures ORP compliance throughout treatment processes
• Industrial production: Monitors ORP in chemical, pharmaceutical, and food processing
• Environmental monitoring: Tracks ORP in natural water bodies
• Aquaculture: Maintains optimal pond conditions
• Aquariums & pools: Protects aquatic life and swimmer safety
• Research labs: Supports precise pH measurement in experiments
