|PH ORP Controller
|0 ~ 14pH
|Two SPST Relays
|RS485 Interface, Modbus RTU
|AC: 100~240V Or DC:18~36V, 50/60Hz
Drinking Water ORP Transmitter,
Two Relays ORP Transmitter,
Sewage Water Online PH Transmitter

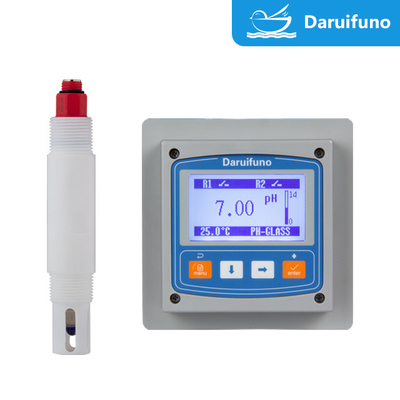

Online PH/ ORP Transmitter with RS485 Two Relays two 0/4~20mA Output For Sewage Or Drinking Water
The pH transmitter APX1-C2 is an instrument used to measure and monitor the acid-base properties of liquids, that is, the pH value. It has a wide range of applications and can provide reliable performance in various industrial and laboratory environments. pH measurement and control functions. The pH value is an important parameter that describes how acidic, neutral, or alkaline a liquid is. It usually ranges from 0 (extremely acidic) to 14 (extremely alkaline). The pH transmitter APX1-C2 has the functions of two relays, two current outputs and one RS485 communication interface.
Two-way relay: These relays are often used to implement pH-based control or alarm functions. For example, when the pH of a solution exceeds or falls below a set threshold, a relay can trigger corresponding actions, such as opening or closing a valve, pump, or other device. This helps automate process control, ensuring the pH is always within the desired range.
Two current outputs: These current outputs are typically used to transmit pH measurements to a monitoring system or recorder. By converting the pH value to a standard current signal (e.g. 4-20 mA), the data can be easily transmitted to remote devices for data logging, analysis and monitoring.
One RS485 communication interface: RS485 is a communication protocol usually used for data communication with other instruments, control systems or computers. Through the RS485 interface, the pH transmitter can be connected with other devices to achieve real-time data transmission, remote monitoring and control. This also allows users to integrate pH transmitters into industrial automation systems for more complex control and data management functions.
The pH transmitter APX1-C2 with two relays, two current outputs and one RS485 communication interface has powerful control, monitoring and data transmission functions. They can be used in a variety of applications, including chemical industry, environmental monitoring, food processing, pharmaceuticals, etc., to ensure precise control and data recording of acid and alkaline processes.
|Glass pH electrode (hydrogen ion concentration index)
|Platinum or gold electrodes (redox potential)
|pH: 0.01pH ORP: 1mV TEMP: 0.1℃
|0.1% of the measuring range or ±0.02pH / ±2mV, take the larger one
|0.05% of measuring range every 24 hours without accumulation
|Better than 0.1% of measuring range
|Automatic or manual (NTC10K/PT1000)
Automatic or manual (NTC10K/PT1000)
Converted at 25°C
|Two SPST relays, Max. load 3A/250VAC, set high/low alarm, temp or clean control
|A two-wire RS485, Modbus, JSON
|Two 0/4~20mA current Max. load 1000Ω
|English and Chinese
|128*64 3.2-inch graphic dot matrix LCD
|PH: 3 points; ORP: 2 points
PH: 3 points; ORP: 2 points
PH: 5 points multi-slope calibration
|AC: 100~240V or DC:18~36V, 50/60Hz
|100*100*120mm (Hole size 92*92mm)
|Reserve three M12*1.5 glan heads, the wire diameter is 3~6.5mm
|0～60℃, RH<95%, non-condensing
|-20～70℃, RH<55%, non-condensing
Two SPST relays to set high and low alarms and control dosing
A 0/4~20mA current Max. load 1000Ω
The use environment includes but not limited to the following:
pH and ORP sensors are commonly used in laboratories for chemical analysis, biological experiments and research applications. These environments are often tightly controlled to ensure high precision and accuracy.
Chemical plants, pharmaceutical plants, food processing plants, and other industrial sites use pH and ORP sensors to monitor and control production processes. This helps ensure product quality, increase production efficiency and avoid unnecessary waste.
pH and ORP sensors are widely used in the field of environmental monitoring to detect and monitor the properties of water, soil, wastewater and pollutants. This helps protect the natural environment and human health.
Drinking water treatment plants and wastewater treatment plants use pH and ORP sensors to monitor and regulate the pH and redox properties of water to ensure water quality is up to standard.
Pool and Spa:
pH sensors are used to monitor the pH level of swimming pool and spa water to maintain clean and safe water.
The field of agriculture uses pH sensors to monitor the pH of the soil to determine the most suitable soil conditions for growing different crops.
Food and drinks:
The food and beverage processing industry uses pH sensors to monitor and regulate the pH of food products to ensure product safety and taste.
pH and ORP sensors are used to monitor the quality of water in fish tanks, aquariums and aquarium exhibits to ensure the health of fish and aquatic life.
It should be noted that different applications may have different requirements for sensor accuracy, durability and environmental conditions. Therefore, when choosing pH and ORP sensors, you must consider the characteristics of the use environment and choose a suitable sensor model to ensure accurate and reliable measurement.
