Product Details:
|
| Product Name: | PH ORP Controller | PH Range: | 0 ~ 14pH |
|---|---|---|---|
| ORP Range: | ± 2000mV | Temperature Range: | -10～150℃ /14~302℉ |
| Resolution: | 0.01pH/1mV/0.1℃ | Protection Grade: | IP66 |
| Operating Temperature: | 0~60℃ | Power Supply: | 18 ~ 36V DC |
| Shell Material: | Enhanced ABS | Power Consumption: | 3W |
| Mounting Method: | Panel Installation | Weight: | 500g |
| High Light: | Swimming pool pH ORP Meter,Enhanced ABS pH ORP Meter,3W pH ORP Controller |
||

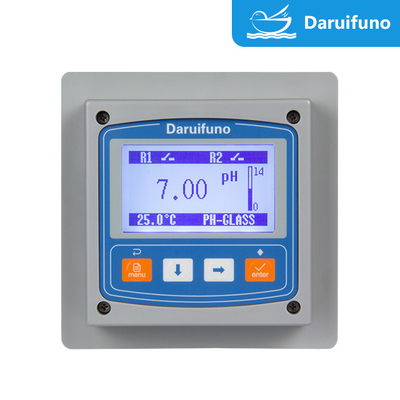

Enhanced ABS 0~14pH IP66 pH ORP Meter Controller For Swimming pool
pH/ORP controller (also known as pH meter) equipment is suitable for the control of PH and ORP values in electroplating, metallurgy, textile, chemical and other wastewater, giving new life to the traditional chemical treatment method, fully realizing automatic monitoring, automatic medication, to ensure that the discharge of wastewater to meet the national discharge standards. It can not only reduce the labor intensity of operation, but also greatly save the consumption of chemical raw materials, with obvious environmental and economic benefits. This kind of equipment with the company's production of air float or settling tower solid liquid separation equipment can form a complete industrial (electroplating) wastewater treatment system.
Advantages of pH/ORP controller:
pH ORP controller Parameters:
|
Product Name |
PH ORP controller |
| Product Model | APX1-G2 |
| PH Range |
0~14pH |
| ORP Range | ± 2000mV |
| Temperature Range |
-10～150℃ /14~302℉ |
|
Resolution |
0.01pH / 1mV/ 0.1℃ |
|
Accuracy |
PH:±0.02 pH /ORP:±2 mV |
|
Solution Grounding |
It can eliminate the leakage interference of part of the solution |
|
Stability |
0.05% of the measurement range per 24 hours, no accumulation |
|
Temp Compensation |
NTC10K/PT1000 automatic selection or 25°C conversion manual selection |
|
Sensor Diagnosis |
Screen image display |
|
Analog Current Output |
2 channel 0/4~20mA,load 1000 ohms,and support long-term calibration |
|
Relay Control |
2 configurable SPST relays with a maximum load of 3A/250VAC |
|
Digital communication |
1 two-wire RS485 communication interface; MODBUS RTU |
|
Screen Display |
128*64 3.2-inch large graphic dot matrix LCD |
| Calibration method |
pH: 3-point calibration/5-point calibration, ORP: 2-point calibration quick calibration menu available |
|
Operating Environment |
0～60℃, RH＜ 95% |
|
Storage Environment |
-20～70℃, RH ＜ 55% |
| Power Supply |
AC: 100~240V 50/60Hz or DC:18~36V |
| Power Consumption | 3 W |
|
Shell Material |
Enhanced ABS |
|
Size |
100×100×120 mm(hole size 92*92mm) |
| Weight | 500g |
|
Mounting Method |
Panel installation |
pH ORP Controller terminal definition:
Connect the electrode cables to the ACT, REF, SG(1), and TEMP terminals of the meter, and connect others as required.
pH ORP controller Applications:
Water treatment monitoring: drinking water, surface water source water quality, groundwater, environmental sewage discharge monitoring, urban drainage network monitoring
Industrial process monitoring: chemical industry, petroleum, paper making, food and medicine, PCB electroplating, etc
If you are interested in more product information about pH ORP controller APX1-G2, please contact us.
