Product Details:
|
| Item Name: | PH/ORP Controller | Detection Channel: | Single Digital Channel Input |
|---|---|---|---|
| Display Screen: | 3.2-inch LCD Display | Instrument Operation: | PET Button Panel, 4 Buttons |
| System Language: | English (support Customization) | Power-off Protection: | With |
| Menu Password: | Six-digit Password Setting | Relay Output: | 2 Configurable SPST Relays |
| Setting Objects: | Including High/low Alarm, Water Temperature Or Wash Control | Current Output: | 1 Channel 0/4~20mA |
| Communication Interface: | RS485 Interface MODBUS RTU | Protection Grade: | IP66 |
| Operating Environment: | 0～60℃ | Storage Environment: | 20～70℃ |
| Instrument Dimensions: | 100*100*120mm | Installation Hole Size: | 92*92mm |
| Installation Method: | Cabinet Panel Installation | Shell Material: | Reinforced ABS |
| Power Requirements: | AC: 100~240V, 50~60Hz; DC: +18~36V | Maximum Power: | 7W |
| Highlight: | Dosing Control PH ORP Controller,Current Output PH ORP Controller,PH ORP Controller IP66 |
||

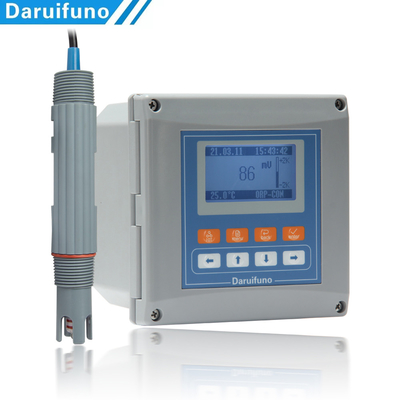

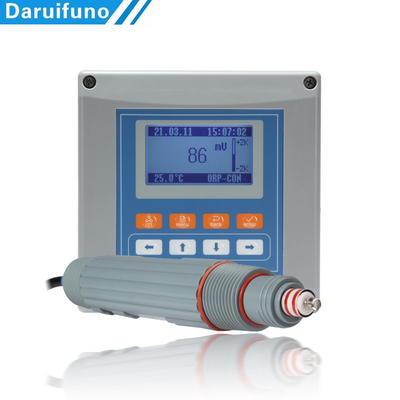

Dosing Control Relay And Current Output PH/ORP Controller For Sewage Or Drinking Water
The single-channel digital intelligent controller of the DUC1 series is a small, compact and lightweight design, which is suitable for the panel installation of the cabinet.
The instrument is connected to and controls other equipment through a relay, and can also use 4~20mA current signal or RS485 digital signal to transmit instrument information.
Product Parameters
|
Instrument information/model |
Online single channel intelligent controller | DUC1-A1 |
|
Detection channel |
specified digital sensor |
single channel input |
|
Display screen |
3.2-inch black and white graphic LCD display, pixel 128*64 dot matrix LCD |
√ |
|
Instrument operation |
PET button panel |
4 buttons |
|
System language |
support customization |
English |
|
Power-off protection |
the instrument is powered off, and the set data is permanently retained |
√ |
|
Menu password |
management of operation rights, six-digit password setting |
√ |
|
Relay output |
2 settable SPST relays, maximum load 3A/250VAC |
2ways |
|
Setting objects: including high/low alarm, water temperature or wash control |
√ | |
|
Current output |
0/4~20mA can be set active current loop, load 1000 ohm, support long-term calibration |
1 channel |
|
Digital communication |
communication interface: two-wire RS485 interface |
1个 |
|
Communication protocol: MODBUS RTU |
√ | |
| Protection grade |
Dustproof and waterproof grade |
IP66 |
|
Operating environment |
0～60℃, relative humidity less than 95%RH (no condensation) |
√ |
|
Storage environment |
20～70℃, relative humidity less than 55%RH (no condensation, precision instrument) |
√ |
|
Instrument dimensions |
mm | 100*100*120 |
|
Installation hole size |
mm | 92*92 |
|
Installation method |
cabinet panel installation |
√ |
|
Shell Material |
Reinforced ABS |
√ |
|
Electrical interface |
3 M12*1.5 Glenn heads, wire diameter 3~6.5mm |
√ |
|
Power requirements |
AC:100～240V,50~60Hz；DC:+18~36V |
AC and DC optional |
|
Maximum power |
7W | |
|
Instrument weight |
700g | |
Brief introduction:
● Compatible with all DRFN digital pH sensors;
● Separately have a list of controller and sensor settings for quick and detailed parameter setting;
● The working status of the sensor can be queried, including reading the serial number;
● Support a variety of installation methods；
● 3.2-inch large LCD screen;
● User-friendly English language interface;
● Password can be set to prevent misoperation;
● 2 SPST multi-function and settable relays;
● ONE way 0/4~20mA active current loop outputs;
● RS485 interface, Modbus RTU communication protocol;
● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;
Aplication:
◇ Surface water
◇ Source water
◇ Aquaculture waters
◇ Landscape water
◇ Import of the waterworks
◇ Water treatment monitoring
◇ Drinking water,
◇ Groundwater, swimming pool
◇Industrial process monitoring and dosing control management
◇Chemical, petroleum, paper, food and medicine, electroplating, PCB manufacturing, etc.
FAQ
1. How many relays the controller with?
2 settable SPST relays, maximum load 3A/250VAC
Setting objects: including high/low alarm, water temperature or wash control
2. How many Current output the controller with?
One way 0/4~20mA can be set active current loop, load 1000 ohm, support long-term calibration
