Product Details:
|
| Product Name: | Blue-Green Algae Meter | Display Range: | 0 - 3,000,000 Cells / ML |
|---|---|---|---|
| 1cells / M L: | 2 Settable SPST Relays | Analog Current Output: | 2 Settable 0/4~20mA |
| Communication Method: | Two-wire RS485 Interface | OTA: | Without |
| Configuration Information: | Power Off Protection | Time/Data Record: | Record 14000 Historical Data |
| Protection Level: | IP66 | Shell Material: | Enhanced ABS |
| High Light: | Automatic Rivers Algae Meter,Two wire Rivers Algae Meter,RS485 Automatic Algae Meter |
||

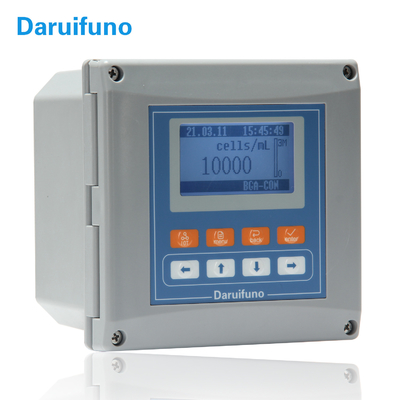

Automatic Control RS485 Interface Blue-Green Algae Meter For Rivers
The blue-green algae sensor uses the characteristic that blue-green algae has absorption peaks and emission peaks in the spectrum, and emits monochromatic light of a specific wavelength into the water, and the blue-green algae in the water absorb the energy of the monochromatic light and release another. Monochromatic light of various wavelengths, the light intensity emitted by blue-green algae is proportional to the content of blue-green algae in the water.
Main application environment
On-line monitoring of blue-green algae imported from water plants, drinking water sources, aquaculture, etc.;
On-line monitoring of blue-green algae in different water bodies such as surface water and landscape water.
Specification:
| Model | DUC2-BGA-H-D |
| Software Version | DRFN BGA Analysis software V1.0 |
| Sensor Input | Compatible with all DRFN's BGA Digital Sensors |
| Display Range | 0-3,000,000 cells /mL |
| Resolution | 1cells /mL |
| Relay Control | 2 settable SPST relays with a maximum load of 3A/250VAC |
| Analog Current Output | 2 settable 0/4~20mA current outputs with a maximum load of 1000Ω |
| Communication Method |
Two-wire RS485 interface MODBUS RTU support JSON text data format |
| OTA | —— |
| Display Screen |
128*64 black-and-white graphic lattice LCD adjustable backlight mode adjustable display rate |
| Configuration Information | Power off protection, parameters are retained indefinitely |
| Time/Data Record |
Year/month/day/hour/min/second, record 14000 historical data record interval can be set between 1~999 minutes |
| Maintenance Records | Last 100 times |
| Protection Level | IP66 |
| Operating Environment | 0～60℃,RH<95% ( no condensation) |
| Storage Environment | -20～70℃, RH<55% ( no condensation, precision instruments) |
| Shell Material | Enhanced ABS |
| Dimension | 144*144*120 mm |
| Mounting Method | Wall mounting, pipe clamping, panel installation (hole size 138*138 mm) |
| Electrical Interface | The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm |
| Power Supply |
18~36VDC |
| Power Consumption | About 7W |
| Weight | About 800g |
Please click the catalog of RS485 Blue-Green Algae controller here:
Brief introduction:
● Compatible with all DRFN digital BGA sensors;
● Separately have a list of controller and sensor settings for quick and detailed parameter setting;
● The working status of the sensor can be queried, including reading the serial number;
● Support a variety of installation methods；
● Time and historical data recording function;
● 3.2-inch large LCD screen;
● User-friendly Chinese and English language interface;
● Password can be set to prevent misoperation;
● 2 SPST multi-function and settable relays;
● Two 0/4~20mA active current loop outputs;
● RS485 interface, Modbus RTU communication protocol;
● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;
Aplication:
◇ surface water
◇ source water
◇ aquaculture waters
◇ landscape water
◇ import of the waterworks
FAQ
1. Which sensors can be connected to your Blue-Green Algae controller?
A: The Blue-Green Algae meter can be compatible with DRFN digital Blue-Green Algae sensors.
2. How does your Blue-Green Algae controller collect sensor data?
A: The connected sensor uploads the detected data in a special encrypted communication method to ensure that the controller can collect high-precision data more stably
