|Product Name:||Conductivity Sensor||Measuring Principle:||Conductivity Cell 4-electrode|
|Electrical Isolation:||Without||Measuring Range:||Automatic Switch: 0~5000 μS/cm 0.0 ~100.0 MS/cm 0~50℃|
|Temp. Compensation:||Automatic, Built-in Temperature Unit||Calibration Method:||2-point Calibration|
|Work Pressure:||0~6Bar||Operating Temperature:||0.0~50.0℃|
|Shell Material:||PEEK+Nickel||Protection Grade:||IP68|
Sewage Water Online Detecting Conductivity Probe,
RS485 Conductivity Probe,
100mS/Cm Conductivity Analyzers

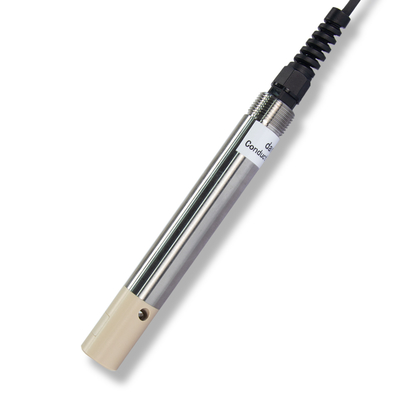

100mS/cm digital RS485 conductivity probe for swage water online detecting
Measuring Conductivity It can be used as a measure of water quality and is economical and low maintenance. Solutions with good water quality and few pollutants have low conductivity. Conductivity maintenance is far less than pH and minimum calibration for boiler feed water, reverse osmosis and desalination applications.
Since conductivity increases to some extent with increasing ion concentration in the process, we can use it to correlate the % concentration value of a solution such as an acid or base. Also, since conductivity is non-specific, % concentration can only be measured based on one of the chemicals at a time, not a mixture of chemicals.
There are two basic sensor types for measuring conductivity: contact and inductive (ring, electrodeless). When using a touch sensor, conductivity is measured by applying an alternating current to the sensor electrodes (which together affect the cell constant) immersed in a solution and measuring the resulting voltage. The solution acts as an electrical conductor between the sensor electrodes.
Please click the user manual of RS485 EC sensor here:
DEC351 Conductivity Sensor Manual.pdf

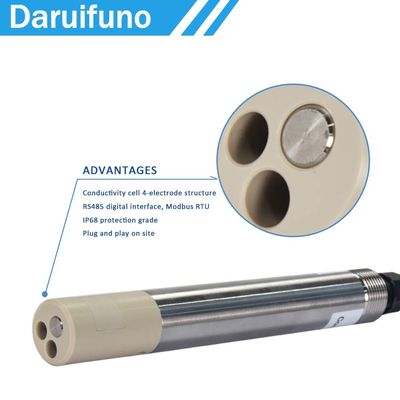

● Electrically isolated communication and power interface, strong anti-interference ability
● 4-electrode or 2-electrode structure, automatic range switching, easy to clean
● All-in-one package, can be used with online transmitters, DTU, and portable instruments
● RS485 interface, Modbus RTU, support access to standard industrial control system
● Protection grade IP68, can work continuously and stably under water for a long time
● Internal storage of calibration data, support offline calibration, plug and play on site
Water treatment monitoring
Drinking water,surface water,water quality analyze,ground water,ect.
Industrial process monitoring and dosing control
Chemical,petroleum,paper,food and medicine,PCB manufacturing,etc.
Q1. What is the wire length of the conductivity electrode?
A: The Conductivity electrode wire 1m by default, the length can be customed according to the exact demand in site.
Q2. What is the measuring principle of the conductivity sensor?
A: Conductivity cell 4-electrode
Q3. What is the advantage of digital conductivity sensor?
A: The digital conductivity sensor is conducive to long-distance signal transmission without serious signal attenuation. The sensor has RS485 interface, standard Modbus RTU communication protocol.
Q4. Can the conductivity sensor work under water?
A: Certainly. The protection grade of the conductivity sensor is IP68, it can work under water for a long time.
Q5. Can this conductivity controller measure the resistivity, TDS and salinity of water?
A: Our controller can measure the conductivity, resistivity, TDS and salinity of water. Because there is a relationship between these quantities.
