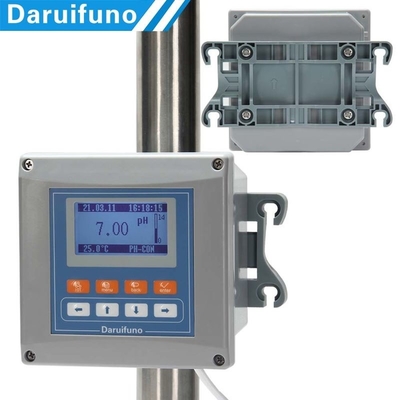

Date Record RS485 Interface PH Water Analyzer For Water Quality Monitoring

Date Record RS485 Interface PH Water Analyzer For Water Quality Monitoring
Date Record RS485 Interface PH Water Analyzer For Water Quality Monitoring Date Record RS485 Interface PH Water Analyzer For Water Quality Monitoring Date Record RS485 Interface PH Water Analyzer For Water Quality Monitoring Date Record RS485 Interface PH Water Analyzer For Water Quality Monitoring Date Record RS485 Interface PH Water Analyzer For Water Quality Monitoring

Large Image :  Date Record RS485 Interface PH Water Analyzer For Water Quality Monitoring

Product Details:
Place of Origin: China
Brand Name: Daruifuno
Certification: CE, ISO
Model Number: DUC2-PH-S-D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: 5-25 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 Sets per Month

Date Record RS485 Interface PH Water Analyzer For Water Quality Monitoring

Description
Product Name: PH Meter Measurement Range: -2~16pH
ORP Range: ±3000mV Temp. Range: -10~150℃ / 14~302℉
Relay Output: 2 Settable SPST Relays Analog Output: 2 Settable 0/4~20mA Current Output
Communication: Two-wire RS485 Interface; OTA: With
Configuration Info.: Power Off Protection Data Record: 14000 Historical Data
High Light:

RS485 PH Water Analyzer

,

Date Record PH Water Analyzer

,

RS485 Interface ph analyzers



Date Record RS485 Interface PH Water Analyzer For Water Quality Monitoring



DUC2-PH-S-D pH controllers all use imported chips and components, and the surface-mounted production process is adopted to ensure stable and reliable operation of the instrument;



Simultaneous display of multiple parameters: It can display pH value, temperature value, high alarm setting value, low alarm value at the same time Point alarm setting value, whether the meter is in high or low alarm state, and the current time.


All parameters are clear at a glance. The PH value corresponding to the unique 4-20 mA current output is reversible and can be set to any value, which can bring more special convenience to users. It adopts waterproof and gas-proof fully sealed shell, which can be used in very harsh environmental conditions, and the protection level reaches IP66.



Specification:

Model DUC2-PH-S-D
Software Version DRFN PH Analysis software V1.0
Sensor Input Compatible with all DRFN's PH Digital Sensors
Display Range PH -2~+16pH
ORP ±3000mV
TEMP -10~500℃ /14~932℉
Resolution PH 0.01pH
ORP 1mV
TEMP 0.1℃/ 0.1℉
Relay Control 2 settable SPST relays, max. Load 3A/250VAC
Analog Current 2 settable 0/4~20mA current outputs, max. Load 1000 ohms
Communication Method Two-wire RS485 interface; MODBUS RTU; JSON text data format
OTA ——
Display Screen

128*64 black-and-white graphic lattice LCD

adjustable backlight mode

adjustable display rate

Configuration Information Power off protection, parameters are retained indefinitely
Time/Data Record

Year/month/day/hour/min/second, record 14000 historical data

record interval can be set between 1~999 minutes

Maintenance Records Last 100 times
Protection Level IP66
Operating Environment 0~60℃,RH<95% ( no condensation)
Storage Environment -20~70℃,RH<55% ( no condensation, precision instruments)
Shell Material Enhanced ABS
Dimension 144*144*120 mm
Mounting Method Wall mounting, pipe clamping, panel (hole size 138*138 mm)
Electrical Interface The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm
Power Supply 100~240VAC
Power Consumption About 7W
Weight About 800g

More details please refer to catalog here:

Daruifuno Catalog.pdf



Brief introduction:

● Compatible with all DRFN digital PH/ORP sensors;
● Automatic temperature compensation;
● The working status of the sensor can be queried, including reading the serial number;
● Support a variety of installation methods;
● Time and historical data recording function;
● 3.2-inch large LCD screen;
● User-friendly Chinese and English language interface;
● Password can be set to prevent misoperation;
● 2 SPST multi-function and settable relays;
● Two 0/4~20mA active current loop outputs;
● RS485 interface, Modbus RTU communication protocol;
● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;​

Select the temperature display unit, "℃" or "℉" can be selected.

Date Record RS485 Interface PH Water Analyzer For Water Quality Monitoring 0

Aplication:
Water treatment monitoring

Drinking water,surface water,water quality analyze,ground water,ect.

Industrial process monitoring and dosing control
Chemical,petroleum,paper,food and medicine,PCB manufacturing,etc.

FAQ
Q1. Does the instrument have a self-diagnostic function and how does it prompt?

A: The pH meter has self-diagnosis function.When the instrument is in calibration and maintenance,it can diagnose the PH/ORP sensor,if there is improper operation or poor PH/ORP sensor characteristics, the screen makes an image display and advises the user to re-maintain or replace the sensor.


Q2. What are the special advantages of the pH instruments?
A: The instrument can not only compensate the temperature of the test sample by connecting the temperature sensor, but also self-check the working temperature of the instrument in real time. When the working temperature of the instrument changes, the instrument compensates the hardware change caused by the temperature drift. Make the test results more accurate, this is a patented technology.



Q3. Does the operation interface support customization?
Yes, our operation interface can be tailored to customers' needs.



Q4.Can our company's logo be added to your company's products?
Of course, we support OEM services for customers.



Q5.DO your controller with OTA function?

Yes. our DUC2-PH-S Controller with OTA function.



Q6.How long is the warranty period?
The company guarantees the instrument for one year (12 months) from the date of leaving the factory, and the consumables and wearing parts in the equipment are not covered by the warranty.
