Product Details:
|
Product Name: | Blue-Green Algae Meter | Display Range: | 0 - 3,000,000 Cells / M L |
---|---|---|---|
1cells / M L: | 2 Settable SPST Relays | Analog Current Output: | 2 Settable 0/4~20mA |
Communication Method: | Two-wire RS485 | Configuration Information: | Power Off Protection |
Time/Data Record: | Record 14000 Historical Data | Protection Level: | IP66 |
Shell Material: | Enhanced ABS | ||
Highlight: | Default WIFI Blue Green Algae Tester,Landscape Water Blue Green Algae Tester,ABS Shell Blue Green Algae Tester |

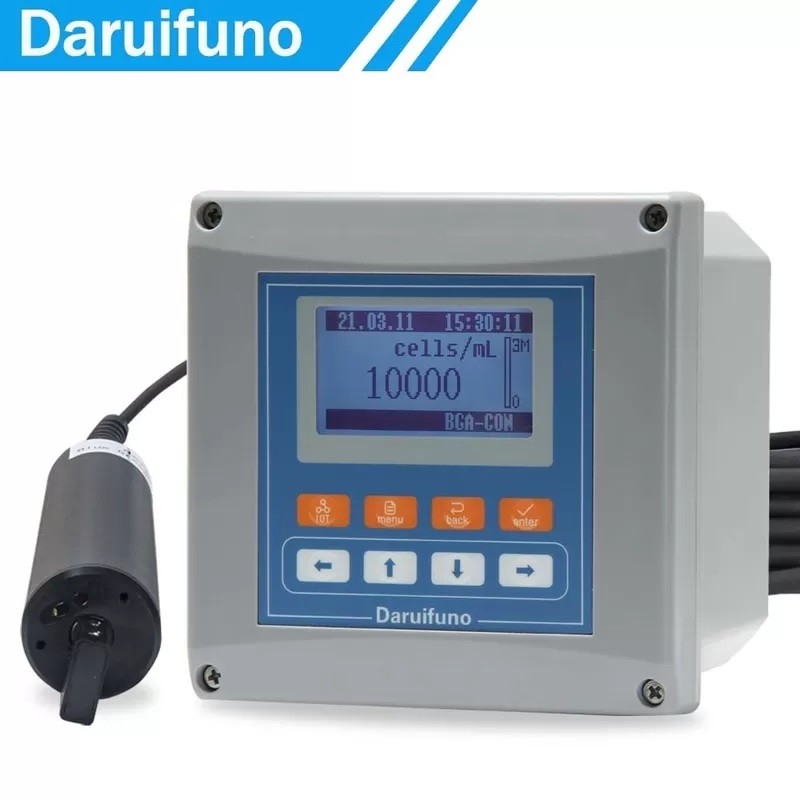

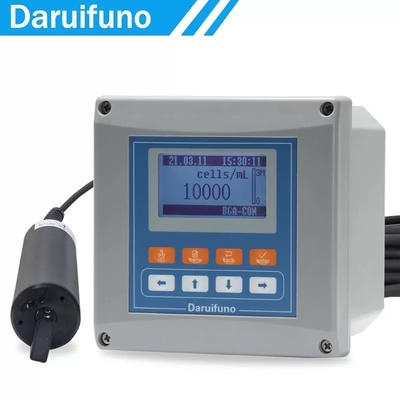

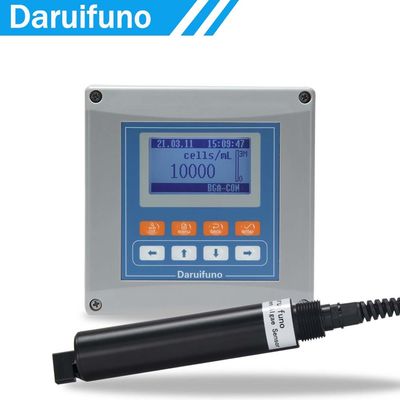

Blue-Green Algae Meter For Landscape Water Monitoring
Application field of blue-green algae controller: Widely used in field survey and research of water quality in oceans, rivers, reservoirs and catchments, tap water, etc. The early warning system of drinking water and aquaculture fishery can quickly learn the reproduction of toxic algae.
Specification:
Model | DUC2-BGA-H-D |
Software Version | DRFN BGA Analysis software V1.0 |
Sensor Input | Compatible with all DRFN's BGA Digital Sensors |
Display Range | 0-3,000,000 cells /mL |
Resolution | 1cells /mL |
Relay Control | 2 settable SPST relays with a maximum load of 3A/250VAC |
Analog Current Output | 2 settable 0/4~20mA current outputs with a maximum load of 1000Ω |
Communication Method |
Two-wire RS485 interface |
Display Screen |
128*64 black-and-white graphic lattice LCD |
Configuration Information | Power off protection, parameters are retained indefinitely |
Time/Data Record |
Year/month/day/hour/min/second, record 14000 historical data |
Maintenance Records | Last 100 times |
Protection Level | IP66 |
Operating Environment | 0~60℃,RH<95% ( no condensation) |
Storage Environment | -20~70℃, RH<55% ( no condensation, precision instruments) |
Shell Material | Enhanced ABS |

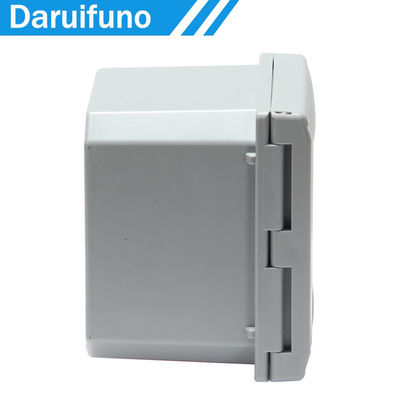

Dimension | 144*144*120 mm |

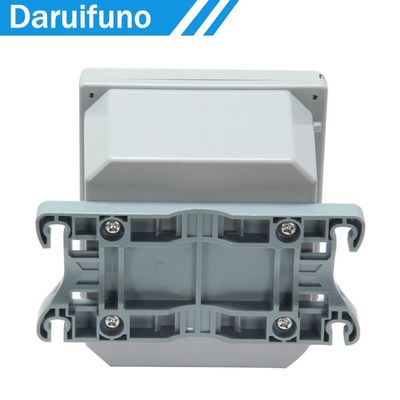

Mounting Method | Wall mounting, pipe clamping, panel installation (hole size 138*138 mm) |
Electrical Interface | The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm |
Power Supply |
18~36VDC |
Power Consumption | About 7W |
Weight | About 800g |
Please click the catalog of RS485 Blue-Green Algae controller here:
Daruifuno Catalog.pdf
Brief introduction:
● Compatible with all DRFN digital BGA sensors;
● Separately have a list of controller and sensor settings for quick and detailed parameter setting;
● The working status of the sensor can be queried, including reading the serial number;
● Support a variety of installation methods;
● Time and historical data recording function;
● 3.2-inch large LCD screen;
● User-friendly Chinese and English language interface;
● Password can be set to prevent misoperation;
● 2 SPST multi-function and settable relays;
● Two 0/4~20mA active current loop outputs;
● RS485 interface, Modbus RTU communication protocol;
● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;
Aplication:
◇ surface water
◇ source water
◇ aquaculture waters
◇ landscape water
◇ import of the waterworks
FAQ
1. Which sensors can be connected to your Blue-Green Algae controller?
A: The Blue-Green Algae meter can be compatible with DRFN digital Blue-Green Algae sensors.
2. How does your controller collect sensor data?
A: The connected sensor uploads the detected data in a special encrypted communication method to ensure that the controller can collect high-precision data more stably
3. Does the controller have an ambient temperature alarm function?
Our Blue-Green Algae controller has ambient temperature alarm function, Can detect the temperature around the instrument
4. Can customer's logo be added to the Blue-Green Algae controller system and cover?
Of course, we support OEM services for customers. Both the boot interface and the controller shell can be added to the customer's logo, but there is a minimum order quantity requirement.
5. How long is the warranty period?
The company guarantees the instrument for one year (12 months) from the date of shippment.
