Product Details:
|
| Product Name: | Blue-green Algae Sensor | Product Model: | BGA351 |
|---|---|---|---|
| Measuring Principle: | Fluorescence Method | Resolution: | 1 Cells/mL |
| Measuring Range: | 0-200.000 Cells/mL | Temperature Range: | 0~50℃ |
| Material: | POM (custom) | Protection Grade: | IP68 |
| Deepest Depth: | 10 Meters Underwater | Cable Length: | Default 10m(custom) |
| High Light: | Online Digital Blue Green Algae Sensor,Blue Green Algae Sensor IP68,Surface Water Blue Green Algae Tester |
||

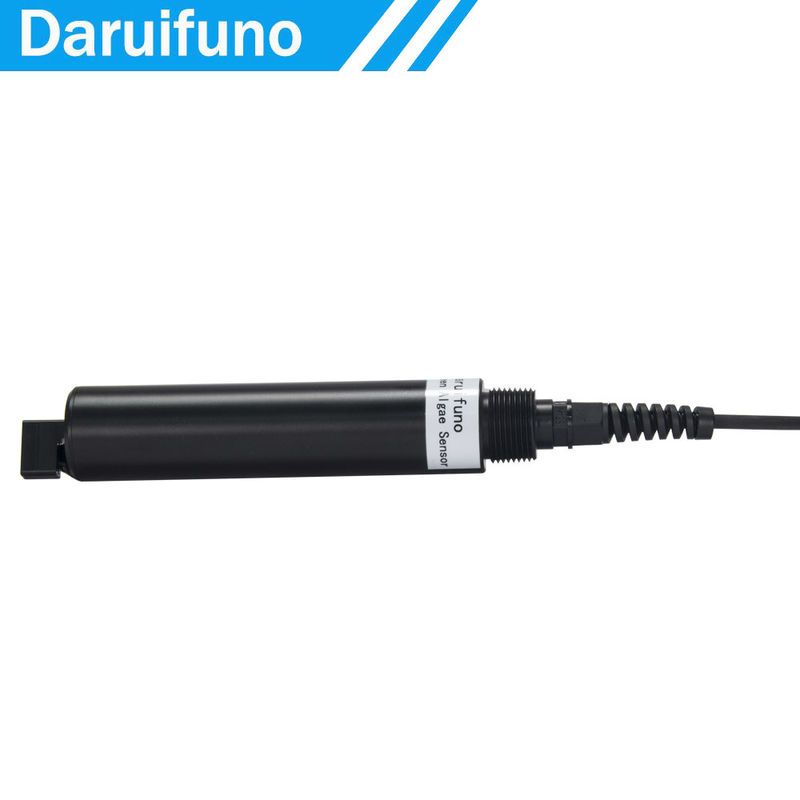

Reliable Supplier Online Digital Blue Green Algae Sensor For Surface Water
Reliable Supplier Blue Green Algae Sensor For Surface Water
The blue-green algae sensor developed and produced by delfino can monitor the blue-green algae in the water body and play an early warning role for the growth of algae.
It adopts the principle of fluorescence, which is more efficient and convenient than the traditional manual counting method, and can realize online monitoring.
specification
| Product Name | Blue-green algae sensor |
| Product Model | BGA351 |
| Measuring Principle | Fluorescence method |
| Measure Range | 0-200.000 cells/mL |
| The Detection Limit | 300 cells/mL |
| Resolution | 1 cells/mL |
| Linearity | R²>0.999 |
| Assembly | Investment |
| Temperature Range | 0°C ~50°C |
| Deepest depth | 10 meters underwater |
| Dimensions | Diameter 45mm, length 180mm |
| Sensor Interface | Support RS485, Modbus protocol |
| Power Information | DC 5~12V, current <50mA (when not cleaning) |
| Material | POM (customized) |
| Cable Length | Default 10m(custom) |
| Cleaning Brush | Have |
Advantages
Excellent repeatability and stability
Automatic cleaning brush to eliminate air bubbles and reduce contamination
Long maintenance period
RS485 communication, support Modbus protocol
Continuous monitoring, real-time control of water quality dynamics
Application
It is suitable for surface water, especially landscape water, source water and the import of the waterworks.
This sensor can be used with our controller DUC2-BGA.
| Product Name | Blue-green Algae Tester |
| Product Model | DUC2-BGA-H-D |
| Software Version | DRFN BGA analysis software V1.0 |
| Display Range | 0-3000000 cells/mL |
| Resolution | 1 cells /mL |
| Relay Control | 2 settable SPST relays max. load 3A/250VAC |
| Analog Current Output | 2 settable 0/4~20mA active current loop output max. load 1000Ω |
| Communication Method | Two-wire RS485 interface; MODBUS RTU; support JSON text data format |
| Display Screen | 128*64 LCD |
| Time History/Data Record | Year/month/day/hour/min/second, record 14000 historical data |
| Protection Level | IP66 |
| Operating Environment | 0～60℃, relative humidity less than 95% (no condensation) |
| Storage Environment | -20～70℃, relative humidity less than 55% (no condensation) |
| Shell Material | Enhanced ABS |
| Size | 144*144*120mm (hole size 138*138 mm) |
| Mounting Method | Wall mounting, pipe clamping, panel mounting |
| Power Supply | 18-36V DC |
| Weight | 800g |
| Power Consumption | 7W |
About Blue-green algae
Blue-green algae (BGA), also known as cyanobacteria, can range in colors from blues, greens, reds, and black. BGA can reduce nitrogen and carbon in water, but can also deplete dissolved oxygen when overabundant. Monitoring BGA is important because they pose a serious threat to water quality, ecosystem stability, surface drinking water supplies, and public health through toxin production and the large biomass produced in algal blooms.
