|Product Name:||PH Sensor||PH:||0~14pH 0.01pH|
|Working Pressure::||0~2Bar||Reference System:||Double Salt Bridge|
|Reference Reference Electrode:||Ag/AgCl||Temperature Unit:||Vacant|
|Glass Head:||Transparent Low Impedance||Cleaning:||Cleaning Interface(Optional)|
ABS Shell PH Sensor,
60 Degree pH Probe,
Analog Type PH Electrode

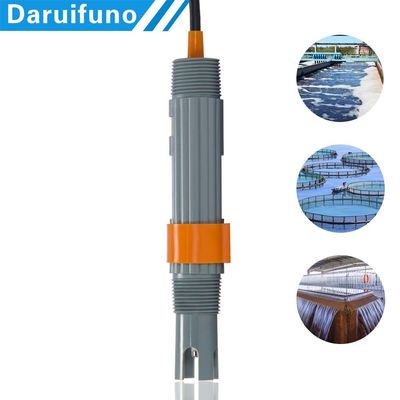

ABS Shell PH Sensor With Self-Cleaning Connector For Industrial Water
DRFN pH sensor:ASP300-VYD05 adapt the silver/silver chloride (Ag/AgCl) system.
Because silver is non-toxic to humans, Ag/AgCl sensor can also be used in medicine and food technology where poisonous mercury and thallium systems are prohibited.
Disposal is also less critical with Ag/AgCl than with thallium and mercury.
Ag/AgCl has a wide range of applications with respect to temperature (up to 140°C) and is therefore also suitable for sterilizable sensor. Most YSI electrodes feature a Ag/AgCl reference system.
Please click the pH sensor user manual here:
◆ pH composite electrode, the body adopts reinforced ABS plastic shell encapsulation, the structure is firm, there are installation threads at the beginning and the end, and the installation is convenient;
◆ The electrode is equipped with a protective cover with its own cleaning interface, and the user can quickly access the automatic cleaning system;
◆ The electrode is divided into 3 basic models according to the packaging method of the temperature unit;
◆ The indicator electrode adopts a low-impedance hemispherical glass head, which has high strength and is not easily broken;
◆ The reference adopts a large-area annular porous Teflon membrane, which has fast penetration speed, fast response, not easy to block, and easy to clean;
◆ The reference system is designed with double salt bridge, the reference electrode is Ag/AgCl, filled with KCL solid gel.
◆ Signal output: RS485 (Modbus / RTU protocol).
◆Easy to install: 3/4-inch NPT thread (pipe thread), easy to install in the pipeline and tank. The probe and display section can be separated and connected by acable.
◆ IP68 degree of protection.
Water treatment monitoring
Drinking water,surface water,water quality analyze,ground water,ect.
Industrial process monitoring and dosing control
Chemical,petroleum,paper,food and medicine,PCB manufacturing,etc.
1. What is themeasurement principle of this pH electrode?
A: The pH value potentiometric method uses the potential difference of glass electrodes for pH measurement.
2. How is this glass pH electrode composed?
A: The pH electrode is usually composed of an indicator electrode and a reference electrode.
3. How to judge the pH of the solution?
A: If the internal hydrogen ion concentration of the pH glass bulb is lower than the outside, the measured solution is recorded as acidic and the pH value is lower than 7; if the two are the same, the solution is neutral and the pH value is equal to 7; if the internal hydrogen ion concentration is higher than externally, the measured solution is alkaline and the pH value is higher than 7.
4. What is the wire length of the pH electrode?
A: The lead wire of this electrode is 5m by default, other lengths need to be customized, contact our customer service, the price will vary with the change of length.
