Product Details:
|
| Product Name: | PH ORP Controller | PH Range: | -2 ~ 16pH |
|---|---|---|---|
| ORP Range: | ± 2000mV | Temperature Range: | -10～150℃ / 14~302℉ |
| Resolution: | 0.01pH/1mV/0.1℃ | Analog Current Output: | A 0/4~20mA Active Current Loop Output |
| Relay Control: | 2 Settable Relays | Protection Grade: | IP66 |
| Operating Temperature: | 0~60℃ | Power Supply: | 100 ~ 240V AC |
| Power Consumption: | 3W | Weight: | 500g |
| High Light: | LCD Screen ph orp controller,3W ph orp transmitter,500g ph orp controller |
||

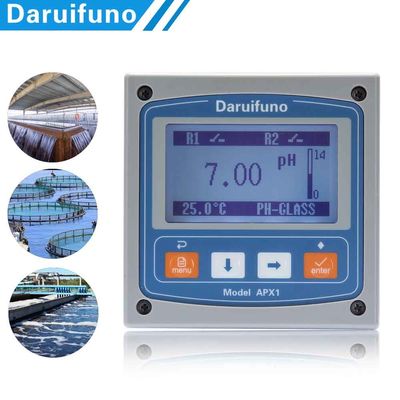

Large LCD Screen 0 ~ 60℃ Online PH ORP Controller With Power Off Protection
This pH ORP controller uses a glass electrode measurement method, which can be applied to various pH ORP monitoring and dosing control occasions.The pH ORP meter has 1 high-precision 0/4~20mA current output and 2 settable SPST multifunction relays. There is a shortcut key to perform necessary daily maintenance without entering the menu.
Product Parameters
|
Product Name |
PH ORP controller |
| Product Model | APX1-C1A |
| Software Version |
DRFN PH Analysis software V1.0 |
| PH Range |
-2～16pH |
| ORP Range | ± 2000mV |
| Temperature Range |
-10～150℃ /14~302℉ |
|
Resolution |
0.01pH / 1mV/ 0.1℃ |
|
Accuracy |
PH:±0.02 pH /ORP:±2 mV |
|
Stability |
0.05% of the measurement range per 24 hours, no accumulation |
|
Sensor Diagnosis |
Screen image display |
|
Analog Current Output |
1 settable 0/4~20mA active current loop output, maximum load 1000Ω |
|
Relay Control |
2 settable SPST relays, maximum load 3A / 250VAC |
|
Screen Display |
128 * 64 LCD |
| Protection Grade | IP66 |
|
Operating Environment |
0～60℃, RH＜ 95% |
|
Storage Environment |
-20～70℃, RH ＜ 55% |
| Power Supply | 100~240V AC |
| Power Consumption | 3 W |
|
Shell Material |
Enhanced ABS |
|
Size |
100×100×120 mm (hole size 92*92mm) |
| Weight | 500g |
|
Mounting Method |
Panel installation |
Product Advantages Of The PH ORP Controller
1. The system displays sensor measurement data and other dynamic data of the instrument in at least Chinese and English languages. According to the observation habit, the user can choose whether the displayed data is timely or smooth by adjusting the display rate.
2. The pH ORP controller can not only compensate the temperature of the test sample by connecting the temperature sensor but also self-check the working temperature of the instrument in real-time. When the working temperature of the instrument changes, the instrument compensates the hardware change caused by the temperature drift. Make the test results more accurate, this is a patented technology.
Applications Of The PH ORP Controller
Water treatment monitoring: Drinking water, surface water, water quality, groundwater, swimming pool, etc.
Industrial process monitoring and dosing control management: Chemical, petroleum, paper, food and medicine, electroplating, PCB manufacturing, etc.
If you are interested in the product PH ORP controller APX1-C1A, please contact us.
