Product Details:
|
| Product Name: | PH Probe Sensor | Product Model: | ASP400T-D10-A |
|---|---|---|---|
| Temperature Unit: | PT1000 | PH Range: | 0~14pH |
| Pressure Range: | 0 ~ 6bar | Working Temperature: | 0~100℃ |
| Material: | PPS+Glass+Teflong | Size: | Diameter 35mm/Total Length 260 Mm |
| High Light: | PT1000 ph probe sensor,PT1000 ph orp probe,PPS ph probe sensor |
||

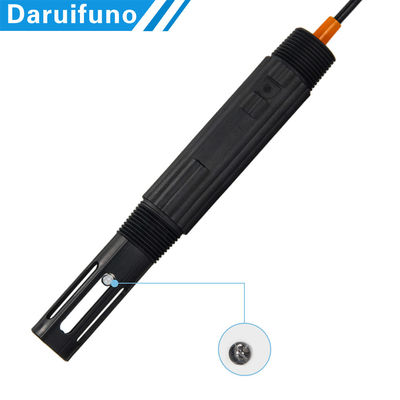

PT1000 PPS PH Probe Sensor PH Composite Electrode For Water Treatment
Introduction and advantages:
A pH electrode, the part of a pH meter that is in contact with the solution being measured, is a device used to determine the potential value of a specific ion of the solution. This composite electrode is packaged in a high-performance PPS plastic case. This material housing is resistant to high temperature and corrosion. This pH electrode is easy to install because the threads are installed at the beginning and end. It is also very strong in construction.
The pH sensor has a built-in high precision PT1000 temperature resistor for temperature detection and compensation.
The electrode is equipped with a protective sleeve with its own cleaning port so that the user can quickly access the automatic cleaning system. The indicator electrode is made of low-impedance hemispherical glass. It has high strength and is not easily broken.
Double salt bridge is designed for the reference system, the reference electrode is Ag/AgCl, reference packed saturated KCL+ excess KCL crystals. The reference of the pH probe uses a large-area annular porous Teflon diaphragm. It has the characteristics of fast penetration, fast response, not easy to block, and easy cleaning.
The pH sensor is equipped with standard 10m low noise leads.
Applications:
Municipal wastewater, chemical wastewater, dosing control, aquaculture, industrial water, waste treatment, chemical, petroleum, etc.
Technical parameters:
| Product Name | pH probe sensor |
| Product Model |
ASP400T-D10-A |
| pH Range | 0~14pH |
| Pressure Range | 0~6bar |
| Temperature Range | 0~100℃ |
|
Materials |
PPS+Glass+Teflon |
| Temperature Unit | PT1000 |
|
Mounting Size |
A British 1 NPT of the head and the tail for each install thread; Insert depth 100(including cleaning plug 115) |
|
Size |
Diameter 35mm/Total length 260 mm(include the cleaning cover) |
Suggestions:
pH electrode is a consumable product in electrochemistry, not the same as instrumentation, only when the user has good knowledge of necessary maintenance can the service life of the pH sensor be better extended.
If you want to know more about the analog signals pH probe sensor, please contact us.
