Product Details:
|
Product Name: | PH Meter | Communication: | RS485 |
---|---|---|---|
PH Range: | -2 ~ 16pH | ORP Range: | ± 2000mV |
Power Supply: | 100 ~ 240V | Accuracy: | ± 0.02 PH |
Relay Control: | 2 SPST Relays | Screen: | 3.2 Inch |
Enclosure: | IP66 | Weight: | 500g |
Highlight: | -2pH Online PH Meter,3.2 Inch screen digital ph meter,16pH Online PH Meter |

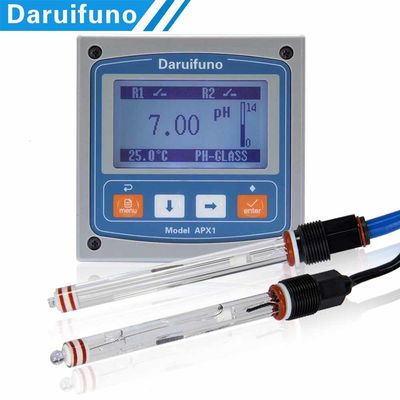

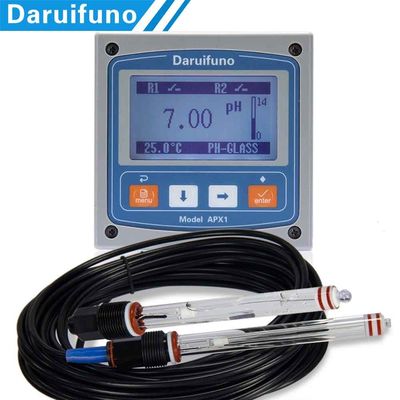

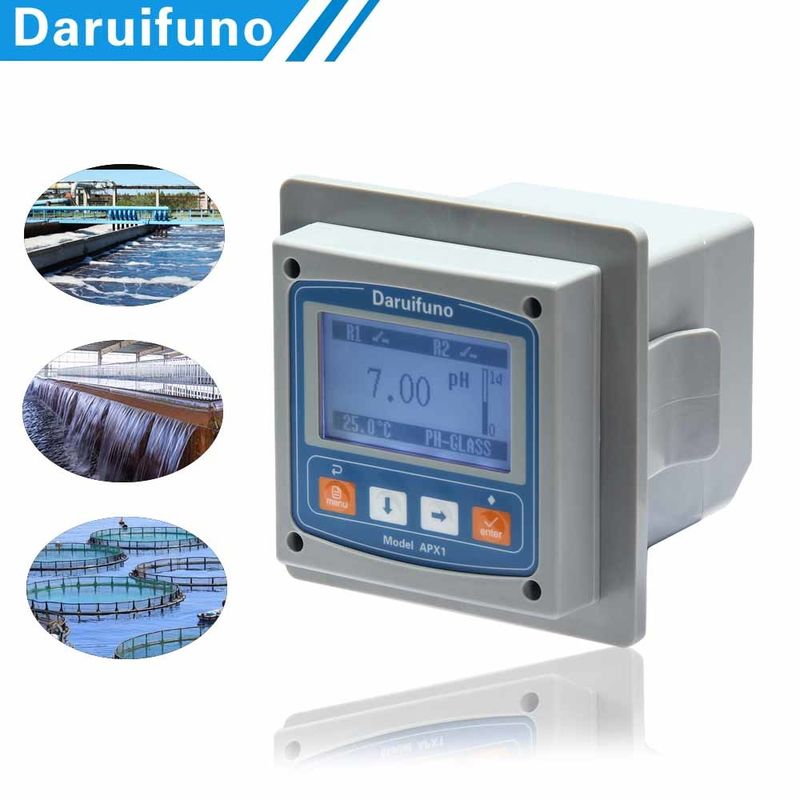

-2 ~ 16pH Online PH Meter MODBUS RTU Communication For Industrial Dosing Control
Introduction Of PH Meter
The online pH meter has been designed specifically to measure pH and ORP. In terms of shape, a compact and lightweight design has been achieved, suitable for panel mounting.
This pH/ORP meter can transmit analog and digital signals, or connect and control other devices through relays. The instrument has a two-wire RS485 interface, the communication protocol is standard MODBUS RTU.
Parameters Of PH Meter
Product Name |
PH Meter |
Product Model | APX1-C2A |
Software Version |
DRFN PH Analysis software V1.0 |
pH Range |
-2~16pH |
ORP Range | ± 2000mV |
Accuracy | PH:±0.02 pH /ORP:±2 mV |
Stability | 0.05% of the measurement range per 24 hours, no accumulation |
Resolution |
pH 0.01pH ORP 1mV |
Analog Current Output |
2 settable 0/4~20mA active current loop output |
Relay Control |
2 settable SPST relays |
Screen |
128 * 64 LCD |
Operating Environment |
0~60℃ |
Storage Environment |
-20~70℃ |
Dimension |
100×100×120 mm (hole size 92*92mm) |
Mounting Method |
Panel mount |
Weight | 500g |
Power Supply | 100~240V |
Power Consumption | 3W |
Advantages Of The PH Meter
The PH ORP analyzer is widely used for online monitoring pH/ORP in environment protection water treatment, pure water treatment, industrial process, aquaculture industry, etc.
The device has shortcut keys for ease of use, you can quickly perform maintenance without having to enter the menu, saving your time.
The pH meter can perform self-diagnostics to ensure proper operation. In case of improper operation or poor performance of the PH/ORP sensor, the screen performs image display, and the user is advised to re-maintain or replace the sensor. It is wise to choose our PH ORP analyzer.
Applications Of The PH Meter
Drinking water, surface water, water quality, groundwater, swimming pool, etc.
Chemical, petroleum, paper, food and medicine, electroplating, PCB manufacturing, etc.
If you are interested in the pH meter, please contact us. We have many other models to choose from.
