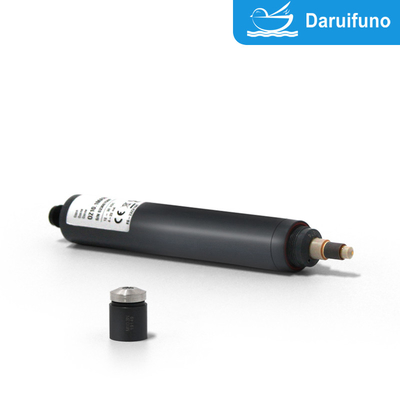

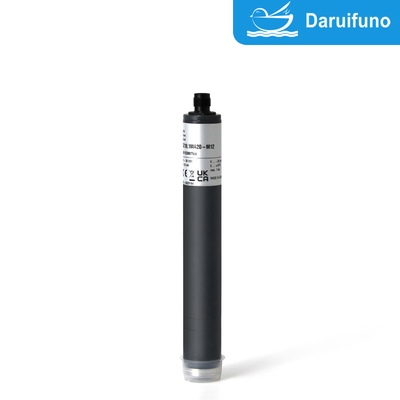

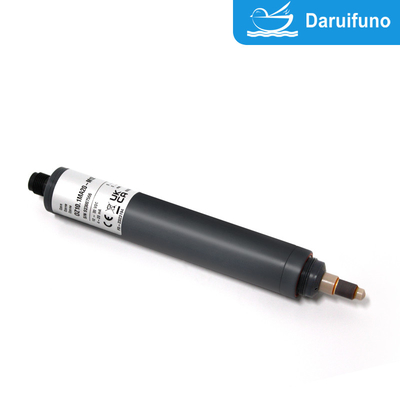

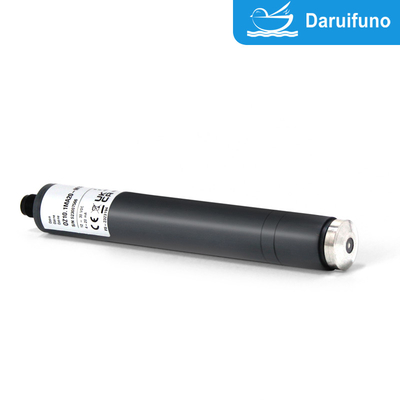

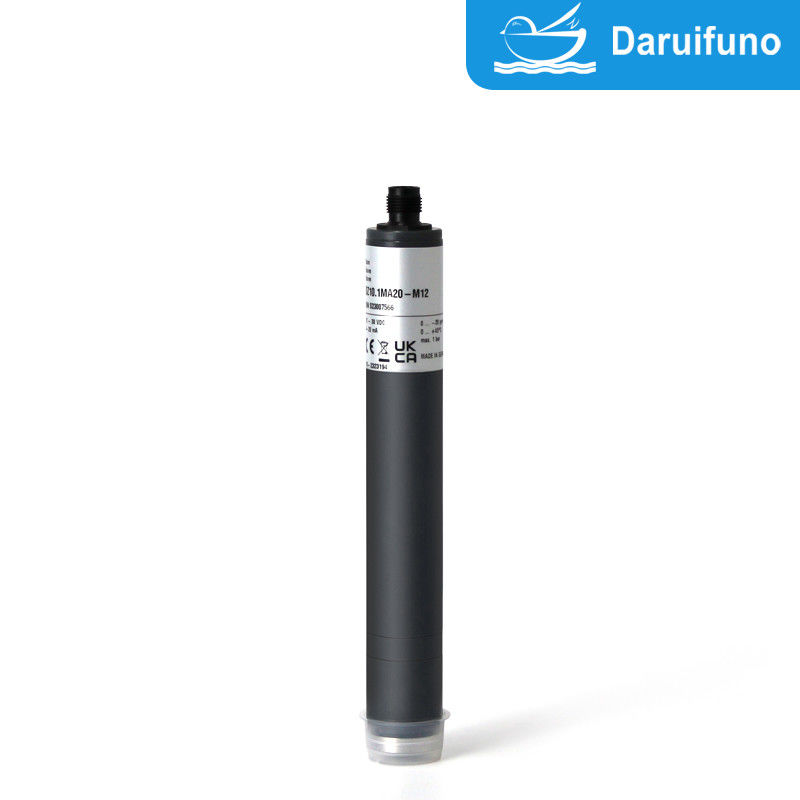

Two-Wire 4-20mA Two-Electrode Ozone Sensor For Drinking Water, Direct Drinking Water, Service Process Water

OZ1.2

Swimming pool water, drinking water, service water, process water
The water must not contain any surfactants (tensides)!

Electronic

Analog version: - voltage output

- not galvanically isolated electronics

- analog internal data processing

- output signal: analog (analog-out/analog)

Digital version:    - electronic is completely galvanically isolated

- digital internal data processing

- output signal: analog (analog-out/digital)

or

digital (digital-out/digital)

mA-version:        - current output analog

- not galvanically isolated electronics

- output signal: analog (analog-out/analog)

Information about the

measuring range

The actual slope of a sensor can vary production-related between 65% and 150% of the nominal slope

Note: With a slope > 100% the measuring range is reduced accordingly.

(Ex.: 150% slope → 67% of the specified measuring range)

Slope drift

At repeatability conditions

(25 °C, pH 7,2 in drinking water)

Working temperature

Measuring water temperature: 0 … +45 °C

(no ice crystals in measuring water)

Temperature

compensation

Automatically, by an integrated temperature sensor
Sudden temperature changes must be avoided

Max. allowed working pressure

Operation without retaining ring:

- 0.5 bar

- no pressure impulses and/or vibrations

Operation with retaining ring in Flow cell:

- 1.0 bar,

- no pressure impulses and/or vibrations (see option 1)

OZ1.2

Flow rate

(Incoming flow velocity)

Cl2: factor 0.03
ClO2: factor 0.7

Connection

mV version:

Modbus version:

4-20 mA version:

5-pole M12, plug-on flange

5-pole M12, plug-on flange

2-pole terminal

or

5-pole M12, plug-on flange

> 30 m are permissible

Maximum cable length depends on application

5-pole M12 plug-on flange: IP68

2-pole terminal with mA-hood: IP65

Size

Diameter:

Length: mV version

Modbus version 4-20 mA version

approx. 25 mm

approx. 190 mm (analog signal processing)

approx.. 205 mm (digital signal processing)

approx. 205 mm

approx. 220 mm (2-pole-terminal)

approx. 190 mm (5-pole-M12)

OZ1.2

Storage

Electrolyte: in original bottle protected from sunlight at +5 … +35 °C min. 1

year or until specified EXP-Date

Membrane cap: in original packing no limit at +5 … +40 °C

(used membrane caps can not be stored)

Maintenance

Regularly control of the measuring signal, min. once a week

The following specifications depend on the water quality:

Change of the membrane cap: once a year (depending on the water quality)

Change of the electrolyte: every 3 - 6 months

  Option 1:

Retaining ring

  - When operating with pressures >0.5 bar in flow cell

  - Dimensions retaining ring 29 x 23.4 x 2.5 mm, slitted, PETP

  - Different positions for groove selectable(on request)

Measuring range

in ppm

Resolution

in ppm

Output

Output

resistance

Nominal

slope

in mV/ppm

Voltage

supply

0…-2000 mV

1 kΩ

±5 - ±15 VDC

10 mA

5-pole M12 plug-on flange

Function of wires:

PIN1: measuring signal

PIN2: +U

PIN3: -U

PIN4: signal GND

PIN5: n. c.

0…+2000 mV

1 kΩ

10 - 30 VDC

10 mA

5-pole M12 plug-on flange

Function of wires:

PIN1: measuring signal

PIN2: +U

PIN3: power GND

PIN4: signal GND

PIN5: n. c.

Measuring

range

in ppm

Resolution

in ppm

Output

Output resistance

Nominal

Slope

in mV/ppm

analog

0…-2 V

(max. -2.5 V)

1 kΩ

9-30 VDC

approx. 20-56 mA

5-pole M12 plug-on

flange

Function of wires:

PIN1: measuring signal

PIN2: +U

PIN3: power GND

PIN4: signal GND

PIN5: n. c.

analog

0…+2 V

(max. +2.5 V)

1 kΩ
