Product Details:
|
| Product Name: | PH Sensor | Sensor Thread: | Without Thread |
|---|---|---|---|
| Electrical Isolation: | Electrical Isolated Communication And Power Interfaces | Measuring Range: | 0~14pH: 0~80℃ |
| Indicator Electrode: | Blue Low Impedance Hemispherical Glass Membrane | Reference System: | Ag/AgCl Reference Electrode, Double Salt Bridge, KCl Gel |
| Electrode Material: | Glass Annular Ceramic Hole | Working Pressure: | 0-4Bar |
| Working Temp: | 0~100℃ | Temperature Unit: | PT100, PT1000, NTC10K Customized |
| Installation Dimension: | Anti-twist Cap | Wire: | Integrated 3 Meters |
| High Light: | Real Time Monitoring Analog PH Sensor,Municipal Sewage Environment pH ORP Sensor,Pure Water pH ORP Sensor |
||

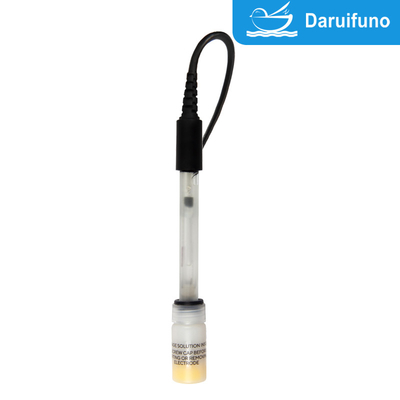

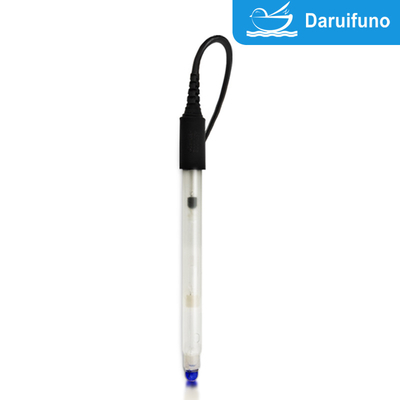

Analog PH Sensor For 0~100℃ Pure Water Municipal Sewage Environment
The ASP100 series pH sensor produced by Daruifuno can be used in municipal sewage, swimming pools, and various pure water,The ASP100 pH sensor offers the following advantages:
Strong corrosion resistance: Sewage treatment usually contains various chemicals and pollutants, so the pH sensor needs to be corrosion-resistant and can work stably in this environment for a long time without being affected by corrosion.
Accuracy and Stability: For wastewater treatment, accurate pH measurement is critical. Sensors need to have high accuracy and stability to ensure accurate monitoring of wastewater pH and to maintain performance over long periods of use.
Easy to maintain and clean: Since the environment may not be clean, sensors need to be designed to be easy to clean and maintain to ensure accuracy and long-term stability.
Adaptability: During the sewage treatment process, changes in temperature, pressure and chemical substances may affect the measurement of pH value. An excellent pH sensor needs to have a certain degree of temperature compensation and stability to adapt to these changes.
Real-time monitoring and control: In municipal sewage treatment, pH sensors are not only used to monitor pH values, but may also be integrated with automatic control systems to achieve real-time monitoring and adjustment to ensure that the pH is within the appropriate range during the treatment process.
Compliance and reliability: Sewage treatment belongs to the field of public health and environmental protection, so pH sensors need to comply with relevant regulatory standards and must be reliable and able to operate stably to ensure that the sewage treatment process meets the prescribed standards.
In general, the ASP100 series pH electrode produced by Daruifuno needs to have high corrosion resistance, accurate and stable measurement capabilities, easy maintenance and cleaning, strong adaptability, and the ability to achieve real-time monitoring and control. These features ensure the effectiveness and reliability of the sensor in various industrial processes such as sewage treatment.
Specification:
| Model | ASP100E | ASP101E | ASR100E |
| Measuring Object | PH | PH | ORP |
| Measuring Range | 0~14pH | ±2000mV | |
| Indicator Electrode | Blue low impedance hemispherical glass membrane | Platinum | |
| Reference System | Ag/AgCl reference electrode, double salt bridge, KCl gel | ||
| Electrode Material |
Glass annular ceramic hole |
Glass Dot-shaped ceramic hole |
Glass annular ceramic hole |
| Working Pressure |
Medium and low temp environment: max. 0~4bar High temp environment: 0~2bar |
||
| Working Temp |
Medium and low temp environment: 0~80℃, continuously working High temp environment: 80~100℃, continuously working for less than 30 mins |
||
| Sample Flow Rate | 0.5 m/s ≥ flow velocity ≥ 0.001 m/s | ||
| Zero (E0) pH | pH 6.86 buffer solution: 6.86 ± 0.3 pH | ±20mV | |
| SLOP% | pH 4.01 pH 6.86 buffer solution＞95% | ＞95% | |
| Temperature Unit | PT100, PT1000, NTC10K customized | ||
| Dimension | Standard: diameter 12mm/Length 120mm (customized) | ||
| Installation Dimension | Anti-twist cap or PG13.5 | ||
| Tail Lead | Integral or split | ||
Features＆ Advantages
Aplication:
Water treatment and sewage treatment plants: ASP100 pH sensor is widely used in water treatment and sewage treatment plants. They monitor and control the pH of the water during the treatment process to ensure that the water quality meets standards.
Industrial production: In industrial production, especially in the chemical, pharmaceutical and food processing fields, the ASP100 pH probe is used to monitor the pH of liquids during the production process to control reaction conditions, product quality and process stability.
Environmental monitoring: ASP100 pH electrode plays an important role in environmental monitoring, especially for the monitoring of natural water bodies, such as lakes, rivers and groundwater. They help assess the health of water bodies and environmental quality.
Water plant aquaculture industry monitoring: In agriculture, ASP100 pH sensor is used to measure the pH in ponds, which is crucial for the water plant aquaculture industry.
Aquariums and swimming pools: In aquariums and swimming pools, the ASP100 pH probe is used to monitor water quality to ensure the water is safe for flora and fauna or swimmers.
Scientific research laboratories: ASP100 pH electrode is also commonly used in scientific research laboratories for pH measurement in various studies and experiments.
Overall, the analog ASP100 pH sensor is suitable for a wide range of applications that require accurate monitoring and control of liquid pH. It plays an important role in ensuring the stability of the production process, water quality safety, and environmental protection.
