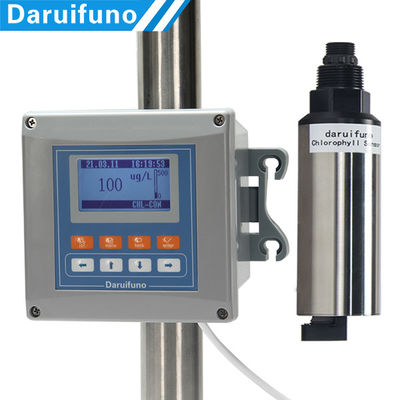

Fluorescence OTA Water Quality Digital Chlorophyll Tester

Water Quality Digital Chlorophyll Analyzer Fluorescence With OTA Technology

Brief Introduction

1. Chlorophyll is the main lipid-soluble pigment for photosynthesis in plants and it plays a central role in light absorption for photosynthesis. Chlorophyll is contained in all photosynthetic organs. Also, chlorophyll a is one of the criteria used to measure the water quality and evaluate the eutrophication level of water bodies.

2. The DUC chlorophyll analyzer is a single-parameter controller used for the measurement of chlorophyll in water. Each analyzer will be pre-installed with a set of embedded software to adapt to different chlorophyll digital sensors.

3. The CHL meter is equipped with OTA download technology, using wifi; GSM; CDMA, and other wireless technologies to realize remote software upgrades, fault diagnosis, and assistance in instrument parameter configuration for customers. It not only reduces the workload of on-site service of the instrument but also minimizes the time that users wait for service.

4. 128*64 large-screen LCD display, Chinese and English language display, rich content, to meet the different needs of users.

5. This CHL analyzer can simultaneously meet the needs of users for detection, control, and remote data transmission, with rich output settings.

6. It is equipped with a two-wire RS485 interface, the communication protocol is MODBUS RTU, and supports JSON text data format.

Advantages Of The Chlorophyll Analyzer

• Through the DUC2-CHL series general-purpose controller, users can query related information such as the working status and serial number of the connected sensor.

• The CHL controller has a clock function and a historical data recording function, which can record 14,000 historical data, and the recording interval can be set between 1 and 999 minutes.

• Its menu password can be set to facilitate user's data confidentiality.

• The shell material of the instrument is reinforced ABS, the shell is strong, corrosion-resistant, and wear-resistant.

• The user can choose a variety of installation methods such as wall-mounted installation, pipe clamping installation, and panel installation.

• The CHL meter has power-off protection configuration, and the parameters can be kept indefinitely.

Technical Parameters

Applications Of The Chlorophyll Analyzer

1. For online chlorophyll monitoring of water plant imports, drinking water sources, aquaculture, etc.

2. Online monitoring of chlorophyll in different water bodies such as surface water, landscape water, and seawater.

More Pictures About The Chlorophyll Analyzer
