Product Details:
|
| Product Name: | COD Analyzer | Product Model: | DUC2-COD-S |
|---|---|---|---|
| Software Version: | DRFN COD Analysis Software V1.0 | Resolution: | 0.01 Mg/L |
| Display Screen: | 128*64 LCD | Communication Protocol: | MODBUS RTU |
| Housing Material: | Enhanced ABS | Protection Level: | IP66 |
| Size: | 144*144*120mm | Power Supply: | 100~240V AC Or 18~36V DC |
| Power Consumption: | 12W | Weight: | 800g |
| High Light: | RS485 COD Analyzers,IP66 COD meter,UV254nm COD Analyzers |
||
RS485 WIFI Digital COD Analyzer UV254nm Sensor For Measurement Of Water COD
Brief Introduction Of The COD Analyzer
The Daruifuno's COD analyzer includes a controller and a sensor, the chemical oxygen demand controller is specially designed for the measurement of the COD in water.
The principle of the matched COD sensor is Spectral Absorption Coefficient (SAC), by measuring the degree of absorption of ultraviolet light with a wavelength of 254 nm by organic substances, the substitution of organic substances in water can be detected.
Advantages Of The COD Analyzer
Menu password of the COD controller can be set to facilitate user's data confidentiality;
The COD meter has time and historical data recording functions to meet higher data management requirements;
The COD instrument has a 3.2-inch display screen and it
For the COD sensor UV351, it can measure COD, TOC, turbidity, temperature and other parameters; consumables are not required during the measurement process;
The sensor can automatically eliminate the interference of suspended solids and compensate for the interference of turbidity.
Applications Of The COD Analyzer
Technical Parameters
| Product Name |
COD analyzer |
| Product Model |
DUC2-COD-S |
| Software Version |
DRFN COD analysis software V1.0 |
|
Display Range |
0-1000 mg/L |
|
Resolution |
0.01 mg/L |
|
Relay Control |
2 settable SPST relays max. load 3A/250VAC |
|
Analog Current Output |
2 settable 0/4~20mA active current loop output max. load 1000Ω |
|
Communication Method |
Two-wire RS485 interface; MODBUS RTU; support JSON text data format |
|
Display Screen |
128*64 LCD |
|
Time History/Data Record |
Year/month/day/hour/min/second, record 14000 historical data |
|
Protection Level |
IP66 |
|
Operating Environment |
0～60℃, relative humidity less than 95% (no condensation) |
|
Storage Environment |
-20～70℃, relative humidity less than 55% (no condensation) |
|
Shell Material |
Enhanced ABS |
|
Size |
144*144*120mm (hole size 138*138 mm) |
|

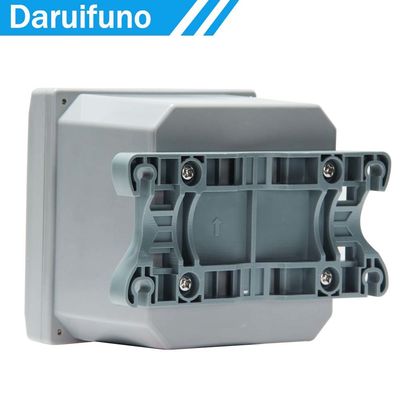

Mounting Method |
Wall mounting, pipe clamping, panel mounting |
|
Power Supply |
18 ~ 36V DC or 100~240V AC |
|
Weight |
800g |
|
Power Consumption |
12W |
| Product Name | Chemical Oxygen Demand (COD) Sensor |
| Product Model | CODuv351 |
| Measuring Principle | UV254 ultraviolet absorption method |
| Measuring Range(COD) | 0.75~370mg/L |
| Resolution(COD) | 0.01mg/L |
| Accuracy(COD) | ±2% or ±2.5mg/L, take the larger one |
| Measuring Range(TOC) | 0.3 ~150mg/L |
| Accuracy(TOC) | ±2% or ±2.5mg/L, take the larger one |
| Resolution(TOC) | 0.1mg/L |
| Measuring Range(TU) | 0-300 NTU |
| Accuracy(TU) | 3% or 0.2NTU, take the larger one |
| Resolution(TU) | 0.1NTU |
| Operating Temperature | +5 ~ 45℃ |
| Calibration | 2-point calibration |
| Protection Grade | IP68 |
| Working Pressure | 1Bar |
| Response Time | T90 max. 10s |
| Flow Rate | < 3 m/s |
| Cleaning Method | Rubber scraper |
| Power | 12V 15mA (normal), 200mA (maximum, when cleaning) |
| Output | RS485, Modbus RTU protocol |
| Dimension | Diameter 50mm, length 215mm |
| Cable Length | 10m(custom) |
| Shell Material | POM and 316L |
